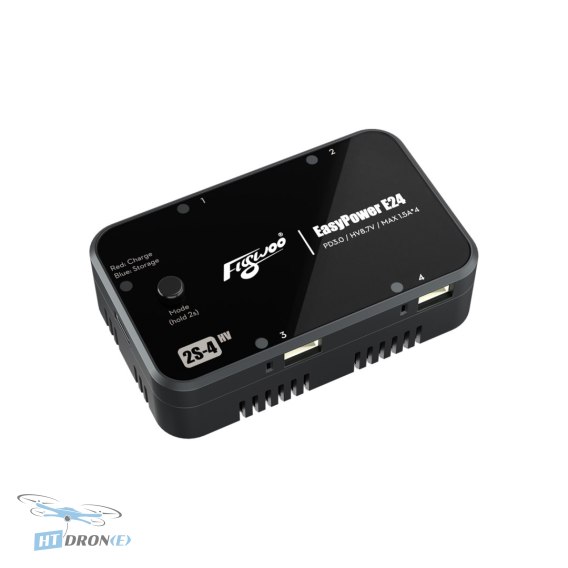

FLYWOO EasyPower 2S E24 HV LiPo Battery Charger | 4x 1.5A Charging | USB-C PD 3.0

Introduction

The FLYWOO EasyPower E24 is a highly efficient and compact charger designed specifically for 2S HV LiPo batteries. It's the ideal power solution for FPV drone enthusiasts who demand fast, reliable charging and convenient battery management. Whether you're preparing for a race, a long flight session, or need to store your batteries safely, the EasyPower E24 simplifies the process with its user-friendly design and advanced features.

Key Advantages

• Dual Charging Modes: Easily switch between standard 4.35V/cell charging and a 3.85V/cell storage mode with a single button, ensuring optimal battery health for both active use and long-term storage.
• Fast PD 3.0 Charging: Leverages USB-C Power Delivery 3.0 and GaN technology, supporting 65W input for up to 1.5A charging per channel, significantly reducing charge times by approximately 30%.
• Plug-and-Play Simplicity: Features automatic charging initiation upon battery connection, eliminating the need for complex setup or configuration.
• Clear LED Status Indicators: Intuitive tricolor LEDs provide real-time feedback: Red for charging, Blue for storage mode, and Green for fully charged.
• Compact and Portable Design: Its small, lightweight construction makes it incredibly easy to transport and use anywhere, perfect for travel and field charging.
• Multi-Layer Safety Protection: Built-in safeguards including over-voltage, over-current, over-temperature protection, and intelligent temperature control ensure safe and reliable operation.

Technical Specifications

• Product Model: E24
• Input Interface: USB Type-C
• Input Voltage Range: 9V-20V
• Minimum Input Power: 65W
• Max Charging Current: 1.5A x 4 channels
• Battery Connector: JST-XH (Balance)
• Supported Battery Type: LiHV 4.35V
• Charging Protocol: PD3.0
• Power Connector Type: XT30 (for power input)
• Supported Battery Voltage: 2S
• Dimensions: 88 x 54 x 26.5 mm

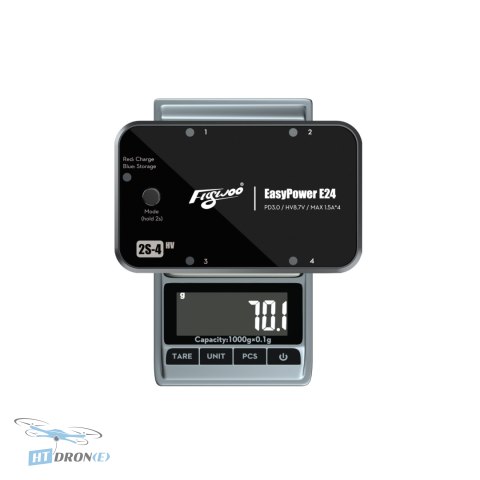

• Weight: 70g

Applications

This charger is perfectly suited for FPV racing drones, freestyle drones, and other small UAVs utilizing 2S LiHV batteries. Its portability and fast charging capabilities make it ideal for pilots who attend events, travel frequently, or simply want efficient battery maintenance.

Compatibility

Compatible with 2S LiHV batteries (up to 4.35V/cell). Requires a USB-C PD 3.0 power source capable of at least 65W output. Features JST-XH balance connectors and XT30 power input.

FAQ

What type of batteries can the FLYWOO EasyPower 2S E24 charger handle?

The FLYWOO EasyPower 2S E24 is designed to charge 2S LiHV (Lithium High Voltage) batteries, supporting a charging voltage of up to 4.35V per cell. It also features a storage mode at 3.85V per cell.

How fast can I charge my batteries with the EasyPower E24?

This charger supports fast charging with up to 1.5A per channel, utilizing USB-C PD 3.0 input (minimum 65W required). This significantly reduces charging time compared to standard chargers, offering approximately a 30% improvement.

What power source is needed for the FLYWOO EasyPower E24 charger?

To achieve optimal charging speeds, the charger requires a USB-C Power Delivery 3.0 power source with a minimum output of 65W. This ensures each of the four channels can deliver the full 1.5A.

Is the FLYWOO EasyPower E24 charger portable and easy to use?

Yes, the EasyPower E24 features a compact and lightweight design, making it highly portable for travel and field use. Its plug-and-play operation means it starts charging automatically upon connection, with clear LED indicators for status.

Where can I buy the FLYWOO EasyPower 2S E24 charger with fast delivery?

You can order the FLYWOO EasyPower 2S E24 charger from HTDRONE. We offer fast shipping within Poland and reliable delivery options to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
