FLYWOO GOKU F405 HD 1s 12A AIO FC with TCXO ELRS for Micro FPV Drones

Introduction

Introducing the FLYWOO GOKU F405 HD 1s 12A AIO flight controller with TCXO ELRS - a revolutionary all-in-one solution specifically designed for building compact 1S HD FPV micro drones. This advanced flight controller, based on the efficient STM32F405BGA processor, significantly simplifies drone construction by integrating a 4-in-1 ESC, dual BEC, and a built-in ELRS receiver with TCXO technology. It provides reliable and stable performance, perfect for both indoor training sessions and exciting outdoor micro drone racing.

Key advantages

• Powerful STM32F405BGA processor ensures lightning-fast and responsive flight control.
• Integrated TCXO ELRS receiver with technology for stable signal and enhanced interference resistance.
• All-in-one (AIO) design combines flight controller, ESC, and receiver, reducing wiring and drone weight.
• Dual BEC output (5V/3A and 9V/2A) provides stable voltage for digital HD FPV systems and other components.
• Direct plug-and-play support for DJI O4 and O4 Pro video transmitters, eliminating the need for extra soldering.
• Solderless motor connectors speed up and simplify assembly.
• USB-C port for convenient configuration and firmware updates.
• Supports external 'black box' or GPS modules for expanded functionality.

Technical specifications

• Flight Controller (FC)
  • MCU: STM32F405BGA
  • IMU: ICM42688P
  • Barometer: SPL06
  • Receiver: Flywoo TCXO EL24E 2.4GHz ELRS (3.x.x)
  • Blackbox: No built-in (supports external module)
  • BEC Output: 5V / 3A and 9V / 2A

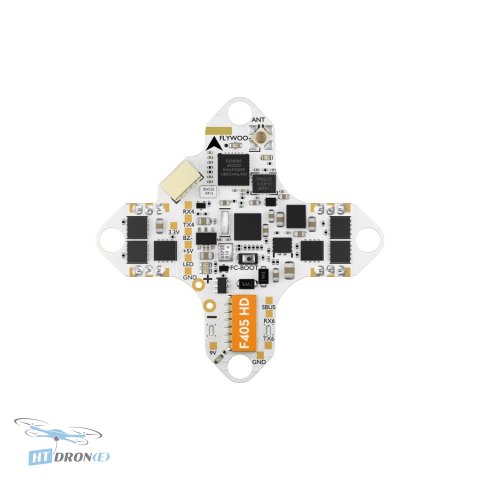

  • UART Ports: UART2, UART3 (ELRS), UART4, UART5 (SBUS), UART6
  • Supported Protocols: CRSF, SBUS, iBus, Spektrum
  • Betaflight Firmware: FLYWOOF405S_AIO
  • INAV Firmware: FLYWOOF405HD

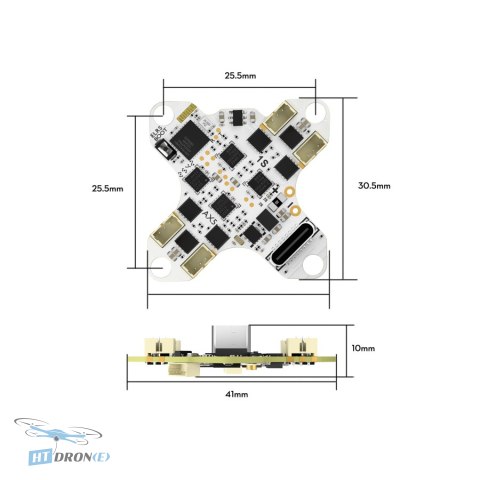

  • Dimensions: 30.5 x 30.5 x 10 mm
  • Mounting Holes: 25.5 x 25.5 mm

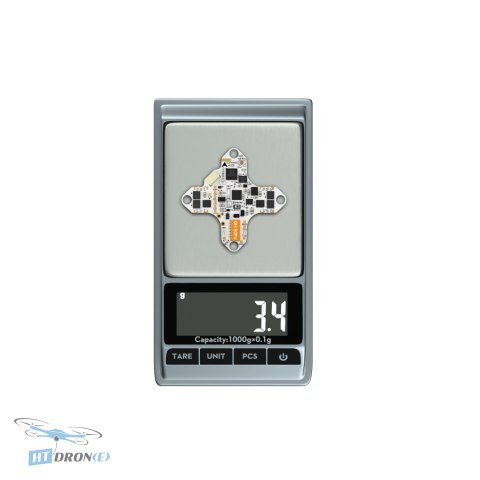

  • Weight: 3.4 g
• ESC
  • ESC Type: 4-in-1 Brushless ESC
  • Input Voltage: 1S LiPo
  • Continuous Current: 12 A
  • Peak Current: 15 A
  • ESC Firmware: Bluejay (O_H_5_48KHz_V0.19.hex)
  • Digital Protocol: DShot300 / DShot600
  • Motor Connector: JST1.25
  • Battery Connector: A30

Applications

This flight controller is ideal for building agile and responsive FPV micro drones. It's perfect for racing, indoor acrobatics (indoor FPV), and as a learning platform for beginner and advanced FPV racing pilots. With DJI O4 support, it's also a great choice for high-definition aerial filming drones.

Compatibility

The controller is compatible with 1S LiPo batteries. It features JST1.25 motor connectors and an A30 battery connector. It supports a wide range of protocols, including CRSF, SBUS, iBus, and Spektrum. It is compatible with DJI O4 and O4 Pro video transmitters. The mounting pattern is 25.5 x 25.5 mm, fitting most popular FPV micro frames.

FAQ

What is the main purpose of the FLYWOO GOKU F405 HD 1s 12A AIO flight controller?

The main purpose of this flight controller is to provide an integrated and efficient solution for building 1S powered FPV micro drones. It combines key components like the flight controller, ESC, and receiver, simplifying assembly and reducing drone weight.

Who is the FLYWOO GOKU F405 HD 1s 12A with ELRS flight controller designed for?

It is designed for FPV micro drone enthusiasts and builders looking for a compact and powerful solution for their projects. It's ideal for constructing agile indoor FPV machines and for outdoor micro drone racing.

What are the key benefits of TCXO and ELRS technology in this controller?

TCXO technology offers higher signal stability and timing precision, resulting in smoother flight and better responsiveness. The integrated ELRS receiver ensures reliable, low-latency radio communication, which is crucial for dynamic FPV flights.

Is the FLYWOO GOKU F405 HD 1s 12A AIO flight controller compatible with the DJI O4 system?

Yes, this flight controller offers direct plug-and-play support for DJI O4 and O4 Pro video transmitters, eliminating the need for extra soldering and simplifying integration with digital HD FPV systems.

Where can I buy the FLYWOO GOKU F405 HD 1s 12A with ELRS and get delivery to Poland or Ukraine?

You can buy the FLYWOO GOKU F405 HD 1s 12A flight controller at the HTDRONE store (ht-dron.pl). We offer fast delivery within Poland and reliable shipping to Ukraine via Nova Poshta (Нова Пошта).
