FLYWOO GOKU F405 HD SE 3-4S 20A AIO FC Flight Controller for Micro FPV Drones

Introduction

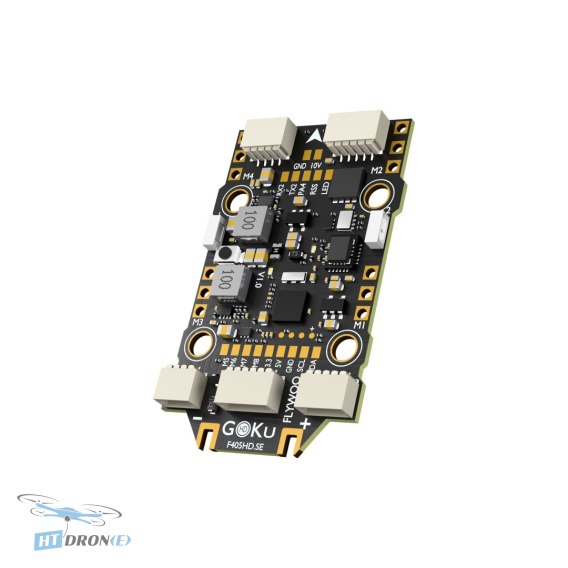

The Flywoo GOKU F405 HD SE 3-4S 20A (MPU6000) AIO flight controller is an advanced, integrated solution designed for builders of compact FPV drones ranging from 2 to 2.5 inches. It combines the processing power of the STM32F405 processor with the reliable MPU6000 gyroscope and a high-performance 4-in-1 ESC with a 20A continuous current rating. This is the ideal choice for those looking to build a lightweight, agile, and responsive FPV drone, especially when utilizing digital HD video transmission systems like the DJI O4 Air Unit.

Key advantages

• High Performance: STM32F405 processor and MPU6000 gyroscope ensure smooth and precise flight control.
• All-in-One Design: Integration of FC and ESC reduces wiring complexity and simplifies assembly.
• HD System Ready: Optimized for digital HD FPV systems, including DJI O4 Air Unit, with dedicated ports and dual BEC.
• Simplified Assembly: Plug-and-play ports for VTX, receiver, GPS, and accessories speed up drone construction.
• Compact and Lightweight: Perfectly suited for 2" and 2.5" micro FPV drones, minimizing overall weight.
• Advanced Data Logging: Built-in 8MB black box memory facilitates flight analysis and tuning.
• Convenient USB-C Port: Located on the bottom for easy firmware updates.
• Reliability: Robust, multi-layer PCB design ensures long-term operation in demanding conditions.

Technical specifications

• Flight Controller (FC):
• MCU: STM32F405BGA
• Gyroscope: MPU6000
• Blackbox Memory: 8 MB
• BEC Output: 10V / 2A + 5V / 2A (dual, independent)

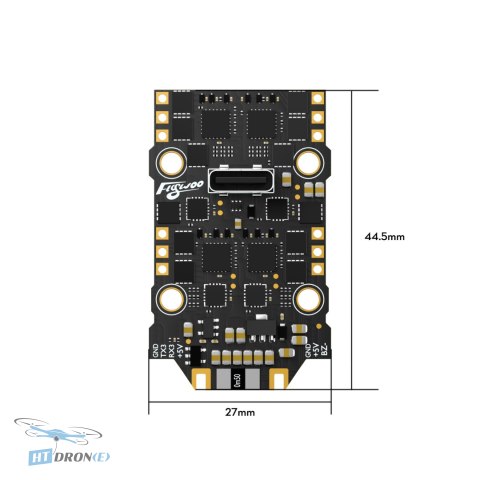

• Mounting Holes: 20x20 mm
• Interfaces: HD VTX, Receiver, GPS, Bluetooth, Buzzer

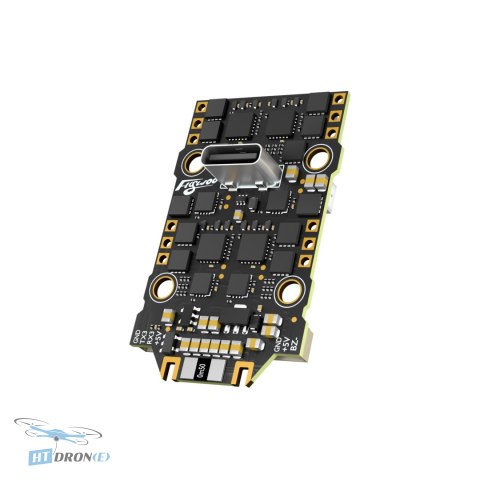

• USB Port: Type C (bottom mount)
• FC Firmware: Betaflight Target: FLYWOOF405S_AIO, INAV: FLYWOOF405HD
• ESC:
• ESC Type: Brushless 4-in-1
• Continuous Current: 20A per channel
• Peak Current: 25A per channel
• Input Voltage: 3-4S LiPo Battery
• ESC Firmware: G_H_30_48KHz_Bluejay
• General:
• Compatible Drones: 2" and 2.5" Micro FPV Drones, Firefly 25mini 3S, Firefly 20pro 4S

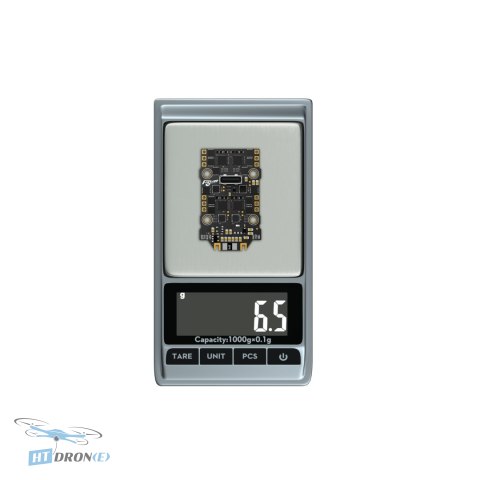

• Net Weight: 6.5 g

Applications

This flight controller is perfect for building agile and responsive micro FPV drones, suitable for freestyle racing, recreational flying, and capturing smooth aerial footage with HD systems. It's excellent for smaller cinewhoop designs and for constructing lightweight racing drones.

Compatibility

The controller is compatible with 3-4S LiPo batteries. It features integrated plug-and-play ports for DJI O4 Air Unit modules, receivers, GPS, and buzzers. The standard 20x20mm mounting pattern ensures broad compatibility with most FPV drone frames.

FAQ

What is the main purpose of the Flywoo GOKU F405 HD SE AIO FC?

The main purpose of this flight controller is to provide an efficient and integrated solution for building 2 and 2.5-inch micro FPV drones. It works exceptionally well with digital HD video transmission systems like the DJI O4 Air Unit.

What are the key technical specifications of the Flywoo GOKU F405 HD SE controller?

The controller features an STM32F405 processor, MPU6000 gyroscope, a 20A continuous 4-in-1 ESC, dual BEC output (10V/2A and 5V/2A), and 8MB of blackbox memory. It supports 3-4S LiPo batteries.

Is the Flywoo GOKU F405 HD SE controller compatible with the DJI O4 Air Unit?

Yes, the controller is optimized for digital HD FPV systems and includes dedicated ports and dual BEC to ensure stable power for the DJI O4 Air Unit and its accessories.

What types of FPV drones is this flight controller best suited for?

It's an ideal choice for building lightweight and responsive micro FPV drones, including freestyle, racing, and small HD cinematic drones. It's particularly recommended for 2" and 2.5" builds.

Where can I buy the Flywoo GOKU F405 HD SE flight controller with fast delivery?

You can order the Flywoo GOKU F405 HD SE AIO FC 20A from HTDRONE. We offer fast delivery within Poland and worldwide shipping options. Check our store for the best deals!
