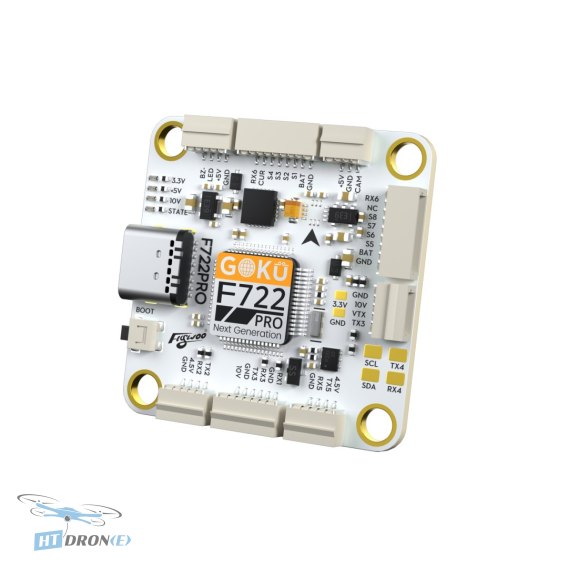

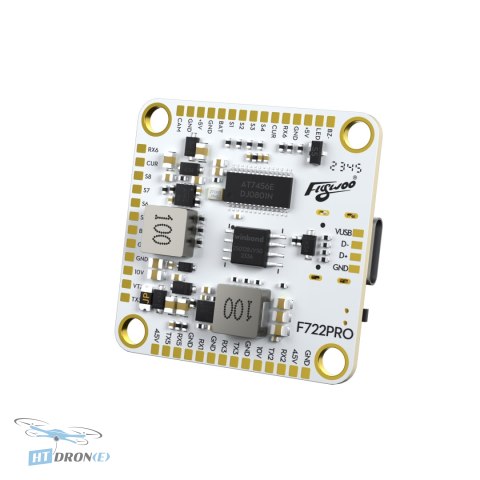

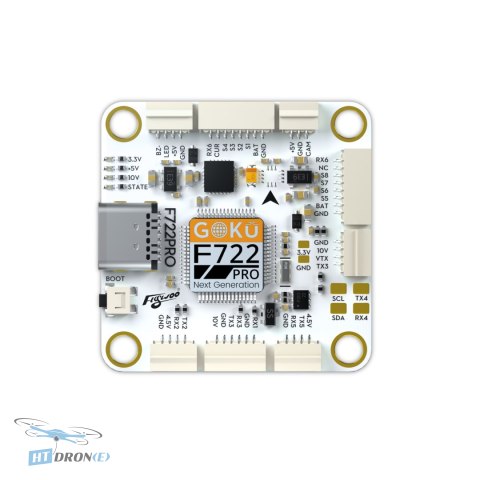

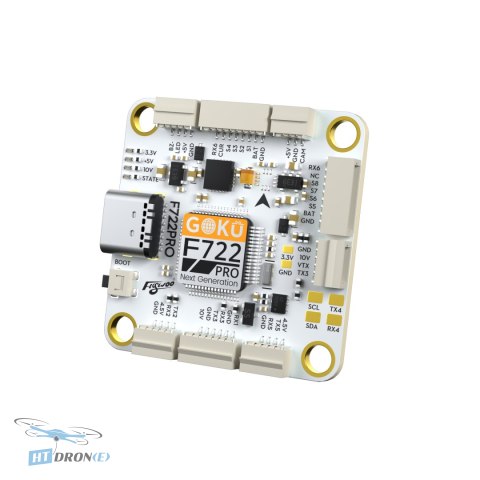

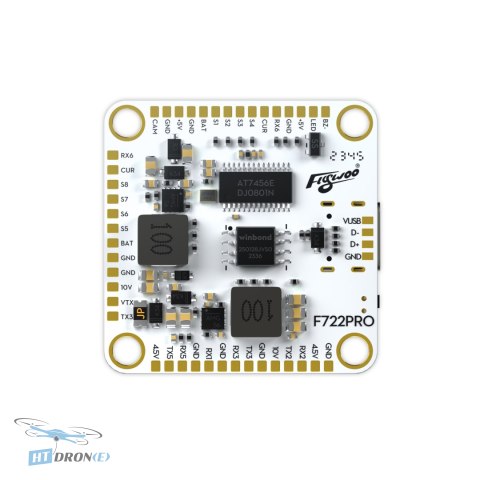

FLYWOO GOKU F7 PRO V2 FPV Drone Flight Controller ICM42688 30x30mm

Introduction

The FLYWOO GOKU F7 PRO V2 flight controller is engineered to deliver flagship processing power and connectivity for full-size FPV drone builds. Whether you're into racing, freestyle, or professional aerial filming, this FC provides the robust performance and reliable operation needed for cutting-edge FPV systems. It's built for pilots who demand the best in flight control technology, supporting both analog and the latest digital FPV systems.

Key Advantages

• Powerful Performance: Driven by an STM32 F722 microcontroller and a precision ICM42688 gyro for ultra-responsive flight.
• Versatile Connectivity: Features eight motor outputs and dual 4-in-1 ESC connectors, supporting X8 or hexacopter configurations.
• Flexible Installation: Each port offers both keyed connectors and traditional solder pads for easy setup and customization.
• Integrated Blackbox: Comes with 16MB of onboard memory for flight data logging, crucial for tuning and analysis.
• Stable Power Delivery: Equipped with dual 10V/5V 3A BECs to reliably power your components.
• High Compatibility: Includes a dedicated cable for the DJI O3 Air Unit, making it ideal for digital FPV setups.
• Built-in Sensors: Features an integrated barometer (DPS310/SPL06) for altitude hold capabilities.
• Robust Build: Designed with a standard 30x30mm mounting pattern for easy integration into most FPV frames.

Technical Specifications

• MCU: STM32 F722
• Gyro: ICM42688 (or MPU6000 selectable)
• OSD: AT7456E
• Barometer: DPS310 / SPL06
• Blackbox Memory: 16 MB
• UART Ports: UART1-UART6
• Motor Outputs: 8 (dual 4-in-1 ESC connectors)
• Input Voltage: 7.4 - 26V (2S - 6S Li-Po)
• BEC Outputs: 10V @ 3A / 5V @ 3A
• Firmware: Betaflight FLYWOO F722PRO / INAV FLYWOO F7

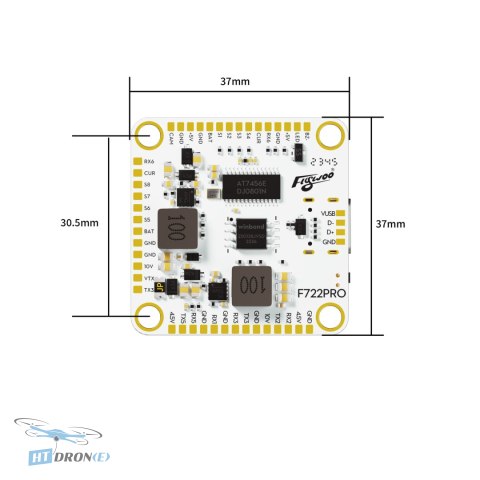

• Dimensions: 37 × 37 × 8 mm
• Mounting Pattern: 30 × 30 mm (M3)
• Weight: 9.9 g

Applications

This flight controller is perfectly suited for a wide range of FPV applications, including high-speed FPV racing drones, acrobatic freestyle quads, professional FPV cinematography, and custom UAV builds. Its robust feature set also makes it suitable for advanced analog FPV setups.

Compatibility

The FLYWOO GOKU F7 PRO V2 is compatible with 2S to 6S Li-Po batteries. It supports dual 4-in-1 ESC connections and features dedicated ports for various peripherals including GPS, receivers, and the DJI O3 Air Unit. The 30x30mm mounting pattern ensures compatibility with a vast array of FPV drone frames.

FAQ

What is the FLYWOO GOKU F7 PRO V2 flight controller best suited for?

The FLYWOO GOKU F7 PRO V2 flight controller is ideal for high-performance FPV drones, including racing, freestyle, and aerial cinematography. Its robust features and powerful processing make it suitable for both analog and digital FPV systems.

What are the key technical specifications of the FLYWOO GOKU F7 PRO V2?

It features an STM32 F722 MCU, an ICM42688 gyro, 16MB of blackbox memory, dual 10V/5V 3A BEC outputs, and supports 2S-6S Li-Po batteries. The mounting pattern is 30x30mm.

Does the FLYWOO GOKU F7 PRO V2 support digital FPV systems like the DJI O3 Air Unit?

Yes, the controller includes a dedicated cable for the DJI O3 Air Unit, making it a great choice for modern digital FPV builds. It also supports analog VTX connections.

Where can I buy the FLYWOO GOKU F7 PRO V2 flight controller with fast delivery?

You can buy the FLYWOO GOKU F7 PRO V2 flight controller at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you get your FPV parts quickly.

What is the mounting size for the FLYWOO GOKU F7 PRO V2?

The FLYWOO GOKU F7 PRO V2 flight controller has a standard 30x30mm mounting pattern, compatible with most FPV drone frames using M3 screws.
