FLYWOO TCXO ELRS 2.4G EL24E Receiver for FPV Drones

Introduction

The FLYWOO TCXO ELRS 2.4G EL24E is an ultra-compact, high-performance receiver specifically designed for FPV drones utilizing the ExpressLRS protocol. It addresses the need for reliable, low-latency control in demanding FPV applications, especially for smaller builds where space and weight are critical. Its advanced features ensure a stable and extended connection, enhancing the overall flying experience.

Key Advantages

• Exceptional Stability: Features a Temperature Compensated Crystal Oscillator (TCXO) for superior clock stability, leading to a more reliable connection.
• Extended Range & Low Latency: TCXO technology contributes to reduced latency and increased signal range for better control.
• High Refresh Rates: Supports fast refresh rates from 25 Hz to 500 Hz for responsive flight performance.
• Compact and Lightweight: Ultra-compact design with an integrated SMD antenna minimizes size and weight (0.44g without antenna), ideal for micro drones.
• WiFi Firmware Updates: Easily update firmware over WiFi using the ESP8285 MCU.
• Powerful RF Module: Equipped with the SX1280 or SX1281 RF module for robust 2.4GHz communication.
• Seamless Integration: Uses the CRSF communication protocol, compatible with Betaflight and other popular flight controllers.
• Ready to Install: Comes with essential accessories like a silicone cable and heat shrink tubing.

Technical Specifications

• Type: 2.4 GHz ISM receiver
• MCU: ESP8285 (WiFi update capable)
• RF Module: SX1280 / SX1281 IMLTRT
• Frequency Range: 2400 MHz - 2500 MHz
• Refresh Rate: 25 Hz - 500 Hz
• Operating Voltage: 5 V
• Communication Protocol: CRSF (Betaflight)
• Antenna Type: Built-in SMD
• Gain: 3.7 dB peak
• Weight: 0.44 g (without antenna)

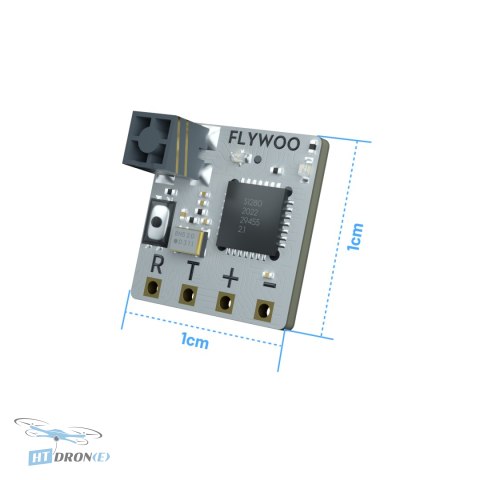

• Dimensions: 10 mm x 10 mm x 6 mm
• Firmware: FLYWOO EL24E 2.4 GHz RX 3.X.X

Applications

This receiver is ideal for a wide range of FPV applications, including but not limited to: FPV racing drones, freestyle FPV quadcopters, micro FPV builds, long-range FPV systems, and any UAV project requiring a stable, high-performance 2.4GHz ExpressLRS receiver.

Compatibility

Utilizes the CRSF communication protocol for seamless integration with Betaflight and other compatible flight controllers. Powered by 5V. Features WiFi capability for firmware updates.

FAQ

What makes the FLYWOO TCXO ELRS 2.4G EL24E receiver stand out for FPV drones?

The FLYWOO TCXO ELRS 2.4G EL24E receiver stands out due to its Temperature Compensated Crystal Oscillator (TCXO), which provides superior clock stability. This results in a more reliable connection, reduced latency, and extended range, crucial for high-performance FPV flying.

What is the maximum refresh rate of the FLYWOO EL24E receiver?

The FLYWOO EL24E receiver supports fast refresh rates ranging from 25 Hz up to 500 Hz. This high refresh rate ensures responsive control and smooth flight characteristics, essential for FPV racing and freestyle.

Is the FLYWOO TCXO ELRS 2.4G EL24E receiver suitable for small FPV builds?

Yes, the FLYWOO TCXO ELRS 2.4G EL24E receiver is exceptionally suitable for small FPV builds. Its ultra-compact dimensions (10x10x6mm) and integrated SMD antenna minimize weight (0.44g without antenna) and size, making it perfect for micro drones where space is limited.

How can I update the firmware on the FLYWOO EL24E receiver?

The FLYWOO EL24E receiver features an ESP8285 MCU that allows for convenient firmware updates over WiFi. This makes it easy to keep your receiver's software up-to-date without complex wiring.

Where can I buy the FLYWOO TCXO ELRS 2.4G EL24E receiver with fast delivery?

You can buy the FLYWOO TCXO ELRS 2.4G EL24E receiver at HTDRONE. We are based in Poland and offer fast shipping within Poland. For international customers, we provide worldwide shipping via DHL, ensuring quick and reliable delivery of your FPV parts.
