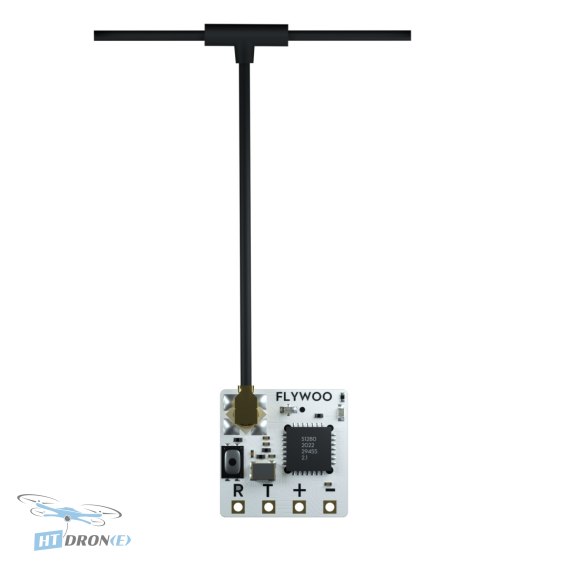

FLYWOO TCXO ELRS 2.4G EL24E Receiver for FPV Drones

Introduction

The FLYWOO TCXO ELRS 2.4G EL24E is an ultra-compact, high-performance receiver specifically engineered for FPV drones utilizing the ExpressLRS protocol. It addresses the need for reliable, low-latency control in demanding FPV applications, especially within space-constrained micro drone builds. By incorporating advanced features like TCXO technology and a compact SMD antenna, it delivers exceptional performance without compromising on size or weight.

Key advantages

• Superior Clock Stability: Features a Temperature Compensated Crystal Oscillator (TCXO) for enhanced connection reliability and reduced latency.
• Extended Range: TCXO technology contributes to a more robust signal, allowing for greater operational range.
• High Refresh Rates: Supports refresh rates from 25Hz up to 500Hz for precise and responsive control.
• Compact and Lightweight: With dimensions of 10mm x 10mm x 6mm and weighing only 0.44g (without antenna), it's ideal for micro FPV builds.
• WiFi Firmware Updates: Easily update firmware wirelessly via WiFi for seamless maintenance.
• Integrated SMD Antenna: Built-in antenna design reduces size and weight, simplifying installation in tight spaces.
• ExpressLRS Protocol: Leverages the popular and high-performance ExpressLRS protocol for optimal FPV flying.
• Versatile Compatibility: Works with Betaflight via the CRSF communication protocol.

Technical specifications

• Type: 2.4 GHz ISM receiver
• Microcontroller: ESP8285 (WiFi upgradable)
• RF Module: SX1280 / SX1281 IMLTRT
• Frequency Range: 2400 MHz - 2500 MHz
• Refresh Rate: 25 Hz - 500 Hz
• Operating Voltage: 5 V
• Communication Protocol: CRSF (for Betaflight)
• Antenna Type: Integrated SMD Antenna
• Gain: 3.7 dB peak
• Weight: 0.44 g (without antenna)
• Dimensions: 10 mm x 10 mm x 6 mm
• Firmware: FLYWOO EL24E 2.4 GHz RX 3.X.X

Applications

This receiver is perfectly suited for a wide range of FPV applications, including freestyle flying, racing drones, digital FPV systems, and custom-built micro drones where size, weight, and performance are critical factors. Its reliability also makes it suitable for drone inspection tasks requiring a stable control link.

Compatibility

The FLYWOO TCXO ELRS 2.4G EL24E receiver is compatible with flight controllers running Betaflight firmware that support the CRSF communication protocol. It operates on a 5V supply voltage.

FAQ

What makes the FLYWOO TCXO ELRS 2.4G EL24E receiver stand out for FPV drones?

The FLYWOO TCXO ELRS 2.4G EL24E stands out due to its Temperature Compensated Crystal Oscillator (TCXO), which ensures superior clock stability for a more reliable connection, reduced latency, and extended range. Its ultra-compact size and integrated SMD antenna make it ideal for high-performance micro FPV builds.

What is the maximum refresh rate supported by the FLYWOO EL24E receiver?

The FLYWOO EL24E receiver supports a wide range of refresh rates, from 25 Hz up to 500 Hz. This high refresh rate capability is crucial for precise and responsive control in demanding FPV applications.

Can I update the firmware on the FLYWOO TCXO ELRS 2.4G EL24E receiver wirelessly?

Yes, the FLYWOO TCXO ELRS 2.4G EL24E receiver features an ESP8285 microcontroller that allows for seamless firmware updates via WiFi. This makes maintenance and upgrades convenient.

What type of antenna does the FLYWOO EL24E receiver use, and why is it beneficial?

The FLYWOO EL24E receiver utilizes an integrated SMD antenna. This built-in design minimizes the overall weight and dimensions of the receiver, which is highly beneficial for micro FPV drone builds where space and weight are critical limitations.

Where can I buy the FLYWOO TCXO ELRS 2.4G EL24E receiver with fast delivery?

You can buy the FLYWOO TCXO ELRS 2.4G EL24E receiver at HTDRONE. We are based in Poland and offer fast shipping within Poland. International delivery is available via DHL for customers worldwide.
