BETAFPV C04 FPV Micro Camera + M04 VTX Analog Video Kit for Micro FPV Drones

Introduction

The BETAFPV C04 FPV Micro Camera combined with the M04 VTX is a modular analog video solution designed for micro FPV quadcopters, especially the Cetus X. This kit offers a seamless plug-and-play experience, making it incredibly easy to install and use. Its lightweight design and high-quality imaging capabilities make it an excellent choice for pilots seeking clear and responsive FPV feeds for their small drone builds.

Key Advantages

• Plug-and-Play Installation: Simplifies setup for quick deployment.
• High Resolution: 1200TVL provides sharp and detailed FPV imagery.
• Wide Field of View: 160° FOV enhances situational awareness during flight.
• Lightweight Design: At only 4.14g, it adds minimal weight to your micro drone.
• Modular Design: Easily integrates with compatible flight controllers and frames.
• Adjustable Power Output: VTX power can be set between 25mW and 400mW for optimal range and heat management.
• Clear Image Quality: Utilizes a 1/3" CMOS sensor for vivid and clear video transmission.
• Analog Video System: Reliable and widely compatible analog transmission for FPV.

Technical Specifications

• Item: C04 Camera and M04 VTX Module
• Camera: C04 FPV Micro Camera
• Image Sensor: 1/3" CMOS
• Horizontal Resolution: 1200TVL
• Field of View (FOV): 160°
• Video System: NTSC (4:3)
• VTX Power Output: 25mW - 400mW
• Power Supply Voltage: 5V
• Dimensions: 14.5*21*23.5mm (without antenna)
• Weight: 4.14g (with antenna)
• VTX Frequency: 5 Bands 40 Channels with Raceband

Applications

This FPV camera and VTX combo is ideal for micro FPV quadcopters, particularly those used for indoor flying, freestyle, and light racing. It's a perfect upgrade for the BETAFPV Cetus X brushless quadcopter or any similar micro FPV build requiring a lightweight and high-performance analog video system.

Compatibility

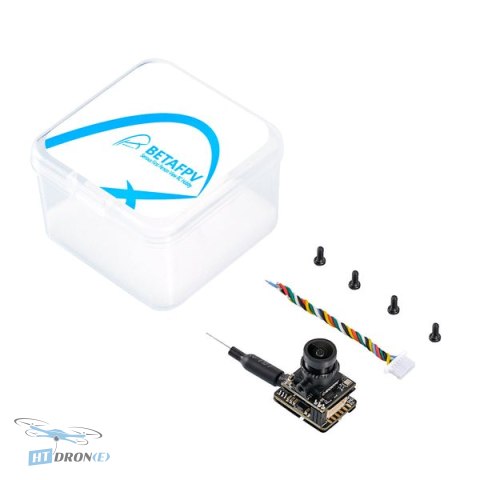

Designed to work seamlessly with the BETAFPV Cetus X Brushless Whoop Frame and the Cetus X Brushless Quadcopter. Ensure your flight controller is Betaflight Version compatible for the M04 VTX. The kit includes a camera, VTX module, cable, and mounting screws.

FAQ

What is the BETAFPV C04 + M04 VTX kit best suited for?

The BETAFPV C04 FPV Micro Camera and M04 VTX kit is ideal for micro FPV quadcopters, particularly the BETAFPV Cetus X. Its lightweight design and clear video feed make it perfect for indoor flying, freestyle, and micro drone racing.

What resolution and field of view does the BETAFPV C04 camera offer?

The BETAFPV C04 camera provides a sharp 1200TVL horizontal resolution for detailed FPV imagery. It also features a wide 160° Field of View (FOV), enhancing your situational awareness during flights.

What are the technical specifications of the M04 VTX?

The M04 VTX module operates on 5 bands and 40 channels, including Raceband. It offers adjustable power output from 25mW up to 400mW, allowing you to balance range with heat management. It requires a 5V power supply.

How much does the BETAFPV C04 + M04 VTX combo weigh?

This integrated camera and VTX module is extremely lightweight, weighing only 4.14g including the antenna. This minimal weight is crucial for maintaining the performance and agility of micro FPV drones.

Where can I buy the BETAFPV C04 + M04 VTX kit with reliable delivery?

You can buy the BETAFPV C04 + M04 VTX kit at HTDRONE. We offer fast and reliable international shipping via DHL, ensuring you receive your FPV parts quickly, wherever you are.
