CaddxFPV Ant Nano FPV Camera Black 4:3 1200TVL for Micro FPV Drones

Introduction

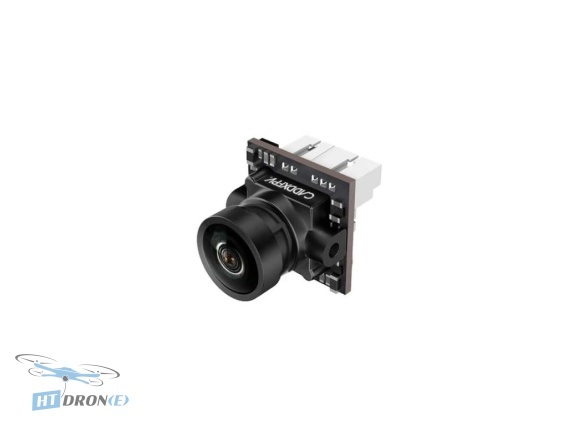

The Caddx Ant Nano (Black 4:3) is a compact and incredibly lightweight analog FPV camera designed for micro drones and builds where minimal weight is crucial. Weighing only 2 grams, this camera has a negligible impact on flight characteristics while delivering high-quality video output. It's the ideal choice for pilots seeking the smallest, most agile FPV setups.

Key advantages

• Ultra-lightweight design at only 2 grams, perfect for micro drones and weight-sensitive builds.
• 1200TVL resolution with a 1/3" CMOS sensor provides a sharp and detailed 4:3 image.
• Wide 165° Field of View (FOV) for immersive FPV flight.
• Global WDR and 3D DNR technologies enhance image clarity in various lighting conditions.
• Supports OSD menu for easy parameter configuration.
• Wide input voltage range (3.7-18V) ensures broad compatibility with flight controllers.

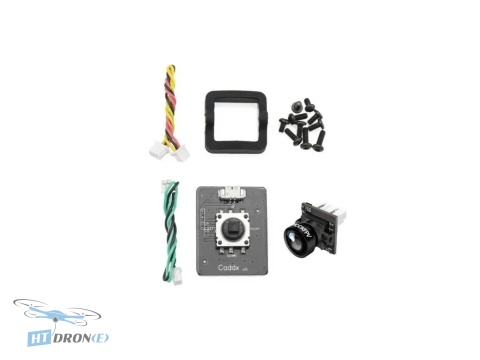

• Includes a 19x19mm mounting adapter for versatility in different frame sizes.
• Robust construction for demanding FPV applications.

Technical specifications

• Model: Caddx Ant Nano
• Color: Black
• Aspect Ratio: 4:3
• Sensor: 1/3" CMOS
• Resolution: 1200 TVL
• Lens: 1.8 mm

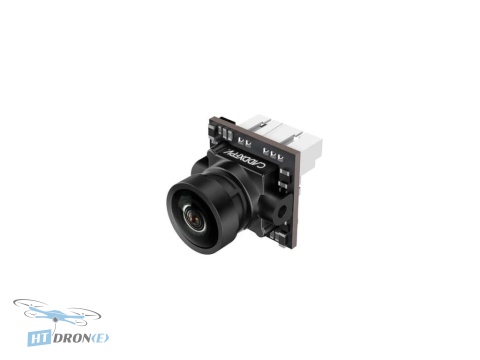

• FOV: 165°
• Minimum Illumination: 0.001 Lux @ F1.2
• Shutter: PAL: 1/50-100,000s, NTSC: 1/60-100,000s
• TV System: NTSC / PAL (switchable)
• Video Output: CVBS
• WDR: Global WDR
• DNR: 3D DNR
• BLC: Yes
• OSD: Yes
• Power Supply: DC 3.7-18 V
• Synchronization: Internal
• AGC: Yes
• Operating Temperature: -20°C to +60°C
• Operating Humidity: 20%-80%

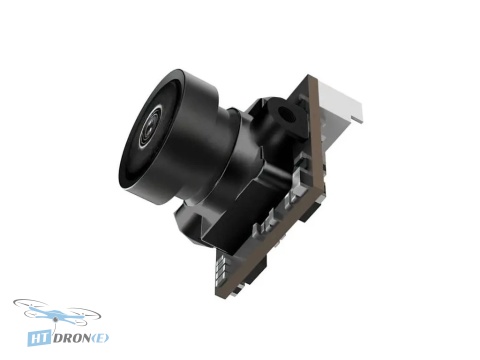

• Dimensions: 14×14 mm (with 19×19 mm adapter)
• Weight: 2 g (net)

Applications

This camera is perfectly suited for micro FPV drones, toothpick builds, ultra-lightweight racing drones, and any custom FPV or UAV project where minimizing weight is paramount. Its compact size and robust features also make it suitable for indoor FPV flying and freestyle.

Compatibility

The Caddx Ant Nano camera is compatible with a wide range of FPV flight controllers due to its broad power input range of 3.7V to 18V. It comes with a 19x19mm mounting adapter, allowing for easy integration into various drone frames, from tiny micro quads to slightly larger 14x14mm or 19x19mm mounting setups.

FAQ

What makes the CaddxFPV Ant Nano camera ideal for micro FPV drones?

The CaddxFPV Ant Nano is exceptionally lightweight, weighing only 2 grams. This minimal weight ensures it doesn't negatively impact the flight performance of small, agile micro FPV drones, making it a perfect fit for weight-sensitive builds.

What is the video quality like on the CaddxFPV Ant Nano camera?

This camera features a 1/3" CMOS sensor with a 1200TVL resolution, delivering a clear and detailed 4:3 aspect ratio image. Enhanced with Global WDR and 3D DNR, it effectively handles challenging lighting conditions for better image readability during flight.

What is the field of view (FOV) of the CaddxFPV Ant Nano camera?

The CaddxFPV Ant Nano camera offers a wide 165° Field of View (FOV). This expansive view provides pilots with an immersive and comprehensive perspective of their surroundings, crucial for effective FPV flying and navigation.

What is the voltage range and mounting compatibility for the CaddxFPV Ant Nano?

The camera supports a wide input voltage range of 3.7V to 18V, ensuring compatibility with most FPV flight controllers. It includes a 19x19mm mounting adapter, allowing it to be easily installed in various drone frames that accommodate 14x14mm or 19x19mm mounting patterns.
