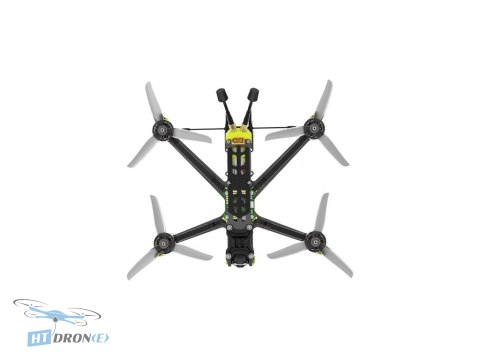

IFlight Nazgul DC5 ECO HD O3 6S BNF FPV Drone with GPS & ELRS 868/915MHz

Introduction

The iFlight Nazgul DC5 ECO HD O3 6S BNF is a high-performance 5-inch FPV freestyle drone designed for enthusiasts who demand top-tier video transmission and flight characteristics. Its innovative 'DeadCat' geometry ensures no propeller is visible in the camera feed, providing a completely unobstructed view. This drone integrates the latest DJI O3 Air Unit, offering a low-latency, high-definition digital FPV experience. It's built for pilots who want to push the limits of freestyle flying and capture stunning aerial footage.

Key Advantages

• Unobstructed FPV Feed: Unique DeadCat design eliminates propeller visibility for a clear, immersive FPV experience.
• Superior DJI O3 HD Transmission: Experience low-latency, high-definition video up to 10km (FCC), with support for ND filters for enhanced camera control.
• Robust and Lightweight Construction: Combines a carbon fiber frame with aluminum camera mounts for durability without compromising weight.
• Enhanced Durability: Features an anti-spark filter to protect the XT60 connector and extend its lifespan.
• Versatile Mounting Options: Offers 20x20mm and 30.5x30.5mm mounting holes for custom setups and compatibility with various flight stacks and VTX systems.
• High-Performance Flight Control: Equipped with the BLITZ ATF435 Flight Controller and BLITZ E55S 55A ESC for smooth and reliable flight.
• Integrated GPS: Includes GPS+SBAS+Galileo+QZSS+Glonass for advanced navigation and flight features.
• Ready-to-Fly (BNF): Comes Bind-N-Fly, simplifying setup for pilots with compatible ELRS radio transmitters.

Technical Specifications

• Product Name: Nazgul DC5 ECO 6S O3 HD
• Frame Geometry: DC (DeadCat)
• Flight Controller (FC): BLITZ ATF435 Flight Controller
• Electronic Speed Controller (ESC): BLITZ E55S 55A 4-IN-1 ESC
• Video Transmission: DJI O3 Air Unit
• Receiver Option: ELRS 868/915MHz
• Frame Wheelbase: 240mm
• Motor: XING-E Pro 2207 1800KV Motors
• Propellers: Nazgul F5 Propellers
• Weight: 437g (without battery)
• Dimensions (L×W×H): 193×144×34 mm
• Max Speed: 190 km/h (Manual Mode)
• Max Takeoff Altitude: 7000 m
• Max Hovering Time: Approx. 7.5 min (no load with 6S 1400mAh)
• Max Wind Resistance: Level 7
• Operating Temperature: -10° to 40° C (14° to 104° F)
• Antennas: Dual Antenna
• GNSS: GPS+SBAS+Galileo+QZSS+Glonass
• DJI O3 Air Unit FOV (Single Screen): 155°
• DJI O3 Air Unit Communication Frequency: 2.400-2.4835 GHz (RX only)/5.725-5.850 GHz (RX & TX)
• DJI O3 Air Unit End-to-End Latency (with DJI Goggles 2): As low as 30ms (1080p/100fps)
• DJI O3 Air Unit Max Video Transmission Bitrate: 50 Mbps
• DJI O3 Air Unit Max Video Transmission Range: 10 km (FCC)
• DJI O3 Air Unit Operating Temperature: -10º to 40º C (14° to 104° F)
• DJI O3 Air Unit Power Supply: 7.4-26.4 V

Applications

This FPV drone is ideally suited for freestyle FPV flying, capturing cinematic aerial footage, and advanced FPV enthusiasts looking for a high-quality, integrated digital system. Its robust build and GPS capabilities also make it suitable for longer-range flights and potential aerial photography applications.

Compatibility

This BNF drone is compatible with ELRS radio transmitters operating on 868/915MHz frequencies. It utilizes the DJI O3 Air Unit, requiring compatible DJI FPV Goggles or DJI Goggles 2 for the digital FPV experience. The frame offers standard mounting holes (20x20mm and 30.5x30.5mm) for customization.

FAQ

Where can I buy the iFlight Nazgul DC5 ECO HD O3 6S BNF FPV Drone with GPS and ELRS?

You can buy the iFlight Nazgul DC5 ECO HD O3 6S BNF FPV Drone at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL. Check our store for the best deals.

What is the main advantage of the DJI O3 Air Unit on this FPV drone?

The main advantage is the high-definition, low-latency digital video transmission. It offers a clear, unobstructed FPV feed with a range of up to 10km (FCC), allowing for more immersive and precise flying.

What kind of flying is the iFlight Nazgul DC5 ECO HD O3 6S BNF drone best suited for?

This drone is perfectly suited for FPV freestyle flying due to its agile performance, robust DeadCat frame design, and high-quality digital FPV system. It's also capable of capturing smooth, stabilized 4K video.

Does this FPV drone come with a radio transmitter and goggles?

No, this is a Bind-N-Fly (BNF) drone, meaning it comes ready to bind with a compatible ELRS radio transmitter and DJI O3 compatible FPV goggles. These are sold separately.

What is the maximum flight time for the iFlight Nazgul DC5 ECO HD O3?

With a 6S 1400mAh battery and no payload, the drone can achieve a maximum hovering time of approximately 7.5 minutes. Actual flight time will vary based on flying style and conditions.
