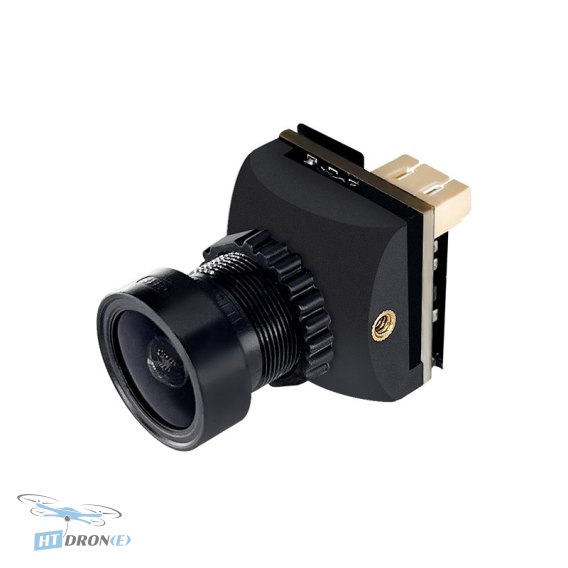

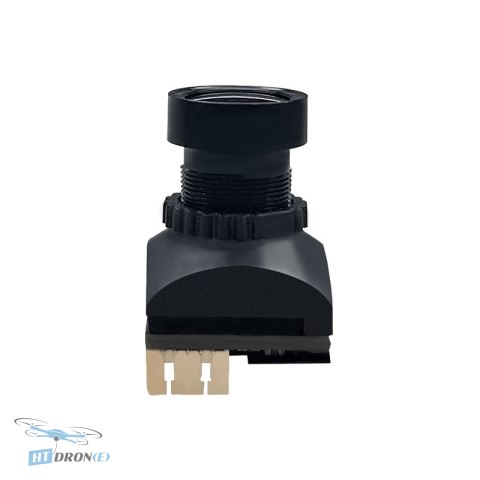

Pilotix C3 Starlight 1200TVL Analog FPV Camera for Low Light Flying

Introduction

The Pilotix C3 Starlight camera is engineered for FPV pilots who demand superior visual performance, especially in challenging low-light environments. It offers an unparalleled flying experience with its high resolution and exceptional light sensitivity, making it an ideal choice for both daytime and nighttime FPV adventures. This camera ensures you never miss a detail, providing a clear and immersive view of your surroundings.

Key Advantages

• Exceptional low-light performance with 0.00001Lux minimum illumination.
• Stunning 1200TVL resolution for incredibly sharp and detailed images.
• Versatile 4:3/16:9 aspect ratio switching for your preferred viewing experience.
• Wide Field of View (up to 125° diagonal) for enhanced situational awareness.
• Durable design suitable for demanding FPV applications.
• Wide input voltage range (5-36V) for flexible integration.
• Advanced 3DNR and 100dB WDR for improved image quality in varied conditions.
• Compact and lightweight construction (12.2g) for minimal impact on drone performance.

Technical Specifications

• Spectral Range: 400nm-650nm
• Sensor Type: Sony 1/3" CMOS Sensor
• Aspect Ratio: 4:3 (Default) / 16:9 Switchable
• Resolution: 1200TVL
• TV System: PAL (Default) / NTSC Switchable
• Lens: M12 2.1mm F1.2 Aperture Lens
• Video Output: CVBS Analog Signal
• FOV:
  • 4:3 FOV-H: 100°, FOV-D: 125°
  • 16:9 FOV-H: 100°, FOV-D: 115°
• Minimum Illumination: 0.00001Lux
• Shutter Speed:
  • PAL 1/25-1/10000sec
  • NTSC 1/30-1/10000sec
• White Balance: Auto
• DNR: 3DNR
• DAY/NIGHT: EXT/Auto/Color/B&W
• WDR: 100dB
• Input Voltage: 5-36V
• Language: ENGLISH/中文/PYCCKNN/ESPANOL/ITALIANO/FRANCAIS/POLSKIM/PORTUGUES/日本语/EAAHNIKA
• Operating Temperature: -10°~50°C RH90% MAX
• Operating Humidity: 20~80%
• Power Consumption: 95mA±15%@DC12V
• Dimensions: 19*19mm
• Weight: 12.2g (without cable)
• Storage Temperature: -20°~70℃

Applications

This camera is perfect for FPV racing drones, freestyle FPV setups, cinematic FPV flying, and any UAV application requiring high-quality video capture in diverse lighting conditions. Its low-light capability makes it ideal for night flying and navigating complex environments.

Compatibility

Features a wide input voltage range of 5-36V, ensuring compatibility with most FPV setups. The standard analog CVBS output is compatible with most FPV video transmitters and goggles.

FAQ

What makes the Pilotix C3 Starlight camera ideal for low-light conditions?

The Pilotix C3 Starlight camera excels in low light due to its extremely low minimum illumination of 0.00001Lux and a sensitive Sony 1/3" CMOS sensor. This allows it to capture clear and usable video even in near-darkness.

What is the resolution and aspect ratio of the Pilotix C3 Starlight camera?

This camera offers a high resolution of 1200TVL. It also supports switchable aspect ratios, allowing you to choose between 4:3 (default) and 16:9 for your viewing preference.

What is the field of view (FOV) for the Pilotix C3 Starlight camera?

The Field of View varies slightly with the aspect ratio. For 4:3, the horizontal FOV is 100° and the diagonal FOV is 125°. For 16:9, the horizontal FOV is 100° and the diagonal FOV is 115°.

What is the operating voltage range for the Pilotix C3 Starlight FPV camera?

The Pilotix C3 Starlight camera features a wide operating voltage input range of 5V to 36V, making it compatible with a variety of FPV setups and power systems.

Where can I buy the Pilotix C3 Starlight camera with fast delivery?

You can order the Pilotix C3 Starlight camera from HTDRONE, an FPV specialist store based in Poland. We offer fast shipping within Poland and reliable international delivery via DHL worldwide.
