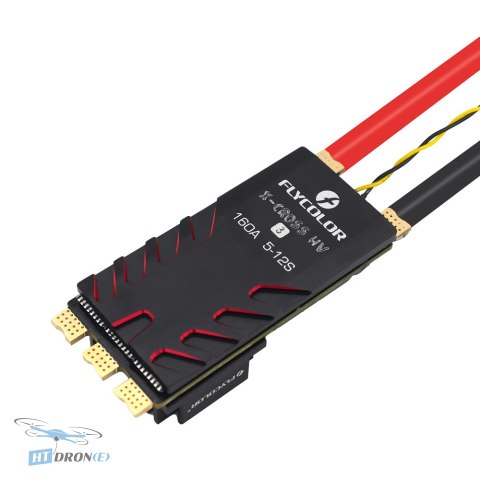

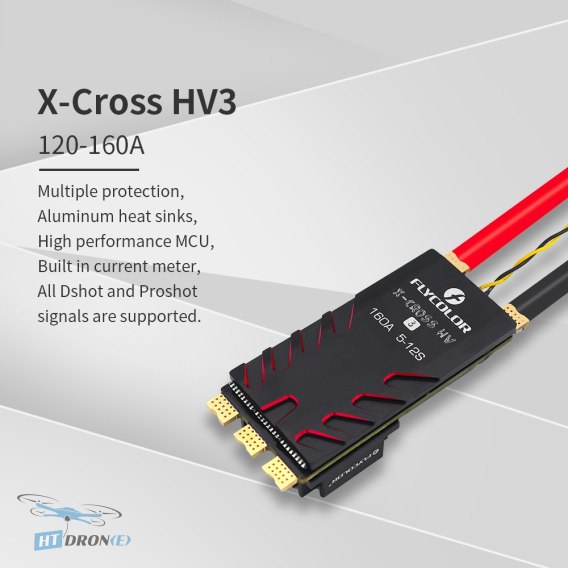

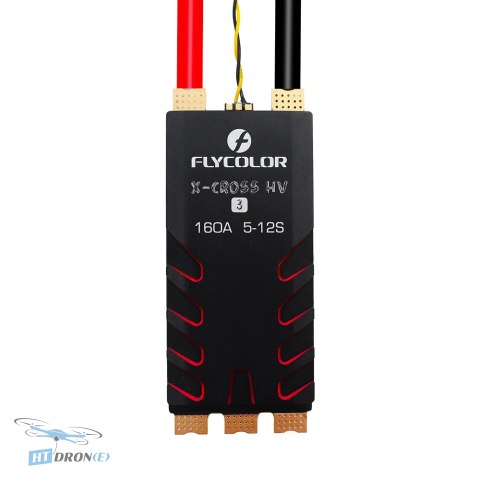

Flycolor X-Cross HV3 160A 5-12S ESC for FPV Drones

Introduction

The Flycolor X-Cross HV3 160A ESC is a cutting-edge electronic speed controller engineered for high-performance FPV drones and UAV applications. Built with premium components and running the advanced BLHeli_32 firmware, it offers unparalleled reliability and control for demanding aerial tasks. This ESC is ideal for pilots seeking maximum power and stability, especially for drone builds requiring high voltage input and current handling capacity.

Key advantages

• High-performance 32-bit ARM Cortex MCU operating up to 48MHz for rapid processing.
• Top-tier MOSFETs with low ESR ensure efficient power delivery and durability under heavy loads.
• Advanced BLHeli_32 firmware supports up to 12S LiPo batteries, making it suitable for X-class drones.
• Wide compatibility with input signal types including 1-2ms PWM, Oneshot125, Oneshot42, and Multishot.
• Automatic signal detection simplifies setup and ensures reliable operation.
• Compact and lightweight design, perfect for tight drone frames.
• Active freewheeling and regenerative braking provide rapid motor deceleration and improved efficiency.
• Signal wire shielding effectively reduces interference for more stable flights.
• Integrated aluminum heatsink dissipates heat, allowing for sustained high-current operation.

Technical specifications

• Model: HV3-160A
• Continuous Current: 160A
• Burst Current: 180A
• Voltage Input: 5-12S LiPo
• BEC: No
• Weight: 132g
• Dimensions: 82x34x21.1mm
• MCU: 32-bit ARM Cortex (up to 48MHz)
• Firmware: BLHeli_32
• Input Signal Support: 1-2ms PWM, Oneshot125, Oneshot42, Multishot

Applications

This ESC is specifically designed for demanding FPV drone applications, including FPV racing, freestyle flying, and large-scale UAV projects that require significant power and precise control. Its robust design and high voltage capability also make it suitable for professional aerial photography and inspection drones.

Compatibility

Compatible with 5-12S LiPo batteries. Supports standard 1-2ms PWM, Oneshot125, Oneshot42, and Multishot input signals, with automatic detection. The compact size makes it suitable for drones with narrow frames.

FAQ

Where can I buy the Flycolor X-Cross HV3 160A 5-12S ESC?

You can buy the Flycolor X-Cross HV3 160A 5-12S ESC at HTDRONE, our specialized FPV parts store. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What is the maximum voltage supported by the Flycolor X-Cross HV3 160A ESC?

The Flycolor X-Cross HV3 160A ESC supports a wide voltage range of 5-12S LiPo batteries, making it suitable for high-power FPV drone builds.

What firmware does the Flycolor X-Cross HV3 160A ESC use?

This ESC utilizes the advanced BLHeli_32 firmware, known for its performance, features, and compatibility with various signal protocols for precise motor control.

Is the Flycolor X-Cross HV3 160A ESC suitable for FPV racing drones?

Yes, the Flycolor X-Cross HV3 160A ESC is an excellent choice for FPV racing and other demanding applications due to its high current handling (160A continuous, 180A burst), powerful ARM Cortex MCU, and robust construction.

Does the Flycolor X-Cross HV3 160A ESC have a BEC?

No, the Flycolor X-Cross HV3 160A ESC does not feature an integrated BEC (Battery Eliminator Circuit). You will need a separate BEC or power distribution board to supply power to your flight controller and other components.
