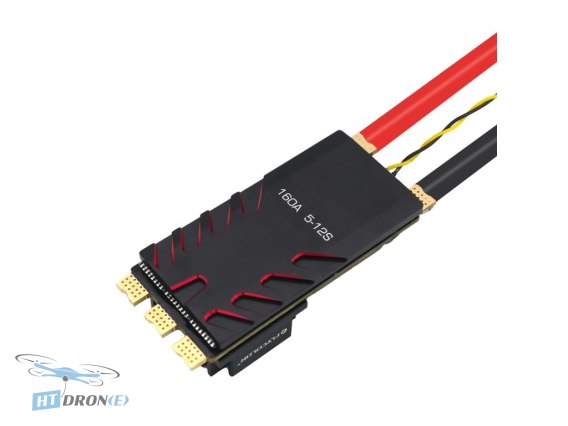

Flycolor X-Cross HV3 160A 5-12S ESC for High Voltage FPV Drones

Introduction

The Flycolor X-Cross HV3 160A ESC is engineered for serious FPV and UAV enthusiasts who demand uncompromising performance and reliability. Built with high-quality components and advanced firmware, this Electronic Speed Controller is designed to handle the high power demands of modern FPV drone builds, especially those operating on higher voltage systems (5-12S LiPo). It offers superior motor control, rapid response times, and enhanced durability, making it a critical component for racing drones, freestyle quads, and professional UAV applications.

Key Advantages

• High-Performance Core: Powered by an ARM 32-bit Cortex MCU running at up to 48MHz for lightning-fast processing.
• Robust Power Handling: Features high-efficiency, low ESR MOSFETs capable of handling continuous 160A current and 180A bursts.
• Advanced Firmware: Utilizes the latest BLHeli_32 firmware for optimized performance, advanced features, and smooth throttle control.
• Wide Voltage Range: Supports 5-12S LiPo batteries, offering flexibility for various high-power drone configurations.
• Fast Response & Braking: Implements damped light with regenerative braking for extremely fast motor deceleration and active freewheeling.
• Signal Integrity: Signal wire uses a twisted-pair silicone cable to minimize interference, ensuring a more stable flight experience.
• Efficient Cooling: Equipped with an aluminum heatsink to effectively manage temperature during intense operation.
• Compact Design: Small size and lightweight profile make it suitable for tight drone frames, especially those with narrow arms.

Technical Specifications

• Model: HV3-160A
• Continuous Current: 160A
• Burst Current: 180A
• Input Voltage: 5-12S LiPo
• BEC: No
• MCU: ARM 32-bit Cortex (up to 48MHz)
• Firmware: BLHeli_32
• Input Signal Support: 1-2ms PWM, Oneshot125, Oneshot42, Multishot (auto-detection)
• Weight: 132g
• Dimensions: 82mm x 34mm x 21.1mm
• Heatsink: Aluminum

Applications

This ESC is perfectly suited for high-performance FPV racing drones, freestyle quads, and demanding UAV applications that require significant power and precise control. Its high voltage capability makes it ideal for setups pushing the limits of speed and agility.

Compatibility

Compatible with a wide range of FPV drone frames and systems supporting 5-12S LiPo batteries. It supports standard 1-2ms PWM input signals, as well as high-speed protocols like Oneshot125, Oneshot42, and Multishot, with automatic detection for ease of use.

FAQ

What is the Flycolor X-Cross HV3 160A ESC best suited for?

The Flycolor X-Cross HV3 160A ESC is best suited for high-performance FPV racing drones, freestyle quads, and demanding UAV applications. Its high voltage capability (5-12S LiPo) and robust 160A current rating make it ideal for setups requiring significant power and precise motor control.

What firmware does the Flycolor X-Cross HV3 160A ESC use?

This ESC uses the advanced BLHeli_32 firmware. This firmware provides optimized performance, smooth throttle response, and access to advanced features like regenerative braking and active freewheeling, ensuring a superior flight experience.

Does the Flycolor X-Cross HV3 160A ESC have a BEC?

No, the Flycolor X-Cross HV3 160A ESC does not feature an integrated BEC (Battery Eliminator Circuit). You will need a separate BEC or a power distribution board with a BEC to power your flight controller and other onboard electronics.

What input signal protocols does this ESC support?

The Flycolor X-Cross HV3 160A ESC automatically detects and supports standard 1-2ms PWM input signals, as well as high-speed protocols like Oneshot125, Oneshot42, and Multishot. This ensures compatibility with most modern FPV flight controllers.
