Flycolor X-Tower 2 60A F7 ESC/FC Stack for High-Performance FPV Drones

Introduction

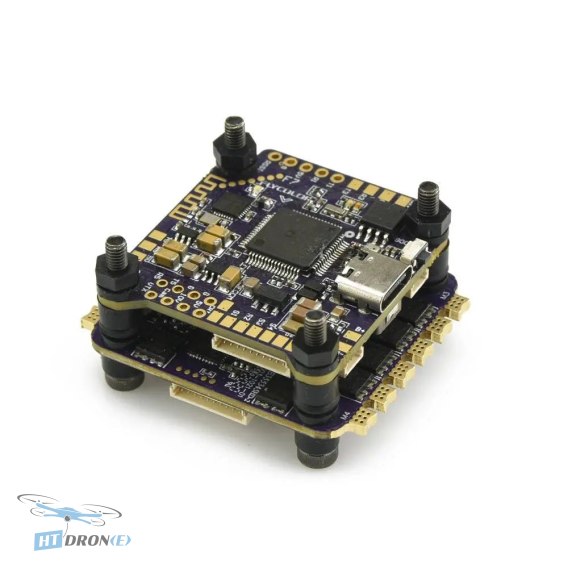

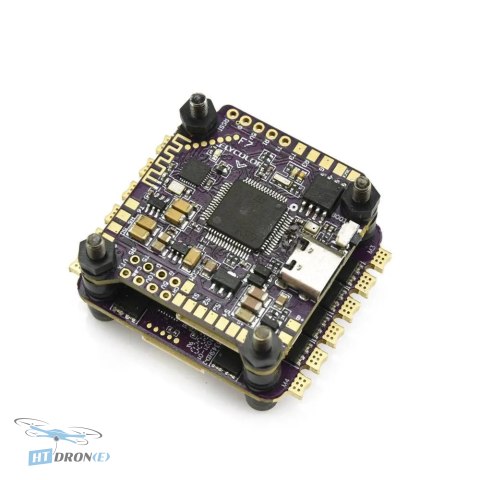

The Flycolor X-Tower 2 60A F7 Stack is a high-performance, integrated electronic speed controller (ESC) and flight controller (FC) system designed for demanding FPV drone applications. This stack offers superior power handling, advanced control features, and robust construction, making it an ideal choice for drone enthusiasts looking to push the limits of speed and agility. It solves the problem of complex wiring and component integration by providing a streamlined, reliable solution.

Key advantages

• High-efficiency MOSFETs for superior current handling and thermal performance.

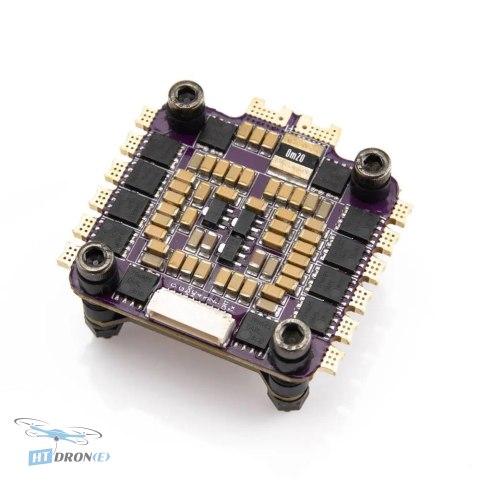

• Dual-layer tower design with vibration dampening for enhanced flight stability.
• Regenerative braking with active freewheeling for rapid motor deceleration.
• Wide signal compatibility including Dshot, Proshot, Oneshot, and Multishot.
• Extensive receiver support for SBUS, SPEKTRUM, and more.
• Integrated 3.3V, 5V, and 12V power outputs for peripherals.
• Dedicated 4-way LED port with independent 5V BEC for safer power distribution.
• Customizable LED colors via Betaflight configurator.

Technical specifications

• Model: X-Tower 2 60A
• Supported Voltage: 3-6S Lipo
• Continuous Current: 60A
• Burst Current: 70A
• Structure: Tower
• Power Supply Voltage: 3.3V/5V/10V

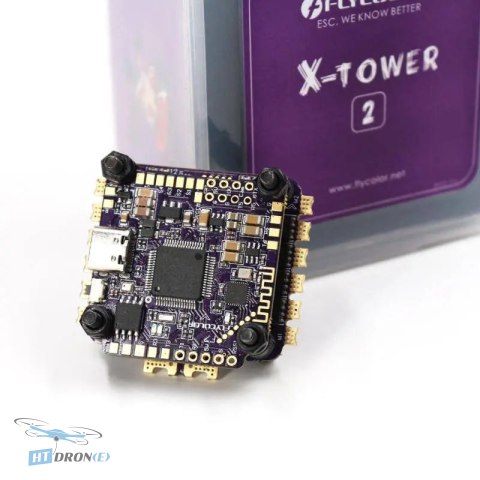

• MCU: STM32F722
• F7 Firmware: STM32F7X2 (Config: FLYCOLORF7)
• ESC Firmware: Flycolor_X_Cross_BL_32
• Bluetooth: FC_Bluetooth

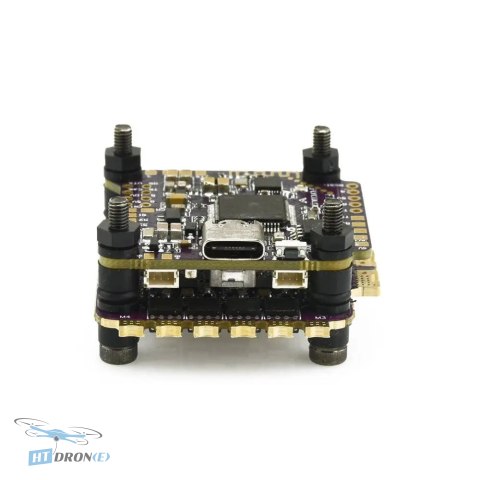

• USB: Type C

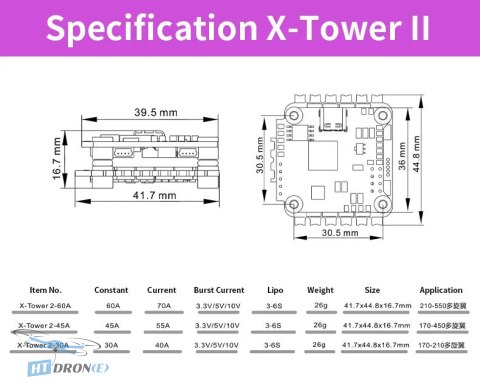

• Mounting Hole: 30.5x30.5mm, M3
• Dimensions: 41.7x44.8x16.7mm
• Weight: 26g

Applications

This FPV drone stack is perfect for high-speed racing, freestyle acrobatics, and demanding aerial maneuvers. Its robust design and advanced features also make it suitable for professional FPV setups requiring reliable power and precise control.

Compatibility

The Flycolor X-Tower 2 60A F7 Stack is compatible with a wide range of receivers, including SBUS and SPEKTRUM (1024/2048). It features integrated 3.3V, 5V, and 12V power outputs for various peripherals like cameras, VTXs, and LED strips. The standard 30.5x30.5mm mounting pattern ensures compatibility with most FPV drone frames.

FAQ

What is the Flycolor X-Tower 2 60A F7 Stack used for?

The Flycolor X-Tower 2 60A F7 Stack is designed for high-performance FPV drones, ideal for racing and freestyle applications. It integrates a 60A ESC with an F7 flight controller, offering robust power handling and advanced flight control features.

What are the key features of the Flycolor X-Tower 2 60A F7 Stack?

Key features include high-efficiency MOSFETs, a dual-layer tower design with vibration dampeners, regenerative braking with active freewheeling, wide signal compatibility (Dshot, Proshot, Oneshot, Multishot), and integrated 3.3V, 5V, and 12V power outputs for peripherals.

What is the maximum supported voltage for the Flycolor X-Tower 2 60A F7 Stack?

This stack supports 3-6S LiPo batteries, providing ample power for demanding FPV drone builds. It handles a continuous current of 60A and a burst current of 70A.

Where can I buy the Flycolor X-Tower 2 60A F7 Stack with fast delivery?

You can buy the Flycolor X-Tower 2 60A F7 Stack at HTDRONE, an FPV parts store based in Poland. We offer fast delivery within Poland and worldwide shipping via DHL for international customers.

What receiver protocols does the Flycolor X-Tower 2 60A F7 Stack support?

The stack is broadly compatible with various receiver protocols, including SBUS, SPEKTRUM 1024/2048, and other common remote control/receiver modes.
