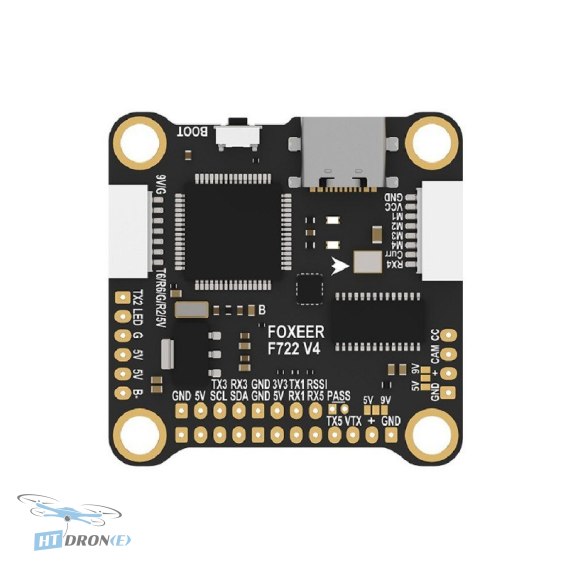

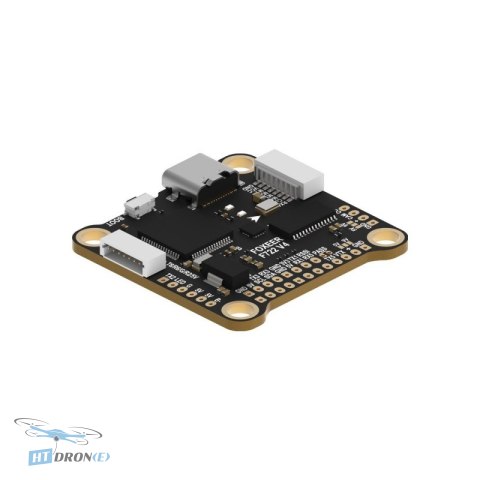

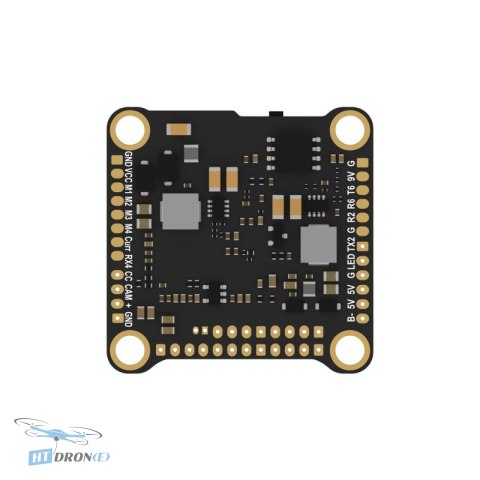

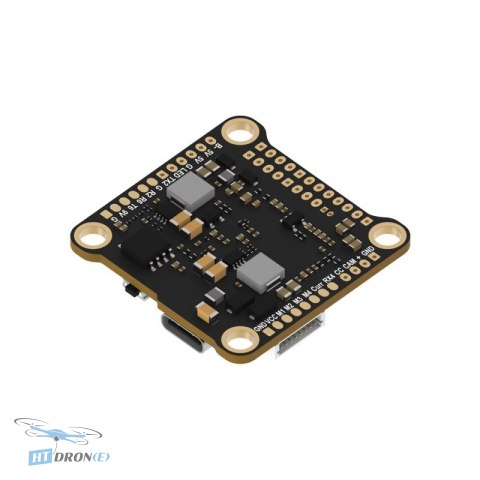

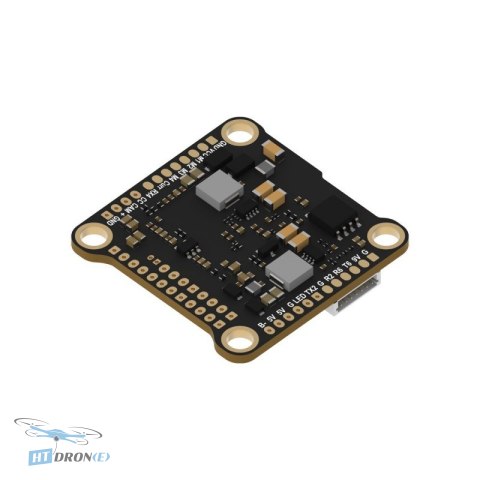

Foxeer F722 V4 Flight Controller for DJI FPV Drones with STM32F722RET6 CPU

Introduction

The Foxeer F722 V4 Flight Controller is a high-performance control unit designed for FPV drone enthusiasts and professionals. Built with a powerful STM32F722RET6 CPU, this flight controller ensures smooth and responsive flight operations, making it suitable for advanced builds including X8 configurations. It offers extensive connectivity and logging features to enhance your flying experience and data analysis.

Key advantages

• Powerful STM32F722RET6 CPU for superior processing speed.
• Wide input voltage range (3-6S LiPo, 11V-30V) for flexible power options.
• 16MB Flash memory for comprehensive flight data logging (Blackbox).
• 6 UART sets providing ample connectivity for peripherals.
• Integrated Betaflight OSD for real-time flight information display.
• Supports X8 configuration with CLI setup required.
• Dual BEC outputs (5V/3A and 9V/3A) for powering various components.
• Durable construction with a standard 30.5x30.5mm mounting pattern.

Technical specifications

• Model: F722 V4
• CPU: STM32F722RET6
• Power Input: 3~6S LiPo (11V~30V)
• BEC Output: DC5V/3A; DC9V/3A
• OSD: BF OSD
• Blackbox: 16MB Flash memory
• UART: 6 sets
• ESC Telemetry: RX4
• Buzzer: Yes
• Smart Audio: Yes
• LED: 1 set 2812 LED
• USB: Type-C
• X8 Support: Required CLI
• Firmware: BF:FOXEERF722V4; Inav: FOXEERF722V4 & FOXEERF722V4 X8
• Dimensions: 37x37mm
• Mounting Hole: 30.5x30.5mm, Φ4 mm
• Weight: 8g
• Operating Temperature: -20 ℃ ~ +55 ℃
• Operating Humidity: 20 ~ 95%
• Storage Temperature: -20 ℃ ~ +70 ℃

Applications

This flight controller is primarily designed for FPV (First Person View) drones, including racing drones, freestyle quads, and cinematic builds. It is also suitable for custom UAV projects requiring robust flight control and data logging capabilities, especially those utilizing an X8 motor configuration.

Compatibility

The Foxeer F722 V4 is compatible with standard FPV setups, offering multiple UART interfaces for receivers, GPS modules, and other accessories. It features a Type-C USB port for easy configuration and firmware updates. The mounting size is standard 30.5x30.5mm, ensuring compatibility with most FPV frames.

FAQ

What is the main application for the Foxeer F722 V4 Flight Controller?

The Foxeer F722 V4 Flight Controller is primarily designed for FPV (First Person View) drones, including racing, freestyle, and cinematic builds. It's also suitable for custom UAV projects requiring advanced control and data logging.

What are the key technical specifications of the Foxeer F722 V4 FC?

This FC features an STM32F722RET6 CPU, supports 3-6S LiPo power input, has 16MB of Flash memory for blackboxing, 6 UART sets, and integrated BF OSD. It uses a Type-C USB interface for configuration.

Is the Foxeer F722 V4 compatible with DJI FPV systems?

Yes, the Foxeer F722 V4 is specified as 'X8 DJI Type-C', indicating compatibility with DJI FPV systems, although specific setup might require CLI commands for certain configurations like X8.

What is the power input and BEC output of the Foxeer F722 V4?

The flight controller supports a wide power input range of 3-6S LiPo (11V-30V). It provides dual BEC outputs: DC5V/3A and DC9V/3A, suitable for powering various onboard components.
