Foxeer F722 V4 Mini FPV Drone Flight Controller STM32F722RET6 2-6S Lipo 4x UART | HTDRONE

Introduction

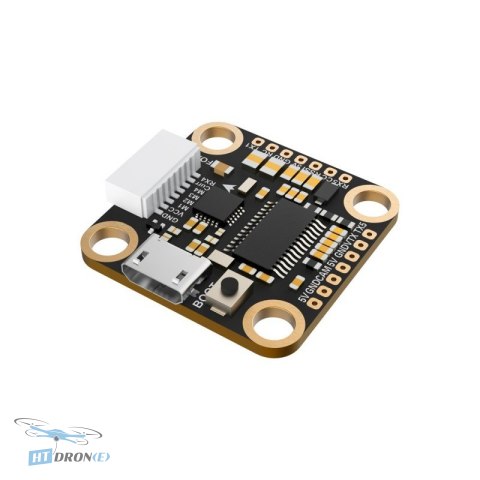

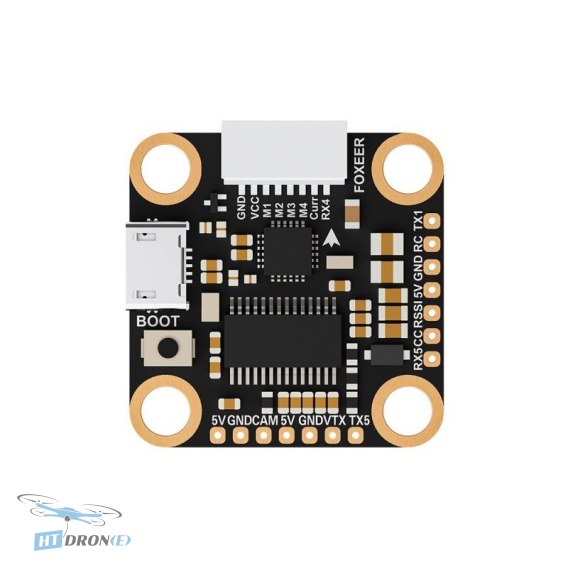

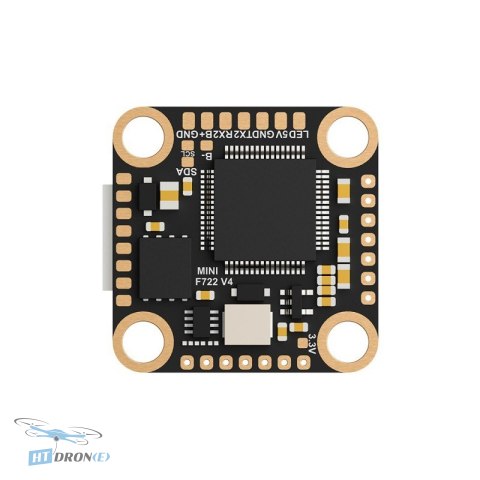

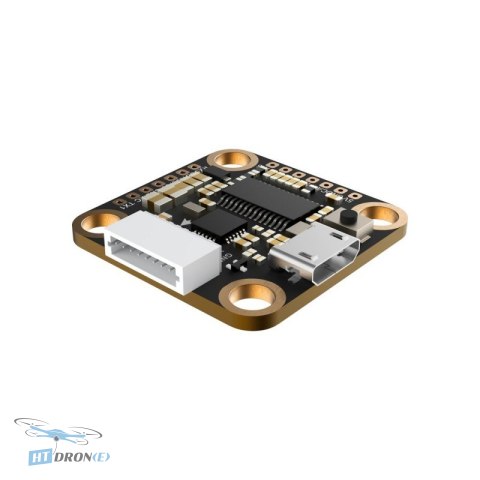

The Foxeer F722 V4 Mini Flight Controller is a compact and high-performance solution designed for FPV drone enthusiasts. Its small 20x20mm mounting size makes it perfect for building lightweight and agile drones, without compromising on power or features. This flight controller is engineered to handle demanding FPV applications, offering reliability and advanced control.

Key advantages

• Compact 20x20mm mounting size, ideal for micro and lightweight FPV builds.
• Supports a wide input voltage range of 2-6S LiPo (6.5V-30V) for versatile power options.
• Equipped with 4x UART sets for extensive peripheral connectivity.
• Integrated 16MB Flash memory for black box data logging.
• Onboard BF OSD for essential flight information display.
• Features 4x UART, Buzzer, Smart Audio, and 2812 LED support.
• Direct remote control compatibility with Foxeer cameras.
• Reliable STM32F722RET6 CPU for smooth and stable flight performance.

Technical specifications

• Model: Mini F722 V4
• CPU: STM32F722RET6
• Power Input: 2-6S Lipo (6.5V-30V)
• BEC Output: DC5V/3A
• OSD: BF OSD
• Blackbox: 16M Flash memory
• UART: 4 sets
• ESC Telemetry: RX4
• Buzzer: Yes
• Smart Audio: Yes
• LED: 1 set 2812 LED
• USB: Micro USB
• Firmware: FOXEERF722V4
• Size: 26x26mm
• Mounting Hole: 20x20mm, Φ4mm
• Weight: 4g
• Operating Temperature: -20°C to +55°C
• Operating Humidity: 20-95%
• Storage Temperature: -20°C to +70°C

Applications

This flight controller is perfectly suited for a wide range of FPV applications, including freestyle, racing, cinematic FPV, and custom drone builds. Its compact size and robust features also make it suitable for smaller UAV projects requiring precise control.

Compatibility

The Foxeer F722 V4 Mini is compatible with 2-6S LiPo batteries. It features 4x UART ports for connecting various peripherals like GPS modules, receivers, and ESCs. It also offers direct integration with Foxeer cameras for streamlined setup and remote control functionality. The 20x20mm mounting pattern ensures compatibility with many modern FPV drone frames.

FAQ

What is the Foxeer F722 V4 Mini Flight Controller best suited for?

The Foxeer F722 V4 Mini Flight Controller is ideal for building lightweight FPV drones, including freestyle, racing, and cinematic models. Its compact size and robust features make it a great choice for custom builds where space and weight are critical.

What voltage range does the Foxeer F722 V4 Mini support?

This flight controller supports a wide input voltage range from 2-6S LiPo batteries, which is equivalent to 6.5V to 30V. This flexibility allows it to be used in various FPV drone configurations.

How many UART ports are available on the Foxeer F722 V4 Mini?

The Foxeer F722 V4 Mini features 4 sets of UART ports. This provides ample connectivity for essential peripherals such as GPS modules, receivers, ESC telemetry, and other accessories needed for advanced FPV setups.

Where can I buy the Foxeer F722 V4 Mini flight controller with reliable delivery?

You can buy the Foxeer F722 V4 Mini flight controller at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your FPV parts quickly.

Does the Foxeer F722 V4 Mini have onboard OSD and Blackbox functionality?

Yes, the Foxeer F722 V4 Mini comes equipped with Betaflight (BF) OSD for displaying flight data on your FPV feed and 16MB of Flash memory for Blackbox data logging, crucial for tuning and analysis.
