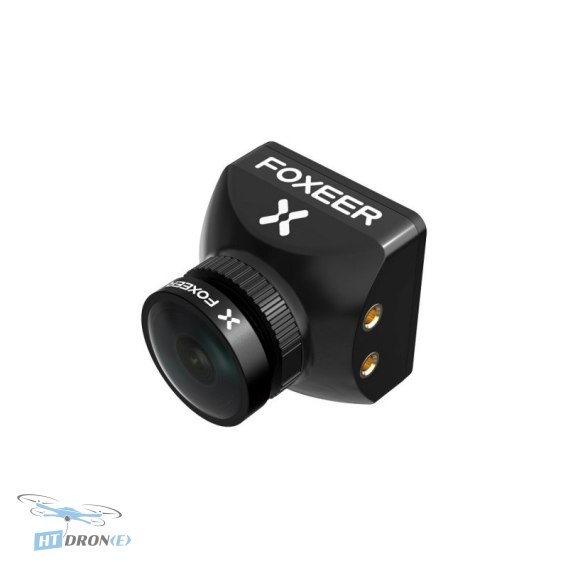

Foxeer Mini Night Cat 3 FPV Camera 1200TVL 0.00001Lux IR Sensitive Night Vision for FPV Drones

Introduction

The Foxeer Mini Night Cat 3 is a high-performance analog FPV camera designed for drone enthusiasts who demand exceptional image quality, especially in low-light environments. Featuring a Sony 1/3" CMOS sensor and an ultra-low minimum illumination of 0.00001 Lux, this camera excels where others fail, providing a clear and detailed view during night flights or in dimly lit conditions. It's the ideal choice for FPV racing, freestyle, and critical aerial applications requiring reliable visual feedback.

Key Advantages

• Exceptional Low-Light Performance: With an astonishing 0.00001 Lux minimum illumination, see clearly in near darkness.
• High Resolution: Boasts 1200TVL resolution for sharp, detailed FPV footage.
• IR Sensitive Night Vision: Optimized for 850nm IR light, enhancing visibility during night operations.
• Versatile Aspect Ratio & TV System: Switchable between 4:3/16:9 aspect ratios and PAL/NTSC systems to suit your preference.
• Wide Field of View: Offers up to 125° diagonal FOV for immersive FPV piloting.
• Durable and Compact Design: Measures 22x22mm and weighs only 12.2g, fitting easily onto most FPV builds.
• Advanced Image Processing: Features 3DNR and 100dB WDR for clean, balanced images in various lighting conditions.
• Multiple OSD Languages: Supports English, Chinese, Russian, Spanish, Italian, French, Polish, Portuguese, Japanese, and Greek.

Technical Specifications

• Sensor Type: Sony 1/3" CMOS Sensor
• IR Compatibility: Works with 850nm IR light
• Aspect Ratio: 4:3 (Default) / 16:9 Switchable
• TV System: PAL (Default) / NTSC Switchable
• Resolution: 1200TVL
• Lens: M12 2.1mm F1.4 Low Light Lens
• Filter: No Filter
• Field of View (FOV) 4:3: FOV-H: 100°, FOV-D: 125°
• Field of View (FOV) 16:9: FOV-H: 100°, FOV-D: 115°
• Shutter Speed PAL: 1/25~1/10000 sec
• Shutter Speed NTSC: 1/30~1/10000 sec
• Video Output: Analog CVBS Signal
• Minimum Illumination: 0.00001 Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 100dB
• Day/Night Mode: EXT / Auto / Color / B&W
• OSD Display: Voltage, Camera Title, Time
• Input Voltage: 4.6V ~ 20V
• Power Consumption: 95mA ±15% @ DC12V
• Operating Temperature: -10° ~ 50°C
• Operating Humidity: 20% ~ 80%
• Storage Temperature: -20° ~ 70°C

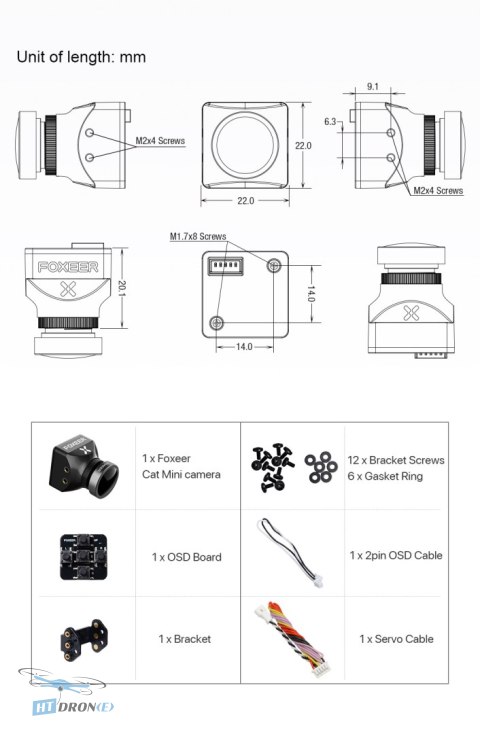

• Dimensions: 22x22mm
• Weight: 12.2g (without cable)
• Supported Languages: English, 中文, русский, Español, Italiano, Français, Polski, Português, 日本语, Ελληνικά
• ODM/OEM Support: Available

Applications

This camera is perfect for FPV racing drones, freestyle quads, long-range exploration FPV setups, and any UAV application where superior night vision and low-light performance are critical. Its versatility makes it suitable for both competitive flying and professional aerial tasks requiring clear visual data in challenging lighting conditions.

Compatibility

The Foxeer Mini Night Cat 3 is compatible with a wide input voltage range from 4.6V to 20V, making it suitable for most FPV drone power systems. It outputs an analog CVBS signal, ensuring broad compatibility with standard FPV video transmitters and goggles. The 22x22mm mounting size is standard for many FPV frames.

FAQ

What makes the Foxeer Mini Night Cat 3 ideal for night flying?

The Foxeer Mini Night Cat 3 camera features an ultra-low minimum illumination of 0.00001 Lux and is sensitive to 850nm IR light, allowing for clear vision even in near-complete darkness. This makes it the best choice for FPV pilots who fly at night or in very low-light conditions.

What is the resolution and video output of this FPV camera?

This camera offers a high resolution of 1200TVL for sharp and detailed images. It outputs an analog CVBS signal, ensuring compatibility with most FPV video transmitters and goggles on the market.

Can I switch between different video formats with the Foxeer Mini Night Cat 3?

Yes, the Foxeer Mini Night Cat 3 allows you to switch between the 4:3 and 16:9 aspect ratios, as well as between PAL and NTSC TV systems. This flexibility ensures it can be adapted to your specific FPV setup and preferences.

What is the power input range for this camera?

The camera operates within a wide input voltage range of 4.6V to 20V. This broad compatibility ensures it can be easily integrated into various FPV drone power systems without issues.

Where can I buy the Foxeer Mini Night Cat 3 FPV camera with fast delivery?

You can order the Foxeer Mini Night Cat 3 FPV camera directly from HTDRONE, your specialized FPV parts store. We offer fast delivery within Poland and reliable worldwide shipping via DHL, ensuring you get your gear quickly.
