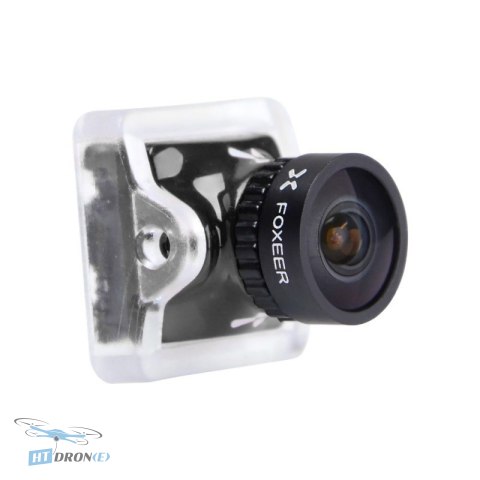

Foxeer Predator V5 Nano Black FPV Analog Camera with Sony 1/3" CMOS Sensor

Introduction

The Foxeer Predator V5 Nano Black is a cutting-edge FPV analog camera designed for drone enthusiasts who demand superior image quality and flexibility. Equipped with a high-performance Sony 1/3" CMOS sensor, this camera provides exceptional detail and clarity, making it perfect for both high-speed FPV racing and intricate freestyle maneuvers. Its compact nano-size form factor ensures easy integration into a wide variety of drone builds without adding significant weight.

Key advantages

• Exceptional Image Clarity: Features a Sony 1/3" CMOS sensor for crisp, high-resolution 1000TVL analog video output.
• Versatile Aspect Ratio & TV System: Switchable 4:3/16:9 aspect ratios and PAL/NTSC TV systems to match your preferred setup.
• Superior Low-Light Performance: With a minimum illumination of 0.01 Lux and Super WDR, it excels in challenging lighting conditions.
• Advanced Image Processing: Utilizes 3DNR and 2DNR noise reduction for cleaner, sharper footage.
• Customizable Imaging Modes: Easily switch between Day, Cloudy, Night, and LED modes for optimal performance.
• Integrated Flight OSD: Displays crucial flight information like voltage, camera title, flight time, and a crosshair directly on your video feed.
• Wide Voltage Input: Supports a broad 4.5V-20V power range, offering flexibility in setup.
• Durable and Lightweight Design: Compact dimensions (14x14mm, 19x19mm with bracket) and minimal weight (4.3-4.8g) for optimal drone performance.

Technical specifications

• Sensor: Sony 1/3" CMOS
• Resolution: 1000TVL
• Aspect Ratio: Switchable 4:3 (default) / 16:9
• TV System: Switchable PAL (default) / NTSC
• Field of View (FOV-H): 125°
• Field of View (FOV-D): 155°
• Minimum Illumination: 0.01 Lux
• Dynamic Range: Super WDR
• Noise Reduction: 3DNR & 2DNR
• Image Modes: Day, Cloudy, Night, LED (quick switch via right button long press)
• Flight OSD: Voltage, Camera Title, Flight Time, Crosshair
• Video Flip Mode: Supported
• Shutter Speed: PAL: 1/25-1/10000 sec; NTSC: 1/30-1/10000 sec
• Power Input: 4.5V-20V
• Power Consumption: 50mA ± 15% @ 12V; 115mA ± 15% @ 5V
• Dimensions: 14x14mm (body); 19x19mm (with bracket)
• Weight: 4.8g (plug); 4.3g (solder pad, without cable)
• Operating Temperature: -10°C to 50°C
• Operating Humidity: up to 90%
• Storage Temperature: -20°C to 70°C
• Language Support: English, German, French, Portuguese, Spanish, Chinese

Applications

This camera is perfectly suited for FPV racing drones, freestyle FPV quadcopters, and other UAV applications where high-quality analog video transmission is required. Its robust features make it ideal for pilots operating in diverse environmental conditions and flight scenarios.

Compatibility

With a wide input voltage range (4.5V-20V) and standard mounting dimensions (14x14mm body, 19x19mm bracket), the Foxeer Predator V5 Nano Black is compatible with most FPV flight controllers and frames. The camera supports both PAL and NTSC video standards, ensuring compatibility with a wide array of FPV goggles and video transmitters.

FAQ

What makes the Foxeer Predator V5 Nano Black ideal for FPV racing and freestyle?

The Foxeer Predator V5 Nano Black features a high-resolution Sony 1/3" CMOS sensor delivering 1000TVL analog video, ensuring clear visuals during high-speed FPV racing and complex freestyle maneuvers. Its compact size and lightweight design are perfect for performance-oriented drone builds.

Can this FPV camera handle challenging lighting conditions?

Yes, the Predator V5 Nano boasts excellent low-light performance with 0.01 Lux sensitivity and includes Super WDR technology. This allows it to capture detailed images even in high-contrast scenes or dimly lit environments, making it versatile for various times of day.

What are the key technical specifications of the Foxeer Predator V5 Nano Black?

It features a Sony 1/3" CMOS sensor, 1000TVL resolution, switchable 4:3/16:9 aspect ratios, and PAL/NTSC TV systems. It supports a wide 4.5V-20V input voltage and has a low power consumption, making it adaptable for many FPV setups.

Where can I buy the Foxeer Predator V5 Nano Black FPV camera with reliable delivery?

You can buy the Foxeer Predator V5 Nano Black FPV camera at HTDRONE, your specialized FPV drone parts store based in Poland. We offer fast international delivery via DHL for customers worldwide. Check our shop for the best deals and order yours today!

Does the Foxeer Predator V5 Nano Black offer customizable settings?

Yes, it offers multiple configurable modes including Day, Cloudy, Night, and LED settings, which can be quickly switched using the right button. It also includes Flight OSD to display essential flight data like voltage and time directly on your video feed.
