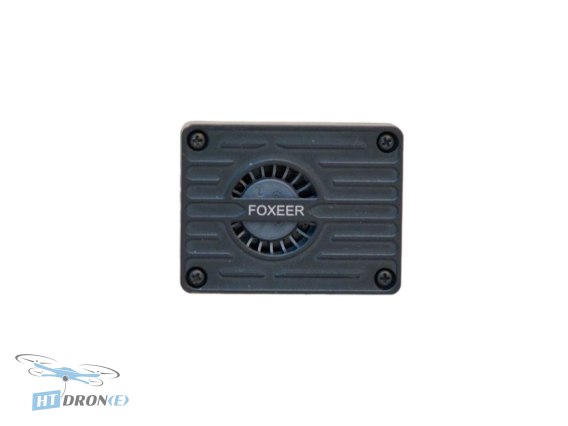

Foxeer Reaper Extreme 3W 80CH FPV VTX for Long Range and High Interference

Introduction

The Foxeer Reaper Extreme 3W VTX is a state-of-the-art video transmitter designed for demanding FPV drone applications. Engineered for exceptional performance, it provides an ultra-strong and clean video signal, making it the ideal choice for pilots who push the boundaries in terms of range and operate in environments prone to signal interference. With its extensive channel support and powerful output, this VTX ensures you maintain a clear video feed when it matters most.

Key advantages

• High Power Output: Delivers up to 3W of power for exceptional video signal strength and range.
• Built-in Microphone: Enhances your FPV experience by transmitting audio along with video.
• CNC Heat Dissipation Case: Ensures efficient cooling, maintaining optimal performance during intense use.
• Superior Interference Rejection: Features an advanced filter circuit for robust resistance against interference.
• Wide Channel Support: Offers 80 channels for flexible frequency selection and broad compatibility.
• Adjustable Power Levels: Selectable power output from 25mW up to 3W to suit different flight conditions and regulations.
• PIT Mode: Easily engage PIT mode for reduced power output, ideal for pre-flight checks or landing.
• Durable Construction: Built with quality components for reliability in FPV operations.

Technical specifications

• Model Name: Reaper Extreme 3W V2
• Input Voltage: 9~36 V
• Output Voltage: 5 V
• Channels: 80CH
• Power Output: 25 mW/200 mW/500 mW/1.5 W/3 W
• PIT Mode: Double-click to enter
• Fan: Yes
• Weight: 15.2 g
• Dimensions: 38 x 29.2 x 11.5 mm
• Power Consumption: 1.4 A/10 V

Applications

This VTX is perfectly suited for a wide range of FPV applications, including long-range exploration, high-speed racing, freestyle flying, and any scenario where a reliable, high-quality video signal is critical. Its robust interference resistance makes it suitable for use in crowded RF environments.

Compatibility

The Foxeer Reaper Extreme 3W VTX is compatible with standard FPV systems. It supports multiple power output levels and features a PIT mode accessible via a button. Note: If a tramp cable is connected, the button control for frequency and power will be overridden by the flight controller. BetaFlight supports a maximum of 64 channels; users must remove 2 bands before inputting into BetaFlight.

FAQ

What is the maximum power output of the Foxeer Reaper Extreme 3W VTX?

The Foxeer Reaper Extreme 3W VTX offers a maximum power output of 3W. This high power ensures a strong and stable video signal, crucial for long-range FPV flights and overcoming interference.

Does the Foxeer Reaper Extreme 3W VTX have a built-in microphone?

Yes, the Foxeer Reaper Extreme 3W VTX includes a built-in microphone. This feature allows you to transmit audio along with your video feed, enhancing your overall FPV immersion.

What are the dimensions and weight of the Foxeer Reaper Extreme 3W VTX?

The Foxeer Reaper Extreme 3W VTX measures 38 x 29.2 x 11.5 mm and weighs 15.2 grams. Its compact size and light weight make it suitable for a wide range of FPV drone builds.

Can I adjust the power output on the Foxeer Reaper Extreme 3W VTX?

Yes, the Foxeer Reaper Extreme 3W VTX allows you to select different power output levels: 25mW, 200mW, 500mW, 1.5W, and 3W. This flexibility helps you comply with regulations and optimize performance for your flight conditions.
