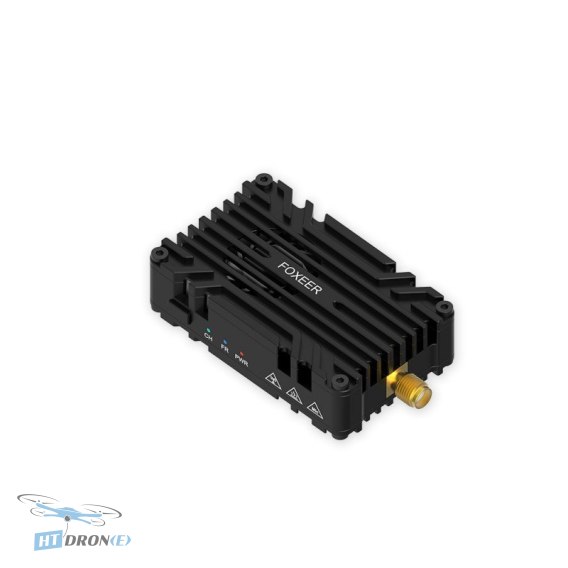

Foxeer Reaper Infinity 10W 4.9G-6G FPV VTX - Long Range Transmission

Introduction

The Foxeer Reaper Infinity 10W is a high-power video transmitter (VTx) specifically engineered for FPV enthusiasts engaged in long-range flying. It addresses the need for a reliable, versatile, and powerful video transmission solution, offering pilots enhanced control over their signal strength and clarity. Whether you're pushing the boundaries of your flight range or seeking a stable feed for cinematic FPV, this VTX is built to perform.

Key advantages

• High adjustable transmission power (1W, 2.5W, 5W, 7.5W, 10W) for extended range and signal integrity.
• Wide input voltage range (9-36V) ensures compatibility with various power systems.
• Supports 80 frequency channels to minimize interference and maximize flexibility.
• Compact and lightweight design (66x37x16mm, 48g) for easy integration into drone builds.
• Durable construction with standard mounting options (20x20mm, M2 screws).
• Convenient Pit mode for safe setup and testing.

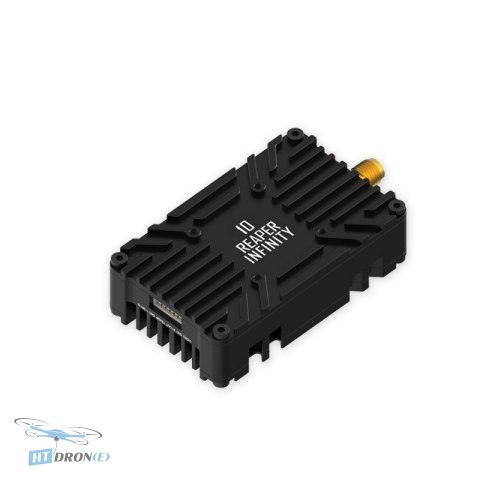

• Reliable SMA antenna connector and GH1.25 6-pin power connector.
• Stable 5V output for connected components.

Technical specifications

• Model: Reaper Infinity 10W
• Frequency Range: 4.9G~6G
• Input Voltage: 9-36V
• Output Voltage: 5V
• Adjustable Transmission Power: 1W, 2.5W, 5W, 7.5W, 10W
• Channels: 80CH
• Pit Mode: Yes (double-click activation)
• Antenna Connector: SMA
• Cable Connector: GH1.25 6-pin
• Mounting Holes: 20x20mm (2.5mm depth)
• Screws: M2

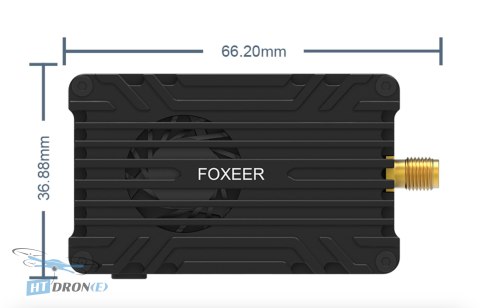

• Dimensions: 66 x 37 x 16 mm
• Weight: 48g
• Power Consumption: 10V @ 3.3A, 20V @ 1.5A
• Max Power Consumption: 10W

Applications

This VTX is ideal for long-range FPV, freestyle FPV, drone racing, aerial photography, and any application requiring robust and clear video transmission over significant distances. It's suitable for pilots who demand the best performance and reliability from their equipment.

Compatibility

The Foxeer Reaper Infinity 10W VTX is compatible with a wide range of FPV setups due to its broad input voltage range (9-36V) and standard mounting dimensions (20x20mm). It features an SMA antenna connector and a GH1.25 6-pin for power and control signals, ensuring easy integration with most flight controllers and power distribution boards. It provides a stable 5V output, suitable for powering compatible cameras or other accessories.

FAQ

What is the maximum transmission power of the Foxeer Reaper Infinity 10W VTX?

The Foxeer Reaper Infinity 10W VTX offers adjustable transmission power levels including 1W, 2.5W, 5W, 7.5W, and a maximum of 10W, providing flexibility for different flight conditions and range requirements.

What is the input voltage range for this FPV transmitter?

This VTX supports a wide input voltage range of 9-36V, making it compatible with a variety of battery setups and power systems commonly used in FPV drones.

How many channels does the Foxeer Reaper Infinity 10W support?

The Reaper Infinity 10W supports 80 frequency channels. This wide selection helps minimize interference from other devices and allows for more flexible channel selection during flights.

What are the dimensions and weight of the Reaper Infinity 10W VTX?

The VTX has compact dimensions of 66 x 37 x 16 mm and weighs only 48g, making it suitable for builds where weight and space are critical considerations.

Where can I buy the Foxeer Reaper Infinity 10W VTX with fast delivery?

You can buy the Foxeer Reaper Infinity 10W VTX at HTDRONE. We are based in Poland and offer fast worldwide shipping via DHL, ensuring you receive your FPV gear quickly and reliably.
