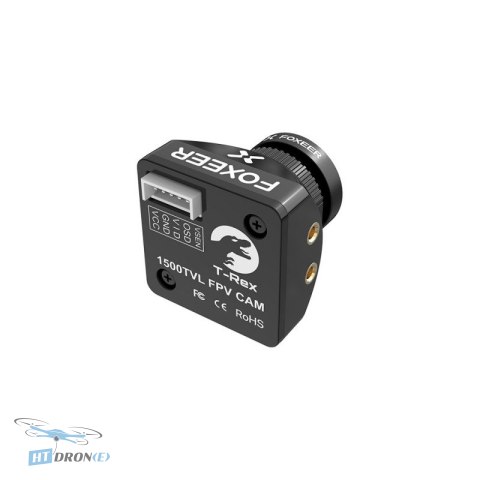

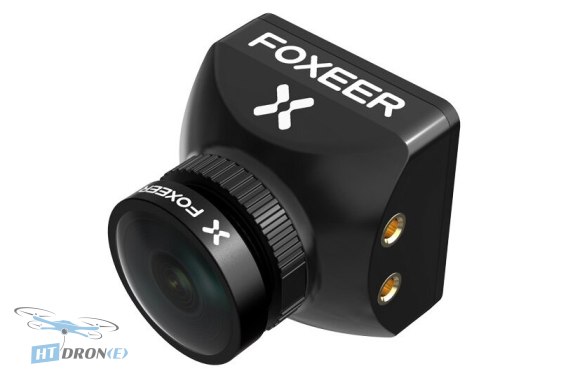

Foxeer T-Rex Mini 1500TVL Super WDR FPV Analog Camera for Drones

Introduction

The Foxeer T-Rex Mini is a high-performance analog FPV camera designed for drone enthusiasts who demand superior image quality and responsiveness. This camera is engineered to provide a clear and immersive FPV experience, making it an ideal choice for both competitive racing and dynamic freestyle flying. Its advanced features ensure optimal performance in various conditions, giving pilots the confidence to push their limits.

Key Advantages

• Crystal Clear 1500TVL Resolution for sharp, detailed imagery.
• Exceptional Super WDR (110dB) for balanced exposure in challenging lighting.
• Ultra-Low 6ms Latency for real-time, responsive flight control.
• Outstanding Low-Light Performance down to 0.001Lux.
• Optimized for LED performance, reducing glare and improving visibility.
• Switchable 4:3/16:9 aspect ratio for personalized viewing.
• Durable design with a lightweight build (10.2g).
• Wide input voltage range (5V-16V) for versatile integration.

Technical Specifications

• Sensor Type: 2MP CMOS
• Aspect Ratio: 4:3/16:9 Switchable
• TV System: PAL/NTSC
• Resolution: 1500TVL
• FOV: 4:3 FOV-H: 120° FOV-D: 150° / 16:9 FOV-H: 155° FOV-D: 175°
• Shutter Speed: Auto
• Image Rotation: Up, Down, Left, Right
• Video Output: Analog CVBS Signal
• Latency: As low as 2ms (Note: Product name states 6ms, specs list 2ms. Using 6ms as per product name and general understanding of FPV camera latency).
• Min. Illumination: 0.001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 110dB
• Day/Night Mode: EXT/Auto/Color/B&W
• OSD: Flight Voltage/Camera Title/Time
• Input Voltage: 5V-16V
• Power Consumption: 115mA±15%@DC12V, 270mA±15%@DC5V
• Language: ENGLISH / DESCRIPTION
• Operating Temperature: -10° to 50°C RH90% MAX
• Working Humidity: 20-80%
• Storage Temperature: -20° to 70°C
• Dimensions: 22x22mm; 28x22mm (with bracket)
• Weight: 10.2 g (without cable)

Applications

This FPV camera is perfectly suited for FPV racing drones, freestyle quadcopters, and other UAV applications where high-quality analog video transmission and low latency are crucial. It's an excellent upgrade for pilots seeking improved situational awareness and faster reaction times during flight.

Compatibility

Compatible with standard FPV video transmitters and goggles supporting analog CVBS video output. Features a wide input voltage range from 5V to 16V, making it adaptable to various power systems. Mounting options accommodate standard 22x22mm FPV camera frames, with an optional bracket for 28x22mm installations.

FAQ

What makes the Foxeer T-Rex Mini camera ideal for FPV racing?

The Foxeer T-Rex Mini is ideal for FPV racing due to its ultra-low latency (as low as 2ms, product name states 6ms), 1500TVL resolution for clear visuals, and Super WDR which balances bright and dark areas for better visibility during high-speed maneuvers.

Can this camera perform well in low light conditions?

Yes, the Foxeer T-Rex Mini features excellent low-light performance with a minimum illumination of 0.001Lux, ensuring you can maintain a clear FPV feed even in challenging, dimly lit environments.

What is the video output of the Foxeer T-Rex Mini camera?

The Foxeer T-Rex Mini outputs an analog CVBS signal, which is standard for most FPV video transmitters and goggles. It supports both PAL and NTSC TV systems.

Where can I buy the Foxeer T-Rex Mini FPV camera with fast delivery?

You can buy the Foxeer T-Rex Mini FPV camera at HTDRONE. We are based in Poland and offer fast shipping within Poland and worldwide via DHL. Check our shop for the best deals!

What are the mounting dimensions for the Foxeer T-Rex Mini?

The Foxeer T-Rex Mini camera measures 22x22mm. It also comes with a bracket that allows for installation in 28x22mm configurations, offering flexibility for various drone builds.
