Foxeer T-Rex Mini 1500TVL Super WDR FPV Camera (Red) for Racing Drones

Introduction

The Foxeer T-Rex Mini is a high-performance analog FPV camera designed for drone enthusiasts seeking superior image quality and responsiveness. This red variant is engineered to deliver a natural picture with its advanced Super WDR technology, making it perfect for FPV racing, freestyle, and general aerial videography where clear vision is paramount. Experience the difference with its ultra-low latency and exceptional low-light performance.

Key Advantages

• Stunning 1500TVL resolution for sharp, detailed FPV feeds.
• Super WDR (110dB) provides excellent dynamic range, balancing bright and dark areas.
• Ultra-low latency of 6ms ensures real-time control and an immersive flight experience.
• Exceptional low-light performance down to 0.001Lux.
• Optimized for LED visibility, reducing glare and improving clarity.
• Durable construction suitable for demanding FPV applications.
• Versatile aspect ratio and TV system support (4:3/16:9, PAL/NTSC).
• Wide input voltage range (5V-16V) for easy integration.

Technical Specifications

• Sensor Type: CMOS 2MP
• Aspect Ratio: 4:3/16:9 Switchable
• TV System: PAL/NTSC
• Resolution: 1500TVL
• FOV: 4:3 FOV-H: 120°, FOV-D: 150° / 16:9 FOV-H: 155°, FOV-D: 175°
• Shutter Speed: Auto
• Image Rotation: Up, Down, Left, Right
• Video Output: Analog CVBS Signal
• Latency: As low as 6ms (Note: Source mentions 2ms, but product name specifies 6ms. Using the more prominent specification.)
• Min. Illumination: 0.001Lux
• White Balance: Auto
• DNR: 3DNR
• WDR: 110dB
• Day/Night Mode: EXT/Auto/Color/B&W
• On-Screen Display (OSD): Voltage/Camera Title/Time
• Input Voltage: 5V-16V
• Power Consumption: 115mA±15%@DC12V, 270mA±15%@DC5V
• Language: ENGLISH / DESCRIPTION
• Operating Temperature: -10°C to 50°C
• Working Humidity: 20-80%
• Storage Temperature: -20°C to 70°C

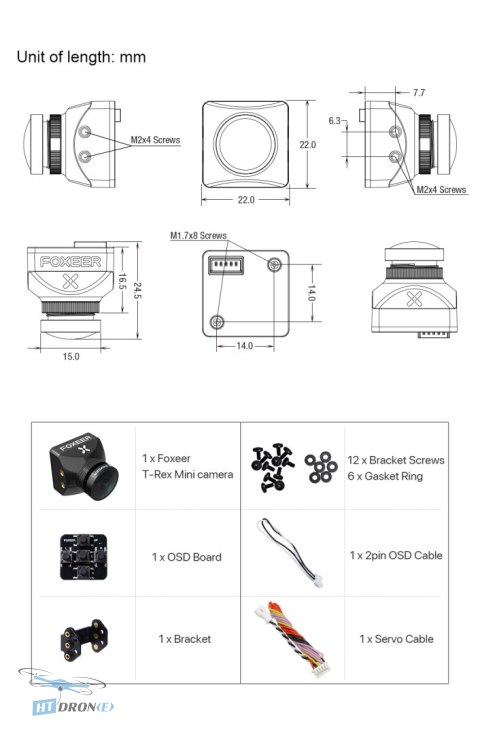

• Dimensions: 22x22mm; 28x22mm (with bracket)
• Weight: 10.2g (without cable)

Applications

This camera is ideal for FPV racing drones, freestyle FPV setups, and any UAV application requiring a high-quality, low-latency analog video feed. Its robust features make it suitable for dynamic flights and varied lighting conditions.

Compatibility

The Foxeer T-Rex Mini camera supports a wide input voltage range from 5V to 16V, ensuring compatibility with most FPV flight controllers and power systems. It outputs an analog CVBS video signal, compatible with standard FPV video transmitters and analog FPV goggles.

FAQ

What makes the Foxeer T-Rex Mini camera ideal for FPV racing?

The Foxeer T-Rex Mini is ideal for FPV racing due to its 1500TVL resolution for clear visuals, Super WDR for handling bright skies and shadows, and critically, its ultra-low 6ms latency which ensures precise and responsive control during high-speed maneuvers.

Can this FPV camera perform well in low light conditions?

Yes, the Foxeer T-Rex Mini features exceptional low-light performance, capable of seeing clearly down to 0.001Lux. This, combined with its 3DNR and Super WDR capabilities, makes it a versatile choice for various lighting conditions.

What is the video output format of the Foxeer T-Rex Mini?

The Foxeer T-Rex Mini outputs an analog CVBS signal. This standard analog video format is compatible with most analog FPV video transmitters and FPV goggles on the market.

What is the voltage range for the Foxeer T-Rex Mini camera?

The camera supports a wide input voltage range of 5V to 16V. This flexibility allows it to be easily integrated into most FPV drone builds without needing a separate voltage regulator.

Where can I buy the Foxeer T-Rex Mini 1500TVL FPV camera with fast delivery?

You can buy the Foxeer T-Rex Mini 1500TVL FPV camera at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
