GEPRC CineLog35 Analog ELRS 2.4G 4S Cinewhoop FPV Drone

Introduction

The GEPRC CineLog35 Analog FPV Drone represents a significant upgrade from its predecessor, the CineLog30. Engineered for stability and durability, this Cinewhoop model boasts an integrated protective shroud design, making its overall structure stronger and more resilient. It's ideal for pilots who demand reliability and high performance in their FPV adventures, whether for cinematic flights or freestyle maneuvers. Experience the next level of FPV flight with the GEPRC CineLog35.

Key advantages

• Enhanced durability with an integrated protective shroud design.
• Powerful performance driven by GR2004 2550KV motors and HQProp DT90MMX3 propellers.
• Upgraded flight controller (GEP-F722-35A AIO) for faster computation and stable electronic system operation.
• Versatile mounting options for action cameras like GoPro 9/10, Insta360 GO2, and Caddx Peanut.
• Reliable ELRS 2.4G receiver for consistent control link.
• High-quality Caddx Ratel2 camera for clear FPV feed.
• 5 UART ports provide excellent expandability for additional modules.
• Optimized power system for greater output, suitable for 4S LiPo batteries.

Technical specifications

• Model: CineLog35 Analog
• Brand: GEPRC
• Frame: GEP-CL35
• Wheelbase: 142mm
• Top Plate: 2.5mm
• Bottom Plate: 2.0mm
• Arm Plate: 3.5mm
• FC System: GEP-F722-35A AIO
• MCU: STM32F722
• Gyroscope: 6-axis
• OSD: BetaFlight OSD with AT7456E chip
• ESC: BLheli_S 45A
• VTX: 600mW VTX wired
• Camera: Caddx Ratel2
• Propeller: HQProp DT90MMX3
• Antenna: Momoda Long version MMCX RHCP 195mm Antenna
• Motor: GR2004 2550KV
• Weight: 220.5g
• Receiver: ELRS 2.4G
• Recommended Battery: LiPo 4S 850mAh-1500mAh

Applications

This FPV drone is designed for a variety of applications including cinematic FPV flying, freestyle piloting, and capturing high-quality aerial footage. Its robust design and camera mounting capabilities make it suitable for recording action sports or creating professional video content. The ELRS 2.4G system ensures a reliable connection for precise control during complex maneuvers.

Compatibility

The GEPRC CineLog35 Analog is designed to be compatible with GoPro 9 and 10, Insta360 GO2, and Caddx Peanut cameras using included 3D printed mounts. It operates with 4S LiPo batteries (850mAh-1500mAh recommended) and features 5 UART ports for potential expansion. The integrated Caddx Ratel2 camera and ELRS 2.4G receiver provide a complete, ready-to-fly analog FPV experience.

FAQ

What is the GEPRC CineLog35 Analog FPV Drone best suited for?

The GEPRC CineLog35 Analog FPV Drone is best suited for cinematic FPV flying and freestyle piloting. Its robust design, integrated protective shroud, and camera mounting options make it ideal for capturing high-quality aerial footage.

What flight controller and ESC system does the CineLog35 Analog use?

The GEPRC CineLog35 Analog utilizes the GEP-F722-35A AIO flight controller system with an STM32F722 MCU and a 6-axis gyroscope. The ESC is a BLheli_S 45A, ensuring stable and reliable power delivery to the motors.

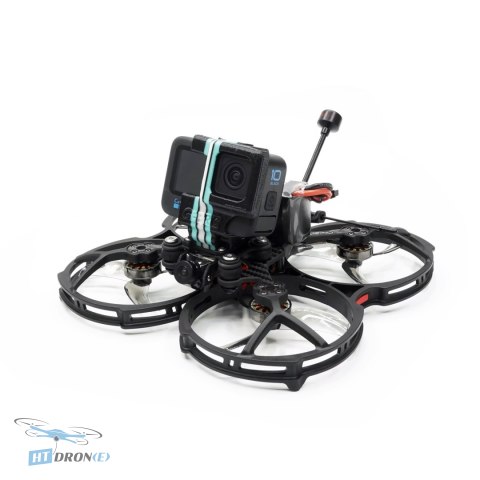

Can I mount action cameras on the GEPRC CineLog35?

Yes, the GEPRC CineLog35 comes with a 3D printed mount for installing cameras like the GoPro 9/10, Insta360 GO2, or Caddx Peanut. This allows for capturing high-quality video footage during your flights.

What is the recommended battery for the CineLog35 4S Analog drone?

The recommended battery for the GEPRC CineLog35 Analog drone is a LiPo 4S battery with a capacity between 850mAh and 1500mAh. This provides a good balance of power and flight time for the 4S system.

Where can I buy the GEPRC CineLog35 Analog FPV Drone and what are the shipping options?

You can buy the GEPRC CineLog35 Analog FPV Drone directly from HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL. Shipping to Ukraine is also available via Nova Poshta (Нова Пошта).
