GEPRC Cinelog30 V3 WTFPV ELRS 2.4GHz FPV Drone - Cinematic Flight PNP

Introduction

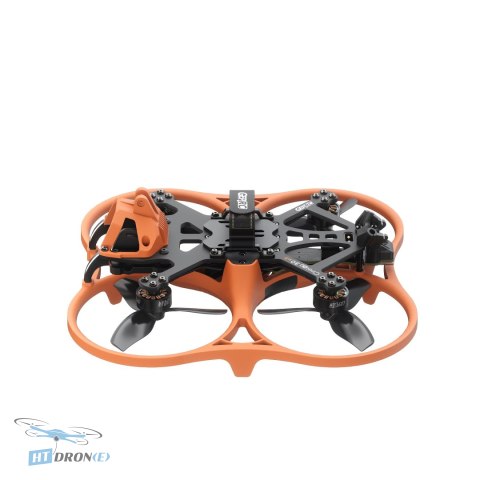

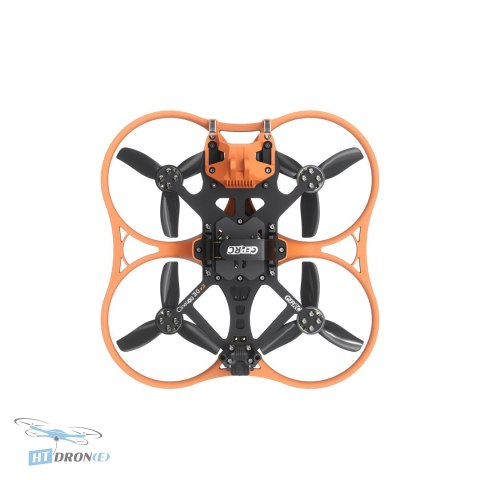

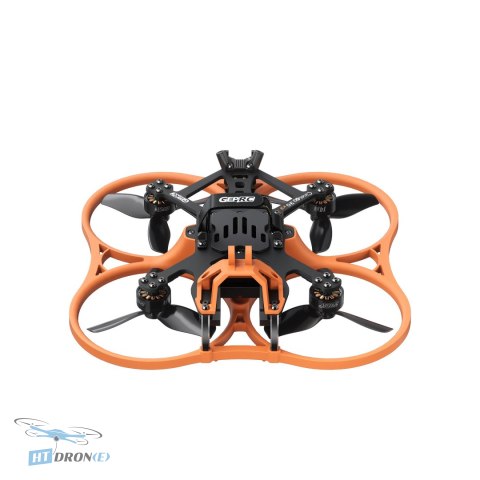

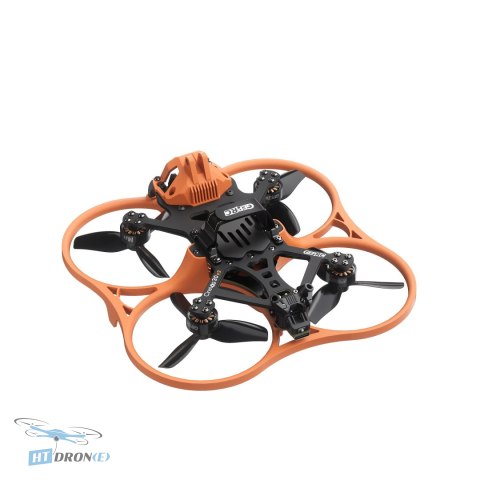

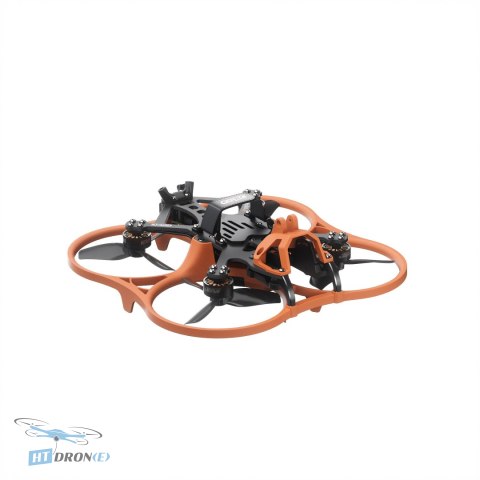

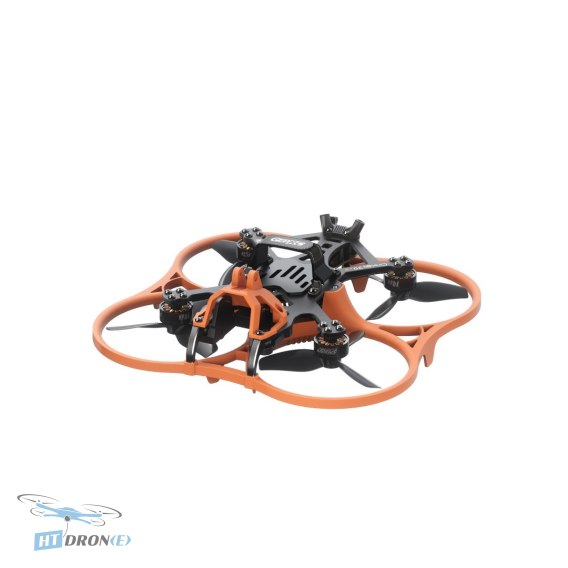

The GEPRC Cinelog30 V3 WTFPV is a high-performance 3-inch FPV drone meticulously designed for stable, cinematic aerial footage, especially in confined spaces. As part of the advanced Cinelog30 V3 series, it boasts a robust construction featuring aluminum-reinforced frame elements and a protected electronic bay, safeguarding critical components during flights and potential impacts. This PNP (Plug-N-Play) version empowers pilots with the freedom to integrate their chosen VTX, camera, and antennas, tailoring the drone to their specific FPV setup and preferences. It's the ideal choice for creators and hobbyists seeking a versatile platform for capturing breathtaking video content.

Key Advantages

• Exceptional cinematic flight performance ideal for smooth video capture.
• Durable construction with aluminum-reinforced frame for enhanced resilience.
• PNP configuration offers full customization of FPV components (VTX, Camera, Antennas).
• Powerful GEPRC SPEEDX2 1404 3850KV motors for efficient and quiet operation.
• Precise control with HQprop DT76mmx3 V2 tri-blade propellers.
• Integrated ELRS 2.4GHz receiver for reliable, long-range control.
• Optimized for 4S LiHV batteries for consistent power delivery.
• Compact 128mm wheelbase perfect for indoor and tight-space flying.

Technical Specifications

• Model: Cinelog30 V3 WTFPV Quadcopter
• Frame Model: GEP-CL30 V3
• Carbon Fiber Plate Thickness: 2.5mm
• Wheelbase: 128mm
• Flight System: TAKER F722 45A 32Bit AIO
• MCU: STM32F722RET6
• Gyroscope: ICM 42688-P
• FC Firmware: GEPRC_F722_AIO
• Flash Memory: 16MB
• ESC: 32Bit 45A
• Motor: SPEEDX2 1404 3850KV
• Propeller: HQprop DT76mmx3 V2
• Battery Connector: XT30
• VTX: None (Requires separate purchase)
• Camera: None (Requires separate purchase)
• Antenna: None (Requires separate purchase)
• Receiver: ELRS 2.4GHz
• Weight: 148 ± 2g
• Recommended Battery: LiHV 4S 660mAh-720mAh
• Flight Time: Approximately 8'10″ (Tested at low cruising speeds; actual times may vary based on flight method)

Applications

This FPV drone is primarily designed for cinematic FPV flying, aerial photography, and videography in various environments, including indoor spaces and tight locations. Its customizable nature makes it suitable for hobbyists looking to build a personalized FPV experience. It is also excellent for freestyle FPV flying where smooth, controlled maneuvers are desired.

Compatibility

The GEPRC Cinelog30 V3 WTFPV utilizes an XT30 battery connector and is compatible with 4S LiHV batteries ranging from 660mAh to 720mAh. As a PNP drone, it requires the user to supply their own VTX, FPV camera, and antennas. The integrated ELRS 2.4GHz receiver ensures compatibility with ExpressLRS radio transmitters.

FAQ

What is the GEPRC Cinelog30 V3 WTFPV drone designed for?

The GEPRC Cinelog30 V3 WTFPV drone is specifically designed for smooth, stable, and cinematic FPV flights, making it ideal for capturing high-quality video footage, especially in confined spaces like indoors.

Is this drone ready to fly out of the box?

No, the GEPRC Cinelog30 V3 WTFPV is a PNP (Plug-N-Play) version. This means it comes without a VTX, FPV camera, or antennas, allowing you to customize these crucial components to your preference. You will need to supply and install these parts yourself.

What type of battery does the Cinelog30 V3 WTFPV use?

This drone uses an XT30 battery connector and is recommended for use with 4S LiHV batteries, specifically in the 660mAh to 720mAh capacity range for optimal performance and flight time.

What are the key advantages of the GEPRC Cinelog30 V3 V3 WTFPV drone?

Key advantages include its durable aluminum-reinforced frame, powerful yet quiet motors, precise control from HQprop propellers, and the flexibility of the PNP configuration. Its 3-inch size and 128mm wheelbase make it perfect for agile indoor flying.
