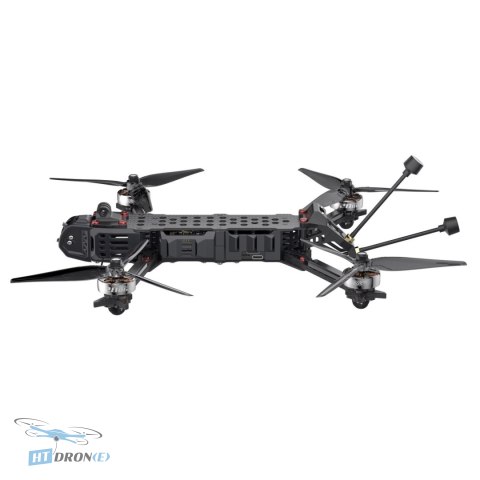

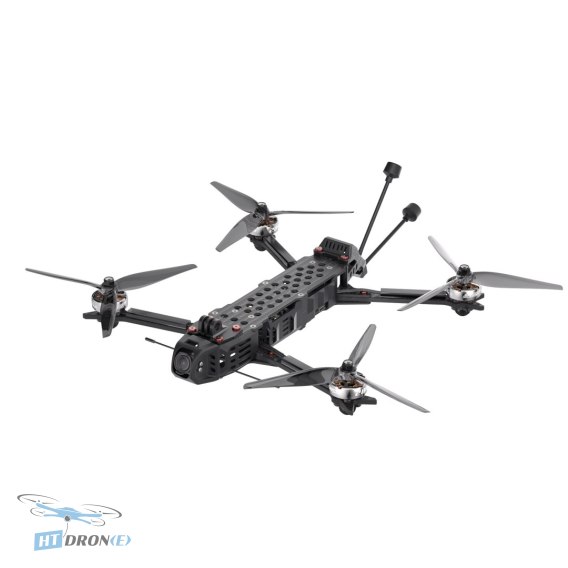

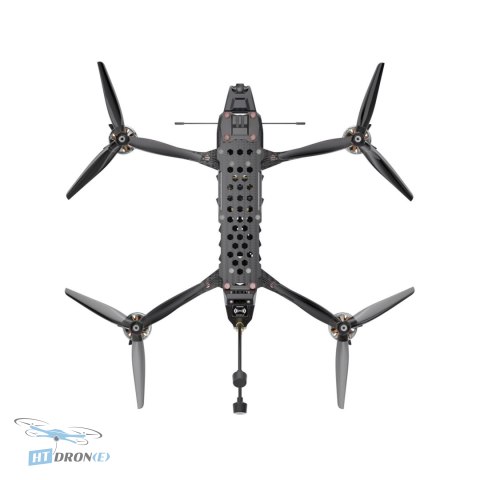

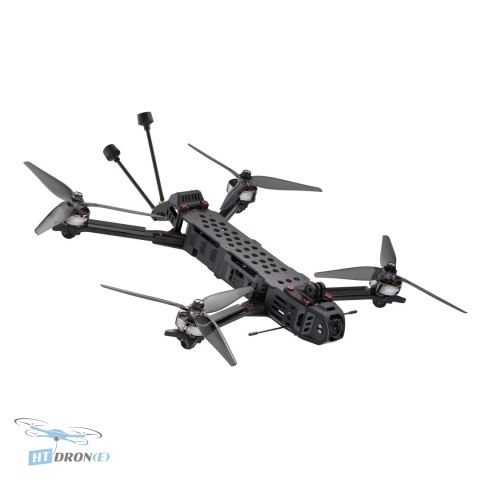

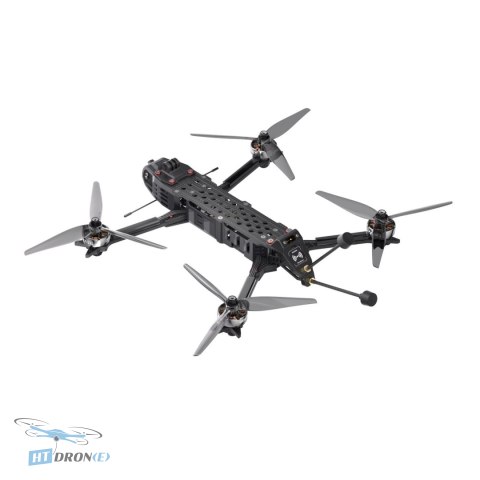

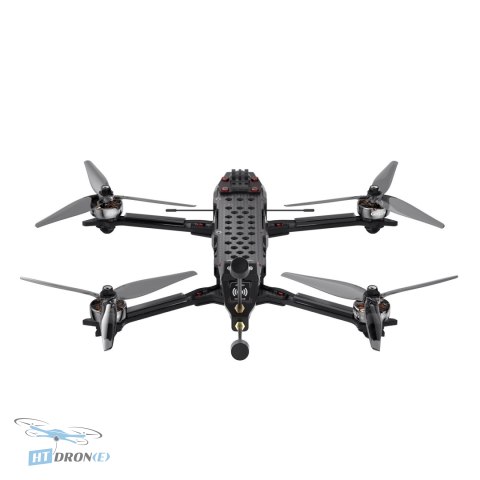

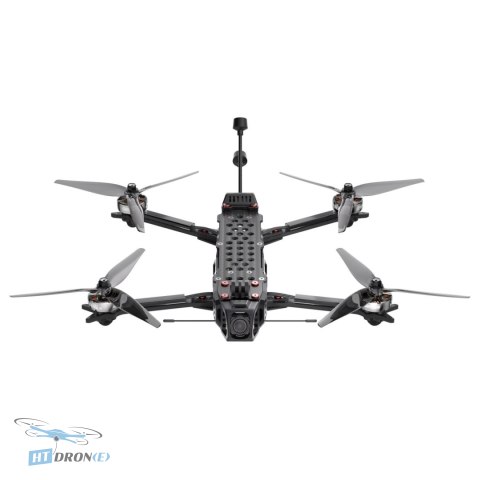

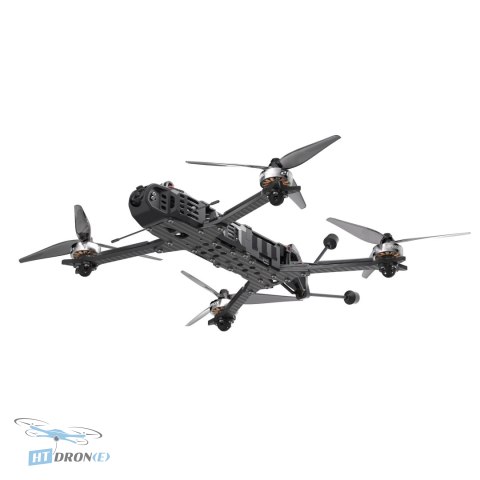

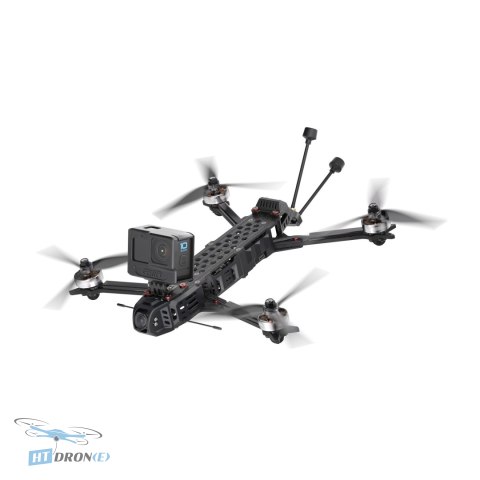

GEPRC Crocodile75 V3 Analog FPV Drone ELRS 2.4G Long Range Series

Introduction

The GEPRC Crocodile75 V3 Analog is an advanced FPV drone engineered for exceptional long-range performance and flight stability. Its innovative design focuses on a reinforced fuselage structure to minimize vibrations, ensuring smoother flights and clearer data capture. This model is perfect for enthusiasts and professionals looking for a reliable platform for extended aerial exploration and high-quality FPV experiences.

Key advantages

• Innovative design with a reinforced fuselage structure to reduce gyroscopic data interference.
• Powerful SPEEDX2 2806.5 1350KV motors paired with HQProp7.5×3.7×3 propellers for ample thrust and efficiency.
• Upgraded SPAN G50A BLHeli_32 4IN1 ESC for reliable power management.
• Integrated O3 Air Unit with a dedicated cooling radiator to prevent overheating and ensure continuous recording.
• Protective side panels shield the electronic control system from sand and dust contamination.
• Convenient integrated battery plug design for simplified operation and a clean aesthetic.
• Extended airframe supports large capacity batteries, including 6S 3300mAh-4500mAh LiPo or 6S 6000mAh Li-Ion.
• Optimized for 7-inch or 7.5-inch propellers for maximum flight performance.

Technical specifications

• Model: Crocodile75 V3 Analog
• Frame: GEP-LC75 V3
• Wheelbase: 342mm
• Top Plate: 2.5mm
• Bottom Plate: 3.0mm
• Arm Plate: 6.0mm
• Rail Plate: 2.5mm
• FC: SPAN F722-BT-HD V2
• ESC: SPAN G50A BLHeli_32 4IN1
• MCU: STM32F722RET6
• Gyroscope: ICM 42688-P
• OSD: Betaflight OSD with AT7456E chip
• VTX: GEPRC RAD 5.8G 1.6W
• Camera: Caddx Ratel2
• GPS: GEP-M8U
• Antenna: Momoda 5.8G RHCP RP-SMA 120mm
• Motor: SPEEDX2 2806.5 1350KV
• Propeller: HQProp7.5×3.7×3
• Weight: 597.5g
• Receiver: GEPRC ELRS 2.4G
• Recommended Battery: 6S 2600mAh-4200mAh LiPo / 6S 6000mAh Li-Ion
• Flight Time: 12-30 min

Applications

This drone is perfectly suited for long-range FPV exploration, aerial photography, cinematic FPV flights, and UAV applications requiring extended flight times and stable performance. Its robust build also makes it suitable for freestyle FPV pilots who demand durability.

Compatibility

The GEPRC Crocodile75 V3 Analog is designed to be compatible with 6S LiPo batteries ranging from 2600mAh to 4200mAh, or 6S Li-Ion batteries up to 6000mAh. It utilizes the ELRS 2.4G receiver system and is optimized for 7-inch and 7.5-inch propellers.

FAQ

What is the GEPRC Crocodile75 V3 Analog FPV drone designed for?

The GEPRC Crocodile75 V3 Analog drone is designed for extended long-range FPV flights, aerial exploration, and stable aerial photography. Its reinforced structure and efficient cooling system make it ideal for demanding missions.

What is the recommended battery for the GEPRC Crocodile75 V3 Analog?

It is recommended to use a 6S LiPo battery with a capacity between 2600mAh and 4200mAh, or a 6S Li-Ion battery up to 6000mAh for optimal flight time, which can range from 12 to 30 minutes.

Does the GEPRC Crocodile75 V3 Analog drone come with an O3 Air Unit?

Yes, the GEPRC Crocodile75 V3 Analog is equipped with the O3 Air Unit, featuring a dedicated cooling radiator to ensure efficient heat dissipation and prevent overheating during flight.

What flight controller and ESC are used in the GEPRC Crocodile75 V3 Analog?

This FPV drone utilizes the SPAN F722-BT-HD V2 Flight Controller (FC) and the SPAN G50A BLHeli_32 4IN1 ESC for reliable and powerful performance.
