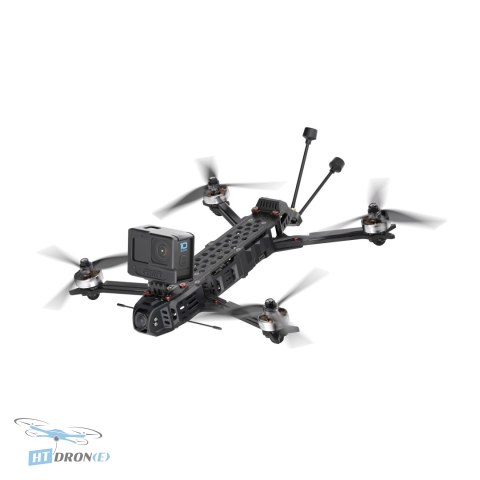

GEPRC Crocodile75 V3 HD Wasp TBS Nano RX Long Range FPV Drone

Introduction

The GEPRC Crocodile75 V3 HD Wasp TBS Nano RX represents a significant advancement in long-range FPV drone technology. Engineered for stability and performance, this model boasts a newly designed, reinforced frame that minimizes vibrations, ensuring smoother flights and more accurate gyroscope data. It's built for pilots who demand reliability and extended flight capabilities for various aerial missions.

Key advantages

• Innovative structural design with reinforced fuselage to reduce vibrations and enhance flight stability.
• Equipped with the DJI O3 Air Unit and a dedicated cooling system to prevent overheating during intensive use.
• Upgraded SPAN G50A BLHeli_32 4IN1 ESC and SPEEDX2 2806.5 1350KV motor provide ample power and efficiency for extended flights.
• Integrated battery plug design simplifies operation and enhances aesthetics.
• Protective side panels safeguard the electronic control system from dust and sand contamination.
• Optimized for 7-inch or 7.5-inch propellers, ensuring excellent thrust and flight performance.
• Supports a wide range of batteries, including 6S Lipo (3300-4500mAh) or Lion (6000mAh), for extended flight times of up to 30 minutes.
• Includes a TBS Nano RX receiver for reliable control link.

Technical specifications

• Model: Crocodile75 V3 HD Wasp
• Frame: GEP-LC75 V3
• Wheelbase: 342mm
• Top Plate: 2.5mm
• Bottom Plate: 3.0mm
• Arm Plate: 6.0mm
• Rail Plate: 2.5mm
• FC: SPAN F722-BT-HD V2
• ESC: SPAN G50A BLHeli_32 4IN1
• MCU: STM32F722RET6
• Gyroscope: ICM 42688-P
• OSD: Betaflight OSD with AT7456E chip
• VTX: DJI O3 Air Unit
• Camera: Runcam Wasp
• GPS: GEP-M8U
• Antenna: Momoda 5.8G LHCP RP-SMA 120mm
• Motor: SPEEDX2 2806.5 1350KV
• Propeller: HQProp7.5×3.7×3
• Weight: 615g
• Receiver: TBS NanoRX
• Recommended Battery: 6S 2600mah-4200mah Lipo / 6S 6000mah Lion
• Flight Time: 12-30 min

Applications

This GEPRC Crocodile75 V3 drone is ideal for long-range FPV flights, aerial photography, cinematic FPV, and extended surveillance missions. Its robust build and reliable components make it suitable for challenging environments and demanding flight plans.

Compatibility

The drone is compatible with 6S Lipo batteries ranging from 2600mAh to 4200mAh, or 6S Lion batteries up to 6000mAh. It utilizes a TBS Nano RX receiver for control and supports 7-inch or 7.5-inch propellers.

FAQ

What is the main advantage of the GEPRC Crocodile75 V3 HD Wasp drone?

The GEPRC Crocodile75 V3 HD Wasp features a reinforced frame for enhanced stability and reduced vibrations, an integrated O3 Air Unit with a dedicated cooling system for reliable performance, and an upgraded ESC and motor for powerful, efficient long-range flights.

What is the recommended battery for the GEPRC Crocodile75 V3?

The drone is compatible with 6S Lipo batteries from 2600mAh to 4200mAh, or 6S Lion batteries up to 6000mAh. This allows for extended flight times, typically between 12 and 30 minutes, depending on battery choice and flight conditions.

What type of FPV system does the GEPRC Crocodile75 V3 use?

This model is equipped with the advanced DJI O3 Air Unit, providing high-definition digital FPV transmission. It also includes a Runcam Wasp camera for clear video feed.

Where can I buy the GEPRC Crocodile75 V3 HD Wasp drone?

You can buy the GEPRC Crocodile75 V3 HD Wasp drone at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.

What is the flight time I can expect from the GEPRC Crocodile75 V3?

With its optimized design and support for high-capacity batteries, the GEPRC Crocodile75 V3 can achieve flight times ranging from 12 to 30 minutes. This extended duration is ideal for long-range exploration and aerial tasks.
