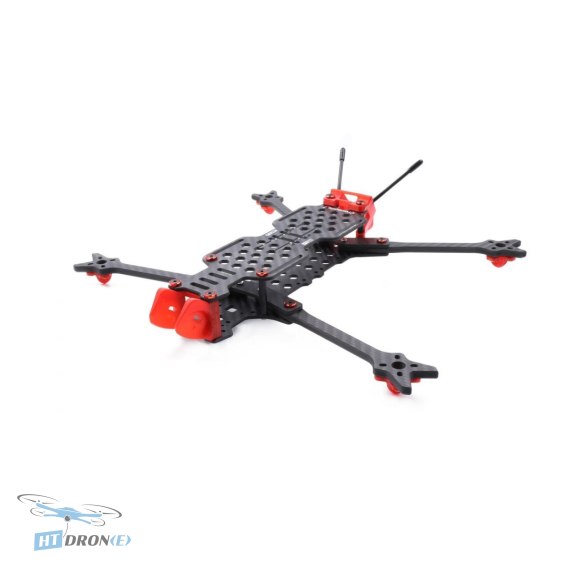

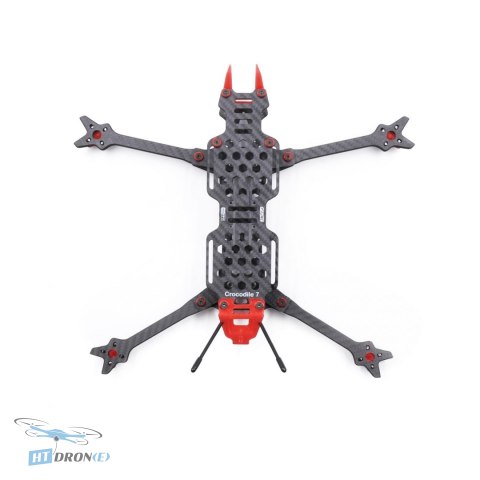

GEPRC GEP-LC7HD Crocodile7 HD FPV Drone Frame - 7-inch Propeller Compatible

Introduction

The GEPRC GEP-LC7HD frame, part of the Crocodile7 HD family, is expertly crafted for long-range FPV pilots who demand superior performance and durability. Constructed from high-quality 3K carbon fiber, this frame provides a solid foundation for your 7-inch FPV drone build, ensuring stability and resilience during extended flights and demanding aerial maneuvers.

Key advantages

• Constructed from durable 3K carbon fiber plates for maximum strength.
• Optimized design for 7-inch propellers, delivering excellent flight performance and efficiency.
• Integrated TPU engine and lens protection parts enhance durability and safeguard critical components.
• Includes a 3D-printed GPS module mount for easy integration of navigation systems.
• Generous motor mounting pattern (16x19mm) compatible with popular motors like GR2306.5/2306.
• Supports standard 36x36mm flight controller mounting for wide compatibility.
• Designed for a camera installation space of 19-20mm.
• Lightweight design at only 174g, balancing strength with agility.

Technical specifications

• Brand: GEPRC
• Model: GEP-LC7HD
• Wheelbase: 315mm
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Arm Plate Thickness: 5.0mm
• FC Mounting Holes: 36x36mm
• Motor Mounting Holes: 16x19mm (suitable for GR2306.5/2306 motors)
• Camera Installation Space: 19-20mm
• Suitable Propeller Size: 7 inches
• Weight: 174g

Applications

This frame is perfectly suited for long-range FPV exploration, aerial photography, cinematic FPV flights, and endurance missions. Its robust construction and 7-inch propeller compatibility make it an excellent choice for pilots looking to push the boundaries of flight distance and duration.

Compatibility

The GEP-LC7HD frame supports standard 36x36mm flight controllers and 16x19mm motor mounts, making it compatible with a wide range of FPV components. The 19-20mm camera mounting space ensures compatibility with most FPV cameras.

FAQ

What makes the GEPRC GEP-LC7HD frame ideal for long-range FPV flights?

The GEPRC GEP-LC7HD frame is designed with a robust 3K carbon fiber construction and optimized for 7-inch propellers, providing the stability and efficiency needed for extended long-range FPV missions.

What size motors and propellers are compatible with the GEPRC GEP-LC7HD frame?

This frame features motor mounting holes for 16x19mm, suitable for motors like GR2306.5/2306, and is designed to optimally support 7-inch propellers for enhanced flight performance.

Does the GEPRC GEP-LC7HD frame include any protective features?

Yes, the frame includes integrated TPU protective parts for the engine and lens, along with a 3D-printed mount for a GPS module, enhancing durability and component protection.

Where can I buy the GEPRC GEP-LC7HD frame with fast delivery?

You can order the GEPRC GEP-LC7HD frame from HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast international delivery via DHL.

What are the main technical specifications of the GEPRC GEP-LC7HD frame?

Key specifications include a 315mm wheelbase, 2.5mm top/bottom plates, 5.0mm arm plates, 36x36mm FC mounting, 16x19mm motor mounting, and a weight of 174g.
