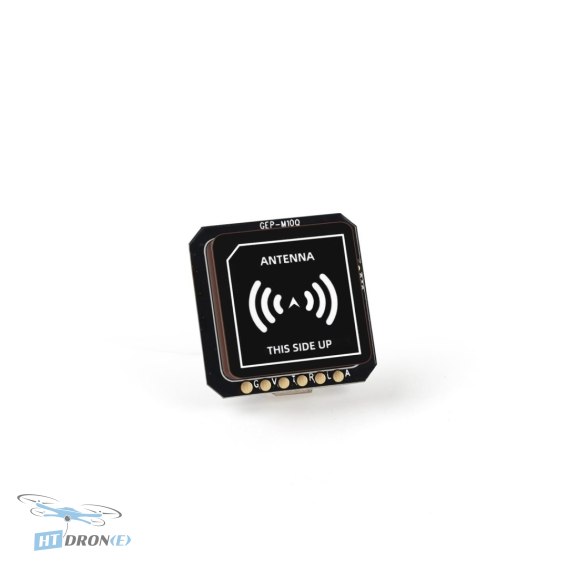

GEPRC GEP-M10Q GPS Module with u-blox M10 for FPV Drones

Introduction

The GEPRC GEP-M10Q is a high-performance GPS positioning module designed for a wide range of unmanned aerial vehicles, including FPV drones, multirotors, and fixed-wing aircraft. It leverages the cutting-edge u-blox M10 series chip to deliver fast, stable, and accurate positioning, significantly improving your drone's navigation capabilities. This module is an essential upgrade for pilots seeking enhanced flight control and data logging.

Key advantages

• Utilizes the reliable u-blox M10 series chipset for superior performance.
• Provides rapid and stable positioning capabilities for critical flight operations.
• Supports multiple satellite systems including GPS, BDS, Galileo, QZSS, and SBAS for global coverage.
• Capable of connecting to up to 32 satellites simultaneously, maximizing accuracy.
• Features a compact and lightweight design, ideal for space-constrained drone builds.
• Includes an integrated Flash chip and Faraday capacitor for easy configuration and quick startup.
• Equipped with a built-in LED indicator for enhanced usability and status monitoring.
• Offers both UART and I2C output protocols for versatile integration with flight controllers.

Technical specifications

• Model: GEP-M10-Q
• GPS Chip: u-blox M10
• Magnetometer: QMC5883L
• Barometer: None
• Input Voltage: 3.3V-5V
• Reception Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Working Mode: GPS + BDS + GALILEO + QZSS + SBAS Common Positioning
• Channels: 72 channels
• Navigating Satellites: Up to 32
• Output Protocol: UART (ublox) for GEP-M10nano, GEP-M10, GEP-M10Q; I2C for GEP-M10Q and GEP-M10-DQ
• Baud Rate: 115200bps
• Output Frequency: 10 Hz
• Speed Accuracy: 0.05 m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5 m (in good weather)
• Time Accuracy: 30 ns
• Receiver Sensitivity: Trace-162dBm, Capture-160dBm
• Dynamic Characteristics: Max Altitude: 50000m, Max Speed: 500m/s, Max Acceleration: 4G
• Dimensions: 22x22x8.2mm
• Weight: 7.9g

Applications

This GPS module is perfect for a wide array of applications including FPV racing drones, freestyle FPV setups, professional UAVs for aerial photography and videography, long-range exploration drones, and fixed-wing model aircraft requiring precise navigation and return-to-home functionality.

Compatibility

The GEPRC GEP-M10Q supports input voltages from 3.3V to 5V, making it compatible with most flight controllers. It offers both UART and I2C output protocols, ensuring broad compatibility with various flight control systems. The output frequency of 10Hz and baud rate of 115200bps are standard for many modern flight controllers.

FAQ

What makes the GEPRC GEP-M10Q GPS module stand out for FPV drones?

The GEPRC GEP-M10Q stands out due to its use of the advanced u-blox M10 chipset, which ensures rapid and stable positioning. It supports multiple satellite systems and can connect to up to 32 satellites, providing highly accurate location data crucial for FPV flight.

What satellite systems does the GEPRC GEP-M10Q support?

This module supports common positioning across multiple satellite constellations, including GPS, BDS, Galileo, QZSS, and SBAS. This broad support enhances its reliability and accuracy in various geographical locations.

Can the GEPRC GEP-M10Q be used with different types of drones?

Yes, the GEPRC GEP-M10Q is versatile and designed for FPV drones, multirotors, and fixed-wing aircraft. Its compact size and reliable performance make it suitable for a wide range of UAV applications.

What are the key technical specifications of the GEPRC GEP-M10Q?

Key specs include the u-blox M10 GPS chip, 72 channels, support for up to 32 satellites, a 10 Hz output frequency, and an accuracy of 1.5m horizontally. It operates on 3.3V-5V and has dimensions of 22x22x8.2mm, weighing only 7.9g.

Where can I buy the GEPRC GEP-M10Q GPS module with fast delivery?

You can buy the GEPRC GEP-M10Q GPS module at HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast international delivery via DHL for worldwide customers. Check our shop for the best price and order now!
