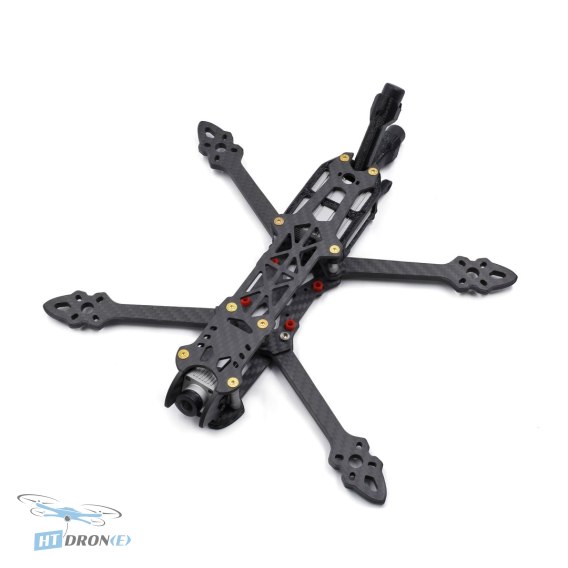

GEPRC GEP-MARK4 HD5 Carbon Fiber FPV Drone Frame for DJI Air Unit

Introduction

The GEPRC GEP-MARK4 HD5 frame is a premium choice for FPV drone enthusiasts looking to build a high-performance freestyle or racing quadcopter. Specifically engineered to integrate seamlessly with the DJI FPV Air Unit, this frame provides a robust and lightweight platform for dynamic aerial maneuvers. Its advanced design prioritizes durability, ease of assembly, and optimal component placement, making it an excellent foundation for your next FPV build. Whether you're a seasoned pilot or looking to upgrade, the MARK4 HD5 offers a superior flying experience.

Key advantages

• Optimized for DJI FPV Air Unit integration, ensuring a clean and secure fit.
• Constructed from high-quality 3K full carbon fiber for superior strength-to-weight ratio.
• Features a collision-resistant, durable, and aesthetically pleasing design for demanding flights.
• Super lightweight construction for enhanced agility and flight performance in freestyle applications.
• Versatile mounting options supporting both 30.5x30.5mm and 20x20mm flight controller stacks.
• ALU6061 standoffs enhance frame rigidity and durability.
• Generous space for component installation, aided by 25mm standoffs for improved CG and electronics layout.
• Precision CNC machining ensures high accuracy and a perfect fit for all components.

Technical specifications

• Frame Type: H-Type
• Brand: GEPRC
• Model: MARK4 HD5
• Arm Plate Thickness: 5mm
• Side Plate Thickness: 2.5mm
• Top Plate Thickness: 2.5mm
• Bottom Plate Thickness: 2.5mm
• Guard Plate Thickness: 2mm
• Max Propeller Size: 5 inches
• Motor to Motor Distance: 224mm
• Frame Size: 138x176mm
• Mounting Holes: 30.5x30.5mm / 20x20mm
• Material: 3K Carbon Fiber, ALU6061 Standoffs
• Weight: 121g
• Recommended Flight Controller: RF/Kiss/F3/F4/F7
• Recommended Motor Size: 2205/2206/2207/2207.5/2305/2306/2306.5
• Recommended ESC: 30A-50A
• Recommended Lipo Battery: 4S 1500mAh - 6S 1300mAh
• FPV System Compatibility: DJI FPV Air Unit

Applications

This frame is ideally suited for FPV freestyle flying, drone racing, and general FPV aerial videography. Its robust design and compatibility with high-performance components make it a versatile choice for pilots who push the limits of their drones in various flying conditions.

Compatibility

The GEPRC GEP-MARK4 HD5 frame supports flight controllers with 30.5x30.5mm and 20x20mm mounting patterns, offering flexibility in component selection. It is designed to perfectly house the DJI FPV Air Unit and is compatible with a wide range of FPV motors (22xx, 23xx series), ESCs (30A-50A), and LiPo batteries (4S-6S).

FAQ

What is the GEPRC GEP-MARK4 HD5 frame best suited for?

The GEPRC GEP-MARK4 HD5 frame is best suited for FPV freestyle flying and drone racing. Its lightweight yet durable design, combined with compatibility for the DJI FPV Air Unit, makes it an excellent choice for pilots seeking agility and performance.

What size propellers can I use with the GEPRC GEP-MARK4 HD5 frame?

This frame is designed to accommodate 5-inch propellers. It offers ample clearance and stability for 5-inch setups, allowing for powerful and responsive flight characteristics.

Does the GEPRC GEP-MARK4 HD5 frame support different flight controller mounting sizes?

Yes, the GEPRC GEP-MARK4 HD5 frame features versatile mounting holes that support both standard 30.5x30.5mm and smaller 20x20mm flight controller stacks, providing flexibility for various electronic configurations.

Where can I buy the GEPRC GEP-MARK4 HD5 frame with fast delivery?

You can buy the GEPRC GEP-MARK4 HD5 frame at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.

What are the main materials used in the GEPRC GEP-MARK4 HD5 frame?

The GEPRC GEP-MARK4 HD5 frame is primarily constructed from high-quality 3K carbon fiber for its main plates, ensuring strength and low weight. It also utilizes ALU6061 standoffs to enhance rigidity and durability.
