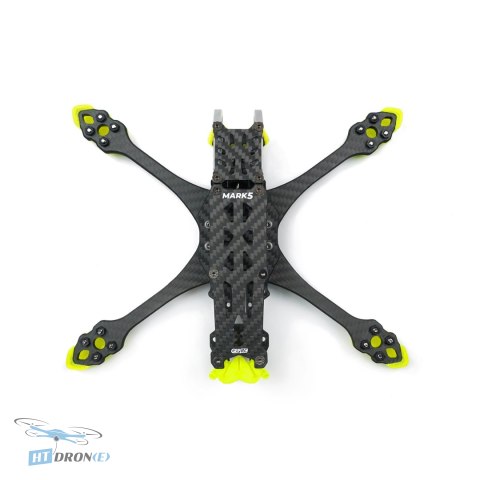

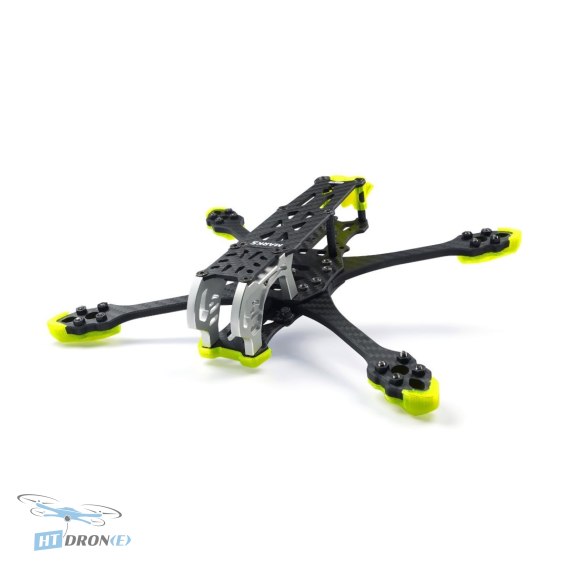

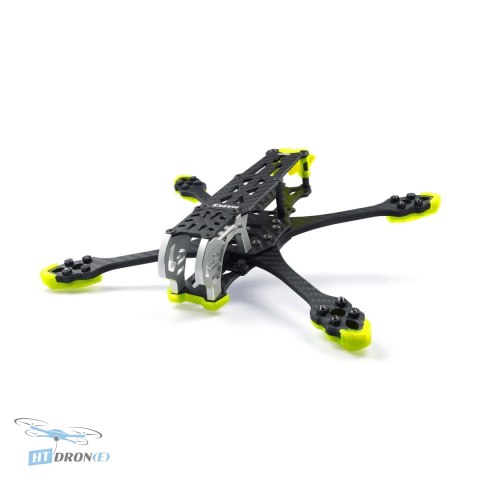

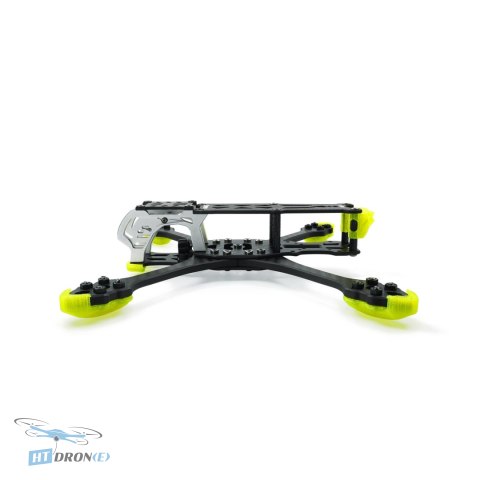

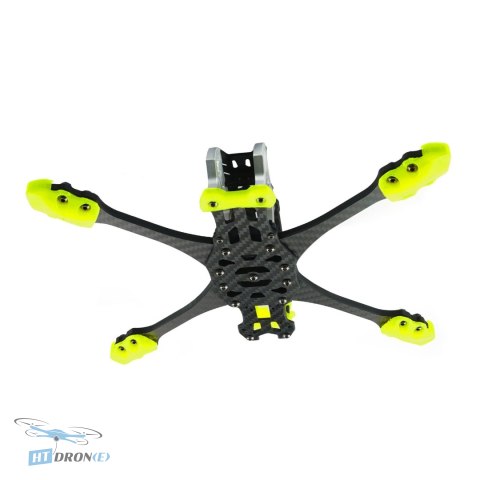

GEPRC GEP-MK5 PRO Yellow MARK5 Freestyle FPV Drone Frame

Introduction

The GEPRC GEP-MK5 PRO (Transparent Yellow) is the next-generation freestyle frame designed for the MARK5 drone, offering enhanced durability and performance for FPV enthusiasts. It's built to handle the demands of aggressive freestyle maneuvers while providing excellent compatibility with leading digital and analog FPV systems.

Key Advantages

• Reinforced structure with aluminum alloy side plates for reduced weight and increased strength.
• Optimized 'X' arm design specifically for freestyle flying, ensuring stability and control.
• Versatile VTX mounting supports both 30.5x30.5mm analog and digital systems like DJI Air Unit and Caddx Vista.
• Accommodates 19-20mm cameras, including direct mounting for the DJI Air Unit camera.
• Innovative shock absorption system minimizes vibrations and resonance for cleaner footage and a smoother flight experience.
• Dedicated compartments for capacitors and buzzers improve performance and reduce noise.
• Flexible motor mounting options support both 16x16mm and 19x19mm bolt patterns.
• Includes two types of 3D printed mounts for action cameras like GoPro, Insta360 GO2, and Caddx Peanut.

Technical Specifications

• Model: GEP-MK5
• Motor to Motor: 225 mm
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Plate Thickness: 5.0 mm
• FC Mounting Hole: 30.5x30.5 mm
• VTX Mounting Hole: 30.5x30.5 mm / 20x20 mm
• Motor Mounting Hole: 16x16 mm / 19x19 mm
• Camera Mounting Space: 19-20 mm
• Suitable Propeller Size: 5 inch
• Dimensions: 214x168x42 mm
• Weight: 130.0 g

Applications

This frame is expertly designed for FPV freestyle flying, offering the durability and stability required for complex aerial tricks, cinematic FPV, and general FPV drone exploration. It's an excellent choice for pilots looking to push their limits in freestyle performance.

Compatibility

Fully compatible with DJI Air Unit, Caddx Vista, and analog VTX systems. Supports camera widths of 19-20mm. Motor mounting is compatible with 16x16mm and 19x19mm patterns. Note: DJI O3 Air Unit installation requires additional specific aluminum lens mounting brackets. GPS module must be purchased separately.

FAQ

What is the GEPRC GEP-MK5 PRO frame best suited for?

The GEPRC GEP-MK5 PRO frame is specifically designed for FPV freestyle flying. Its robust construction, optimized arm design, and shock absorption features make it ideal for performing advanced tricks and maneuvers.

What FPV systems are compatible with the GEP-MK5 PRO frame?

This frame is highly compatible, supporting DJI Air Unit, Caddx Vista, and standard analog VTX systems. It also features mounting holes for both 30.5x30.5mm and 20x20mm VTX setups, offering great flexibility.

What camera sizes can be mounted on the GEPRC GEP-MK5 PRO?

The frame provides a mounting space for cameras with widths of 19-20mm, allowing direct installation of the original DJI camera. It also includes mounts for action cameras like GoPro, Insta360 GO2, and Caddx Peanut.

Where can I buy the GEPRC GEP-MK5 PRO Yellow frame?

You can buy the GEPRC GEP-MK5 PRO Yellow frame at HTDRONE, your specialized FPV and UAV drone parts store. We offer fast delivery within Poland and reliable worldwide shipping via DHL.

What are the main benefits of the GEPRC GEP-MK5 PRO frame's construction?

The frame utilizes aluminum alloy side plates for enhanced durability and weight reduction. Its unique shock-absorbing design minimizes vibrations and resonance, leading to a smoother flight and better video quality.
