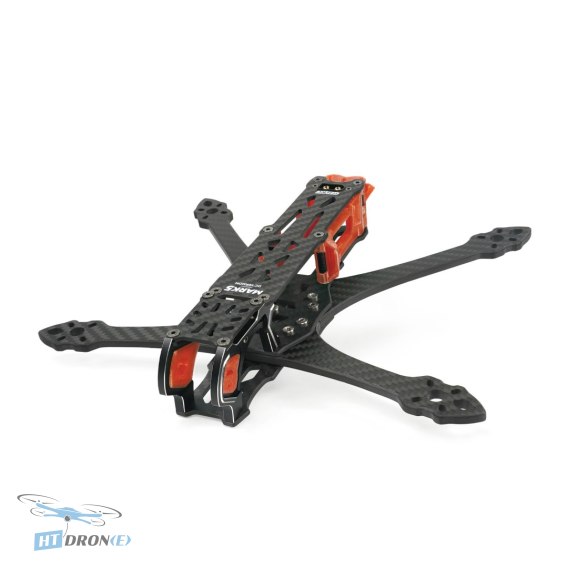

GEPRC GEP-MK5D-O3-Standard Coral Orange FPV Drone Frame | DJI O3 Air Unit Compatible

Introduction

Introducing the GEPRC GEP-MK5D-O3-Standard frame, a significant upgrade designed to seamlessly integrate the revolutionary DJI O3 Air Unit. Building upon the acclaimed MARK5 platform, this frame optimizes performance for high-definition digital FPV systems. The Coral Orange edition adds a vibrant aesthetic to your build, making it stand out. This frame is engineered for pilots who demand the best in aerial cinematography and high-speed FPV flight, especially those utilizing the advanced capabilities of the DJI O3 system.

Key Advantages

• Optimized for DJI O3 Air Unit: Fully compatible with the latest DJI O3 air unit for a next-level digital FPV experience.
• Durable Construction: Features newly upgraded 7075-T6 aluminum alloy camera side plates for superior strength and longevity.
• Wide Field of View: Supports DJI O3 camera with a 155° FOV, enabling stunning 4K 60FPS recording.
• Enhanced Cooling: Includes specifically designed soft TPU parts for the O3 VTX and an air intake cooling port to ensure optimal heat dissipation.
• Versatile Mounting Options: Compatible with a wide range of action cameras like GP cameras, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut for capturing every moment.
• Robust Frame Design: 5mm thick arms and 2.5mm top/bottom plates provide exceptional rigidity for aggressive flying.
• Smooth Flight Performance: Designed for 5-inch propellers and a 230mm wheelbase for stable and agile flight characteristics.
• Vibrant Aesthetic: Available in a striking Coral Orange color for a unique and eye-catching build.

Technical Specifications

• Frame Name: GEP-MK5D O3 Frame
• Wheelbase: 230 mm
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Thickness: 5 mm
• FC Mounting Holes: 30.5 mm x 30.5 mm
• Camera Mounting Space: 20 mm
• Suitable Propeller Size: 5″ propeller
• Dimensions: 208mm x 193mm x 42mm
• Standard Version Weight: 168.0 g
• Material: 7075-T6 Aluminum Alloy (side plates)

Applications

This FPV drone frame is ideal for freestyle FPV flying, cinematic FPV videography, and high-speed drone racing. Its design is specifically tailored for pilots using the DJI O3 Air Unit for superior video transmission and recording quality. It's also suitable for capturing action footage with various compatible action cameras.

Compatibility

Specifically designed for the DJI O3 Air Unit. Features a 20mm camera mounting space suitable for various FPV cameras and action cameras. FC mounting holes support standard 30.5mm x 30.5mm stacks.

FAQ

What makes the GEPRC GEP-MK5D-O3-Standard frame ideal for the DJI O3 Air Unit?

This frame is specifically designed to house the DJI O3 Air Unit, featuring dedicated cooling solutions and optimized camera mounting space. It ensures full compatibility and enhances the performance of the O3 system for superior aerial footage.

What are the key construction benefits of the GEPRC GEP-MK5D-O3-Standard frame?

It features robust 5mm thick arms and 2.5mm top/bottom plates for exceptional durability. The camera side plates are upgraded to strong 7075-T6 aluminum alloy, providing enhanced protection and longevity for your FPV drone.

Can I mount action cameras on the GEPRC GEP-MK5D-O3-Standard frame?

Yes, this frame is designed for versatility. It supports the DJI O3 camera and also offers mounting compatibility for various action cameras, including GP cameras, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut, allowing you to capture stunning flight footage.

What is the recommended propeller size for this FPV frame?

The GEPRC GEP-MK5D-O3-Standard frame is designed to accommodate 5-inch propellers. This size is optimal for achieving a balance of agility, speed, and flight efficiency for freestyle and cinematic FPV applications.

Where can I buy the GEPRC GEP-MK5D-O3-Standard frame with reliable delivery?

You can buy the GEPRC GEP-MK5D-O3-Standard frame directly from HTDRONE, your specialized FPV drone parts store. We offer fast shipping within Poland and reliable worldwide delivery via DHL to get your order to you quickly.
