GEPRC GEP-MK5X-O3-PRO Carbon Fiber Frame for GEPRC MARK5 Drone, 225mm Wheelbase, DJI O3 Compatible

Introduction

The GEPRC GEP-MK5X-O3-PRO frame is an advanced, high-performance upgrade designed specifically for the GEPRC MARK5 drone. Engineered for FPV enthusiasts and drone pilots seeking enhanced durability and compatibility, this frame is optimized for the latest DJI O3 Air Unit. Its robust construction and thoughtful design solve common issues like heat management and camera mounting versatility, making it an ideal choice for serious FPV pilots.

Key Advantages

• Enhanced Durability: Constructed with a strengthened 7075-T6 aluminum alloy side plate for superior resilience.
• DJI O3 Air Unit Ready: Fully compatible with the new DJI O3 Air Unit for seamless integration.
• Optimized Heat Dissipation: Features specially designed TPU soft parts and an air intake cooling port for the O3 VTX module.
• Versatile Camera Mounting: Includes two different camera mounts compatible with a wide array of action cameras like GP, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut.
• Robust Construction: Features 5mm thick arm plates, 2.5mm top and bottom plates for maximum stability.
• Standardized Mounting: Designed with 30.5x30.5mm FC mounting holes and 20mm camera mounting space.
• Optimized for 5-inch Props: Perfectly suited for 5-inch propellers for optimal flight performance.
• Lightweight Design: The Pro version weighs approximately 156.1g, balancing strength with minimal weight.

Technical Specifications

• Model: GEP-MK5X-O3-PRO
• Wheelbase: 225 mm
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Plate Thickness: 5 mm
• FC Mounting Holes: 30.5x30.5 mm
• Camera Mounting Space: 20 mm
• Suitable Propeller Size: 5 inch

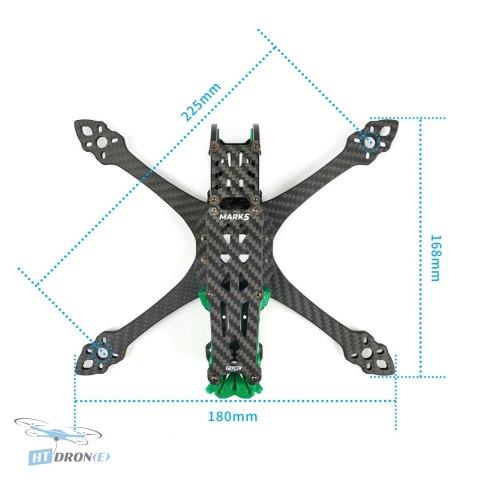

• Dimensions: 214x168x42mm

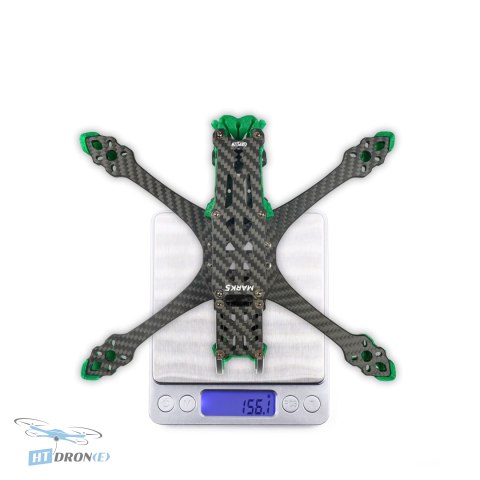

• Pro Version Weight: 156.1g
• Side Plate Material: 7075-T6 Aluminum Alloy

Applications

This frame is ideal for FPV freestyle, cinematic FPV flying, and competitive FPV racing. Its robust design and compatibility with high-end components like the DJI O3 Air Unit make it suitable for pilots looking to build a high-performance 5-inch FPV drone.

Compatibility

The GEPRC GEP-MK5X-O3-PRO frame is specifically designed for compatibility with the DJI O3 Air Unit. It also accommodates various action cameras including GP, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut, thanks to its versatile mounting options. The FC mounting holes are standard 30.5x30.5mm, ensuring compatibility with most FPV flight controllers.

FAQ

What is the GEPRC GEP-MK5X-O3-PRO frame?

The GEPRC GEP-MK5X-O3-PRO is a high-performance FPV drone frame designed for the GEPRC MARK5 drone. It features enhanced durability with a 7075-T6 aluminum alloy side plate and is fully compatible with the DJI O3 Air Unit.

What are the main technical specifications of the GEP-MK5X-O3-PRO frame?

This frame has a 225mm wheelbase, 5mm thick arm plates, 2.5mm top and bottom plates, and supports 30.5x30.5mm FC mounting. It's designed for 5-inch propellers and weighs approximately 156.1g (Pro version).

Is the GEPRC GEP-MK5X-O3-PRO frame compatible with the DJI O3 Air Unit?

Yes, the GEP-MK5X-O3-PRO frame is specifically designed to be fully compatible with the new DJI O3 Air Unit, including features for enhanced heat dissipation.

What types of cameras can be mounted on this GEPRC frame?

The GEP-MK5X-O3-PRO frame comes with two different camera mounts and supports a wide range of cameras, including GP, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut.

Where can I buy the GEPRC GEP-MK5X-O3-PRO frame with fast delivery?

You can order the GEPRC GEP-MK5X-O3-PRO frame from HTDRONE, a specialized FPV drone parts store based in Poland. We offer fast delivery within Poland and worldwide shipping via DHL for international customers.
