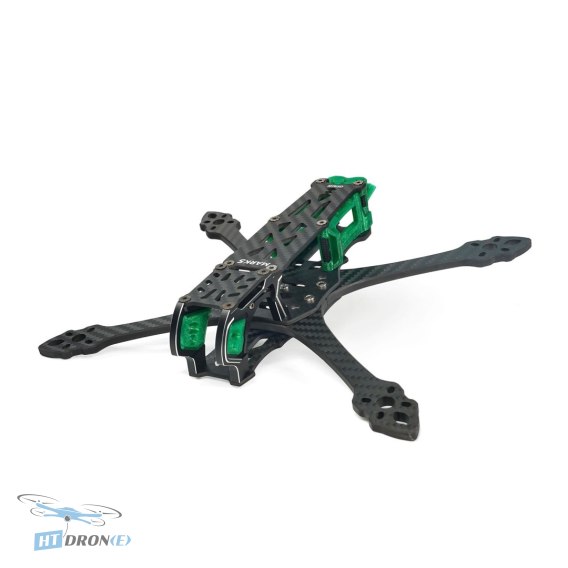

GEPRC GEP-MK5X-O3-Standard Emerald Green FPV Frame

Introduction

Introducing the GEPRC GEP-MK5X-O3-Standard, a cutting-edge FPV frame meticulously designed to integrate the revolutionary DJI O3 Air Unit. Building upon the acclaimed MARK5 platform, this upgraded version enhances overall performance, offering drone enthusiasts a superior digital FPV system. It's engineered for pilots who demand the best in stability, durability, and advanced features for their FPV builds.

Key Advantages

• Optimized for DJI O3 Air Unit: Seamless integration for a next-level digital FPV experience.
• Durable Construction: Features a newly upgraded 7075-T6 aluminum alloy camera side plate for superior strength and longevity.
• Wide Field of View: Supports DJI O3 camera with a 155° FOV for expansive aerial views.
• High-Resolution Recording: Capable of capturing stunning footage up to 4K 60FPS.
• Enhanced Cooling: Includes soft TPU parts for the O3 VTX module and an air intake cooling port to manage heat effectively.
• Versatile Camera Mounting: Comes with two different camera mounts compatible with a wide range of action cameras, including GP, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut.
• Robust Frame Design: 5mm thick arm plates provide exceptional resistance to crashes.
• Standardized FC Mounting: Compatible with 30.5mm x 30.5mm flight controller mounting holes for easy component integration.

Technical Specifications

• Frame Model: GEP-MK5X O3 Standard

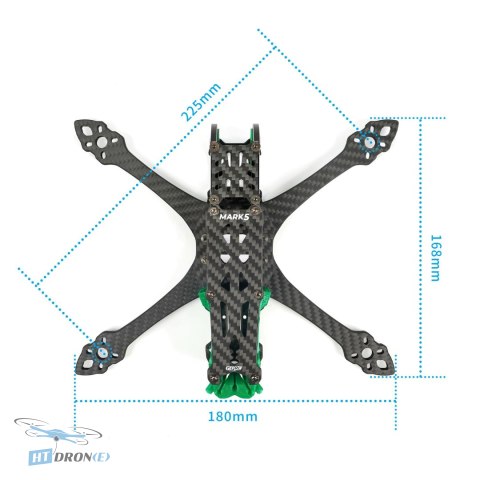

• Wheelbase: 225 mm
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Plate Thickness: 5 mm
• FC Mounting Holes: 30.5 mm x 30.5 mm
• Camera Mounting Space: 20 mm
• Suitable Propeller Size: 5″ propeller
• Overall Dimensions: 214mm x 168mm x 42mm
• Standard Version Weight: 141.9 g
• Material: 7075-T6 Aluminum Alloy (camera side plate)
• Color: Emerald Green

Applications

This FPV frame is ideally suited for freestyle FPV flying, cinematic FPV, and high-performance drone builds. Its robust design and compatibility with the DJI O3 Air Unit make it perfect for capturing high-quality aerial footage and engaging in dynamic FPV flight.

Compatibility

Designed to be fully compatible with the DJI O3 Air Unit. Supports mounting of various action cameras like GP, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut. Features standard 30.5mm x 30.5mm flight controller mounting and 20mm camera mounting space.

FAQ

What makes the GEPRC GEP-MK5X-O3-Standard frame ideal for the DJI O3 Air Unit?

The GEPRC GEP-MK5X-O3-Standard frame is specifically designed to seamlessly integrate the DJI O3 Air Unit. It features optimized dimensions, a dedicated camera mounting space, and includes soft TPU parts for the VTX with an air intake cooling port to ensure efficient heat dissipation and optimal performance of the O3 system.

What are the main durability features of this GEPRC frame?

This frame boasts a robust construction, including a 5mm thick arm plate for exceptional crash resistance and a newly upgraded 7075-T6 aluminum alloy camera side plate, ensuring both strength and longevity during demanding FPV flights.

Can I mount action cameras on the GEPRC GEP-MK5X-O3-Standard frame?

Yes, the frame comes with two different camera mounts. It's designed to accommodate a wide range of action cameras, including GP models, Naked GP 8/10, Insta 360 GO2, and Caddx Peanut, allowing you to capture high-quality flight footage.

What is the recommended propeller size for this FPV frame?

The GEPRC GEP-MK5X-O3-Standard frame is designed to work with 5-inch propellers. This size is ideal for balancing thrust, efficiency, and agility for freestyle and cinematic FPV flying.

Where can I buy the GEPRC GEP-MK5X-O3-Standard Emerald Green frame with fast delivery?

You can buy the GEPRC GEP-MK5X-O3-Standard Emerald Green frame at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your FPV parts quickly.
