GEPRC GEP-MOZ7 Frame for MOZ7 Drone - 7-7.5 Inch Propeller Support

Introduction

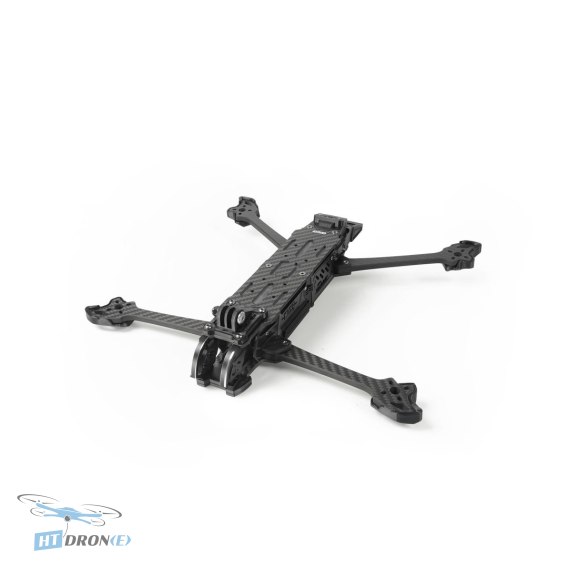

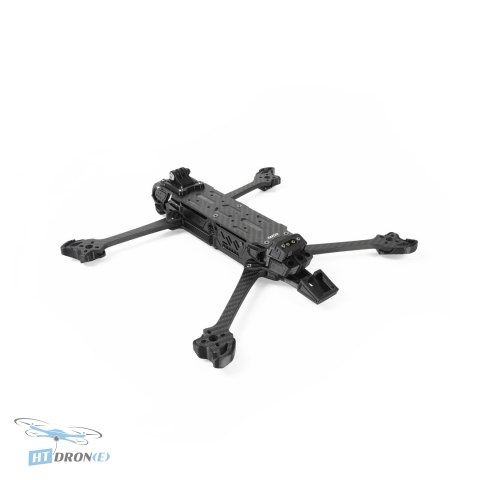

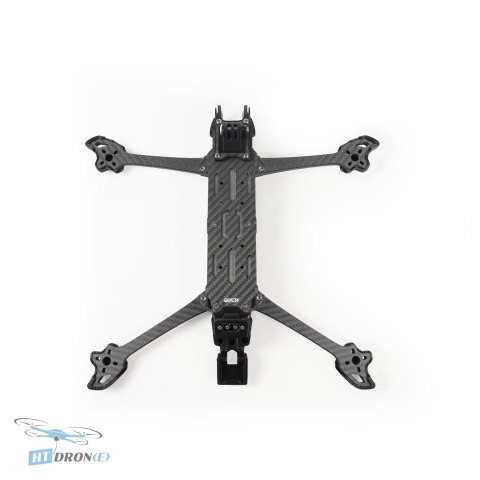

The GEPRC GEP-MOZ7 frame is an advanced, traditional H-type drone chassis engineered for exceptional flight performance, particularly for long-distance FPV and freestyle flying. It features a unique customizable side plate design and robust construction, making it a top choice for serious drone enthusiasts. This frame is designed to accommodate a wide range of FPV components, offering flexibility for custom builds.

Key Advantages

• Innovative CNC aluminum alloy side plates for camera protection, compatible with 19mm and 20mm camera mounts.
• Stable H-type frame design ensures smooth flight, steady hovering, and excellent maneuverability for long-range flights.
• Supports a maximum 30.5mm x 30.5mm electronic stack and various VTX units with custom cooling systems.
• Integrated VTX cooling ribs enhance stability during demanding flight conditions.
• Versatile camera mounting options allow easy switching between 19mm and 20mm sizes.
• Accommodates 16mm x 16mm and 19mm x 19mm motor mounting patterns.
• Compatible with popular action cameras like GoPro, Insta 360 Go2, and Caddx Peanut for high-quality aerial footage.
• Durable construction with 6.0mm thick arm plates for resilience against impacts.

Technical Specifications

• Model: MOZ7
• Frame Name: GEP-MOZ7
• Overall Dimensions: 280×310 mm
• Wheelbase: 320mm
• Top Plate Thickness: 3.0mm
• Bottom Plate Thickness: 3.0mm
• Arm Plate Thickness: 6.0mm
• Rail Plate Thickness: 3.0mm
• Camera Mount Thickness: 2.0mm
• VTX Guard Thickness: 1.5mm
• FC Mounting Hole: 30.5x30.5 mm
• VTX Mounting: Supports 20x20mm / 25.5x25.5mm / 30.5x30.5mm (max external size 30x30mm)
• Camera Mounting Size: 19 mm / 20 mm
• Propeller Size: 7-7.5 inch
• Weight: 310.0 g (excluding battery)

Applications

This frame is ideal for FPV freestyle, long-range exploration, professional aerial photography with action cameras, and high-performance drone racing. Its stable design also suits cinematic FPV flights.

Compatibility

The GEP-MOZ7 frame is compatible with a wide range of FPV components, including 30.5x30.5mm flight controllers, various VTX sizes (20x20mm, 25.5x25.5mm, 30.5x30.5mm), 19mm/20mm cameras, and 7-7.5 inch propellers. It also supports mounting for GoPro, Insta 360 Go2, and Caddx Peanut cameras.

FAQ

What type of FPV flying is the GEPRC GEP-MOZ7 frame best suited for?

The GEPRC GEP-MOZ7 frame excels in long-range FPV missions and freestyle flying due to its stable H-type design and 320mm wheelbase. It provides a solid platform for extended flights and smooth aerial maneuvers.

What camera sizes can be mounted on the GEPRC GEP-MOZ7 frame?

This frame offers versatile camera mounting options, supporting both 19mm and 20mm camera sizes. The aluminum side plates are designed for easy switching between these standards.

What is the maximum propeller size supported by the GEPRC GEP-MOZ7 frame?

The GEPRC GEP-MOZ7 frame is designed to accommodate propellers ranging from 7 to 7.5 inches, making it suitable for builds requiring significant thrust and efficiency for long-range flights.

Can I mount a GoPro or other action cameras on the GEPRC GEP-MOZ7 frame?

Yes, the GEPRC GEP-MOZ7 frame is compatible with popular action cameras such as GoPro, Insta 360 Go2, and Caddx Peanut, allowing you to capture high-quality aerial footage during your flights.
