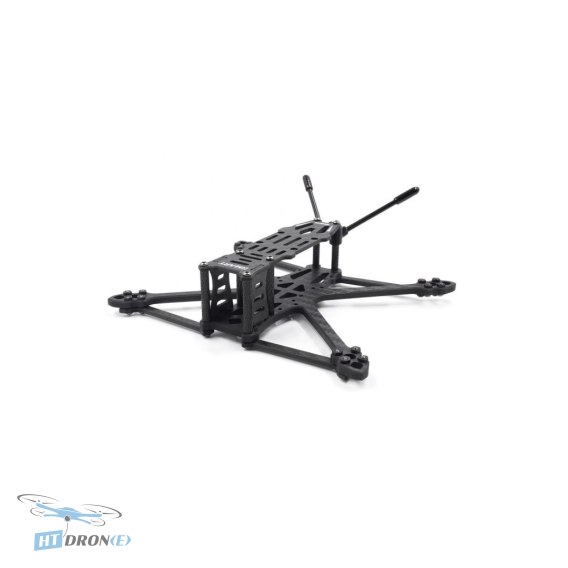

GEPRC GEP-ST35 3.5-inch Freestyle FPV Drone Frame

Introduction

The GEPRC GEP-ST35 is a high-performance 3.5-inch freestyle frame engineered for FPV drone enthusiasts. It provides a solid foundation for building a powerful and agile freestyle quadcopter, offering a blend of durability, versatility, and compatibility with popular FPV components. This frame is ideal for pilots looking to push the boundaries of freestyle flying with a reliable and customizable platform.

Key Advantages

• Robust Construction: Built with durable 4mm thick frame arms for excellent crash resistance.
• Versatile Mounting: Offers multiple mounting holes for FC (26.5x26.5mm / 20x20mm) and VTX (20x20mm) to suit various setups.
• Motor Compatibility: Supports motors with mounting hole sizes from 9x9mm to 12x12mm, providing flexibility in component selection.
• Camera Support: Compatible with Naked GP8 and Insta 360 Go2 cameras when using the dedicated GP camera mount.
• Customizable Durability: Option to equip with 2.5mm reinforced arms for enhanced strength in demanding situations.
• Compact Size: With a measured size of 142x118x36mm, it offers a balanced profile for agility.
• Lightweight Design: Weighs approximately 47.9g (including 3D prints and reinforced arm), ensuring minimal impact on flight performance.
• High-Quality Materials: Designed by GEPRC, a trusted brand in the FPV community.

Technical Specifications

• Brand: GEPRC
• Model: GEP-ST35
• Wheelbase: 155mm
• Top Plate Thickness: 2.0mm
• Bottom Plate Thickness: 4.0mm
• Arm Plate Thickness: 4.0mm
• Reinforced Arm Thickness: 2.5mm
• FC Mounting Holes: 26.5x26.5mm / 20x20mm
• VTX Mounting Holes: 20x20mm
• Motor Mounting Holes: 9x9mm / 12x12mm
• Dimensions: 142x118x36mm
• Weight: 47.9g (with 3D prints and reinforced arm)

Applications

The GEPRC GEP-ST35 frame is primarily designed for freestyle FPV flying. Its robust construction and versatile mounting options also make it suitable for custom FPV builds, cinematic FPV, and general drone experimentation where a durable 3.5-inch platform is desired.

Compatibility

This frame is compatible with Naked GP8 cameras and the Insta 360 Go2 camera when the GP camera mount is used. It supports standard FPV flight controllers with 20x20mm and 26.5x26.5mm mounting patterns, and video transmitters with 20x20mm mounting. Motor compatibility includes mounting patterns of 9x9mm and 12x12mm.

FAQ

What is the GEPRC GEP-ST35 frame designed for?

The GEPRC GEP-ST35 frame is specifically designed for 3.5-inch freestyle FPV drones. Its robust construction and versatile mounting options make it ideal for pilots who enjoy freestyle flying and want a durable, customizable platform for their builds.

What are the key technical specifications of the GEP-ST35 frame?

The GEPRC GEP-ST35 features a 155mm wheelbase, 4mm thick main arms (with optional 2.5mm reinforced arms), and supports FC mounting for 26.5x26.5mm or 20x20mm stacks. It also accommodates VTXs with 20x20mm mounting and motors with 9x9mm or 12x12mm hole patterns.

What cameras are compatible with the GEPRC GEP-ST35 frame?

This frame is compatible with Naked GP8 cameras and the Insta 360 Go2 camera, provided you use the specific GP camera mount. This allows for lightweight, high-quality aerial footage capture.

Where can I buy the GEPRC GEP-ST35 frame with fast delivery?

You can buy the GEPRC GEP-ST35 frame at HTDRONE, your specialized FPV drone parts store based in Poland. We offer fast delivery within Poland and reliable shipping options worldwide, including to Ukraine via Nova Poshta and internationally via DHL.

Is the GEPRC GEP-ST35 frame suitable for beginners?

While the GEP-ST35 is a robust frame for freestyle flying, its versatility also makes it a good choice for intermediate builders. Beginners might find simpler frames easier to start with, but the GEP-ST35 offers a great platform for growth and customization.
