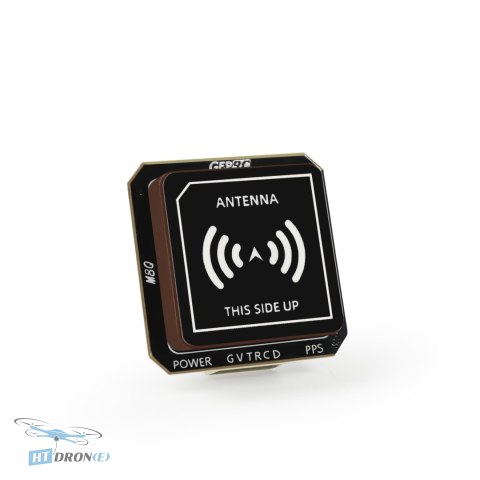

GEPRC GEP-M8Q GPS Module with GLONASS and MS5611 Barometer for FPV Drones

Introduction

The GEPRC GEP-M8Q GPS Module is a sophisticated, multi-functional positioning system designed for the demanding needs of FPV drones, multirotors, fixed-wing aircraft, and other RC models. Based on the GEP-M8U, this module is engineered for quick satellite acquisition, stable connections, and ease of use, making it an essential component for pilots seeking superior navigation and flight stability.

Key advantages

• High-precision positioning with GPS + GLONASS support.
• Fast satellite acquisition with a 72-channel receiver.
• Integrated QMC5883L magnetometer for accurate heading.
• Built-in MS5611 barometer for precise altitude readings.
• Excellent signal reception via a circularly polarized patch antenna.
• Stable performance with a 10Hz output frequency.
• Compact and lightweight design (22mm x 22mm, 8g).
• Wide input voltage range (3.3V-5V) for versatile integration.

Technical specifications

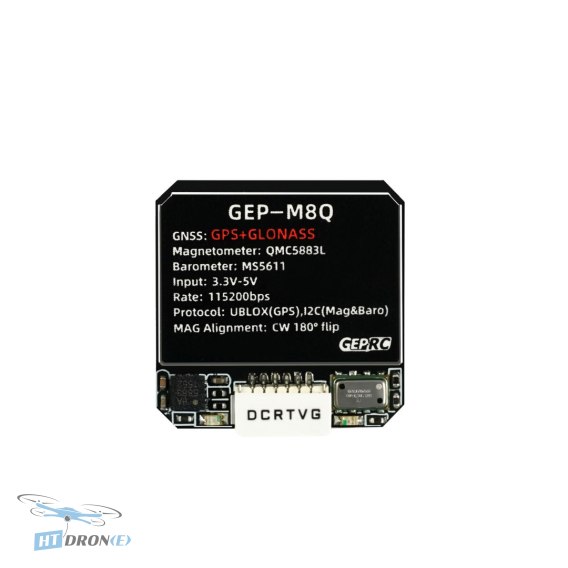

• Model: GEPRC GEP-M8Q GPS Module
• Input Voltage: 3.3V-5V
• Reception Format: GPS + GLONASS
• Channels: 72ch
• Compass: QMC5883L
• Barometer: MS5611
• Baud Rate: 115200bps
• Output Connector: SH1.0-6P
• Communication Protocol: UBLOX (GPS), I2C (Mag&Baro)
• Output Frequency: 10Hz
• MAG Calibration: CW Rotation 180
• Speed Accuracy: 0.05 m/s
• Horizontal Positioning Accuracy: < 2.5 M (Standard), < 2.0 M (SBAS)
• Timing Accuracy: 30 ns
• Receiving Sensitivity: Tracking -162dBm, Capture -160dBm
• Dynamic Characteristics: Max Altitude 50000 m, Max Speed 500 m/s
• Max Acceleration: 4G

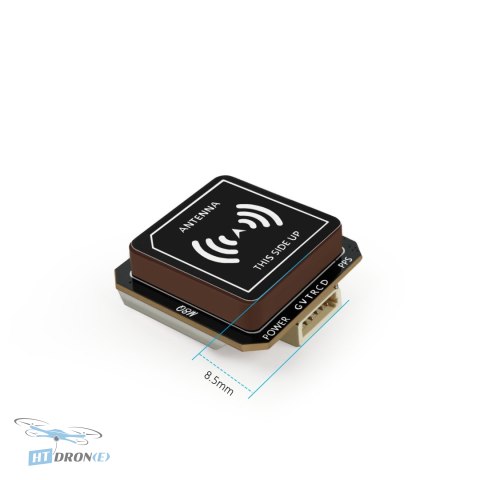

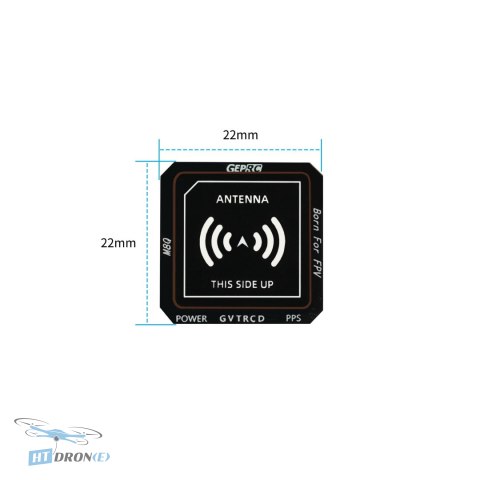

• Dimensions: 22mm x 22mm x 8.5mm
• Weight: 8g

Applications

The GEPRC GEP-M8Q GPS module is perfect for enhancing navigation capabilities on a wide range of aerial platforms. It is particularly well-suited for FPV racing drones, freestyle quads, long-range exploration UAVs, professional aerial photography platforms, and fixed-wing aircraft that require precise GPS data for autonomous flight, return-to-home functions, and waypoint navigation.

Compatibility

This module supports a wide input voltage range from 3.3V to 5V, ensuring compatibility with most flight controllers and power systems. It utilizes standard UBLOX and I2C protocols for seamless integration with popular flight control software and hardware. The SH1.0-6P connector is common in the FPV hobby.

FAQ

What is the GEPRC GEP-M8Q GPS Module?

The GEPRC GEP-M8Q is a high-performance GPS module designed for FPV drones and other RC aircraft. It integrates GPS and GLONASS satellite systems, a QMC5883L compass, and an MS5611 barometer for accurate positioning, heading, and altitude data.

What are the key benefits of using the GEP-M8Q module?

Key benefits include fast satellite acquisition with 72 channels, precise horizontal and altitude positioning, stable flight performance due to integrated sensors, and a compact, lightweight design suitable for various drone types.

Which types of drones is the GEPRC GEP-M8Q module compatible with?

This module is ideal for FPV drones, multirotors, and fixed-wing models. Its wide input voltage range (3.3V-5V) and standard communication protocols (UBLOX, I2C) ensure compatibility with most flight controllers.

How accurate is the positioning of the GEP-M8Q GPS module?

The module offers excellent positioning accuracy, with horizontal accuracy typically less than 2.5 meters, and even better than 2.0 meters with SBAS. The integrated barometer provides precise altitude measurements.

Where can I buy the GEPRC GEP-M8Q GPS module with fast delivery?

You can buy the GEPRC GEP-M8Q GPS module at HTDRONE, an online store specializing in FPV drone parts. We offer fast and reliable delivery within Poland and worldwide via DHL.
