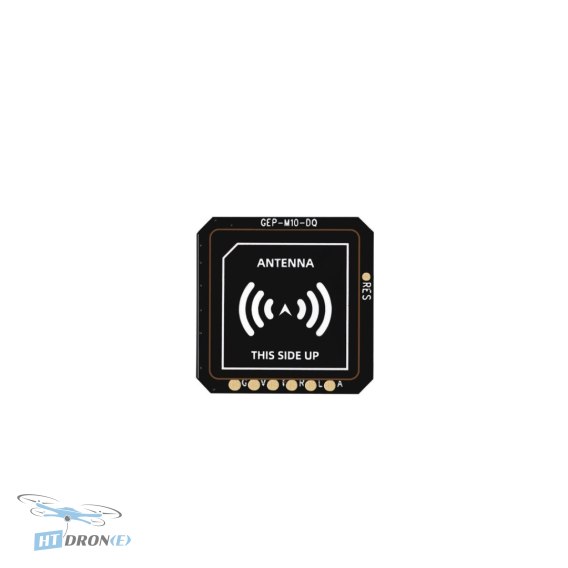

GEPRC GEP-M10-DQ GPS Module with Magnetometer & Barometer for FPV Drones

Introduction

The GEPRC GEP-M10-DQ is a high-performance GPS positioning module designed for a wide range of unmanned aerial vehicles, including FPV drones, multicopters, and fixed-wing aircraft. It leverages advanced technology to deliver rapid and stable location tracking, making it an essential component for pilots seeking enhanced navigation accuracy and reliability. This module integrates crucial sensors like a magnetometer and barometer, providing comprehensive flight data for optimal performance.

Key Advantages

• Utilizes the advanced u-blox M10 chipset for dependable and precise positioning.
• Offers rapid acquisition and stable tracking of satellite signals.
• Supports multiple global satellite navigation systems: GPS, BDS, Galileo, QZSS, and SBAS for wider coverage and accuracy.
• Can connect to up to 32 satellites simultaneously, significantly improving positional accuracy.
• Features an integrated QMC5883L magnetometer and DPS310 barometer for advanced navigation capabilities.
• Compact and lightweight design (8.0g) minimizes impact on aircraft performance.
• Includes built-in Flash memory and a Faraday capacitor for easy configuration and quick startup.
• Equipped with an LED indicator for simplified operation and status checks.
• Provides a stable and reliable connection crucial for critical flight operations.

Technical Specifications

• Model: GEP-M10-DQ
• GPS Chip: u-blox M10
• Magnetometer: QMC5883L
• Barometer: DPS310
• Input Voltage: 3.3V - 5V
• Receive Frequency: GPS L1, GLONASS L1, BDS B1, GALILEO E1, SBAS L1, QZSS L1
• Operating Mode: GPS + BDS + GALILEO + QZSS + SBAS common positioning
• Channels: 72 channels
• Navigating Satellites: Up to 32
• Output Protocol: I2C (for GEP-M10-DQ)
• Baud Rate: 115200bps
• Output Frequency: 10 Hz
• Speed Accuracy: 0.05 m/s
• Horizontal Positioning Accuracy: 2D ACC 1.5 m (with good weather)
• Time Accuracy: 30 ns
• Receiver Sensitivity: Trace -162dBm, Capture -160dBm
• Dynamic Characteristics: Max Altitude: 50000m, Max Speed: 500m/s, Max Acceleration: 4G
• Dimensions: 22x22x8.2mm
• Weight: 8.0g

Applications

The GEPRC GEP-M10-DQ GPS module is ideal for a variety of applications including FPV racing drones, freestyle FPV builds, professional UAVs for aerial photography and videography, inspection drones, long-range exploration aircraft, and autonomous flight systems. Its integrated sensors enhance capabilities for return-to-home functions, waypoint navigation, and precise altitude hold.

Compatibility

This module operates with an input voltage range of 3.3V to 5V and uses the I2C protocol for communication, ensuring compatibility with most modern flight controllers found in FPV and UAV systems. The standard 22x22mm mounting pattern with an 8.0g weight makes it easy to integrate into various drone frames.

FAQ

What is the GEPRC GEP-M10-DQ GPS module used for?

The GEPRC GEP-M10-DQ GPS module is designed for FPV drones, multicopters, and fixed-wing aircraft. It provides fast and stable positioning, supports multiple satellite systems, and includes integrated magnetometer and barometer for enhanced navigation capabilities.

What satellite systems does the GEP-M10-DQ support?

This GPS module supports common positioning systems including GPS, BDS, Galileo, QZSS, and SBAS. It can connect to up to 32 satellites simultaneously for improved accuracy and reliability.

What are the key integrated sensors in the GEP-M10-DQ module?

The GEP-M10-DQ features an integrated QMC5883L magnetometer and a DPS310 barometer. These sensors provide additional data for more advanced flight control and navigation functions.

What is the output protocol and baud rate for the GEP-M10-DQ?

The output protocol for the GEP-M10-DQ is I2C. The default baud rate is set to 115200bps, ensuring efficient data transfer to your flight controller.

Where can I buy the GEPRC GEP-M10-DQ GPS module with fast delivery?

You can buy the GEPRC GEP-M10-DQ GPS module at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL. Check our store for the best deals on FPV components.
