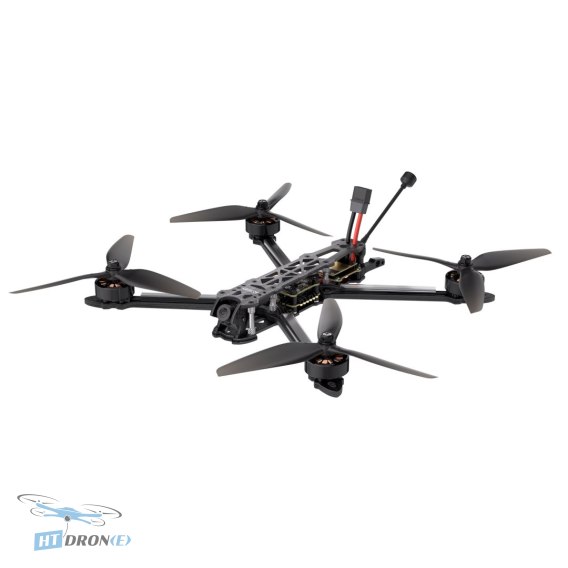

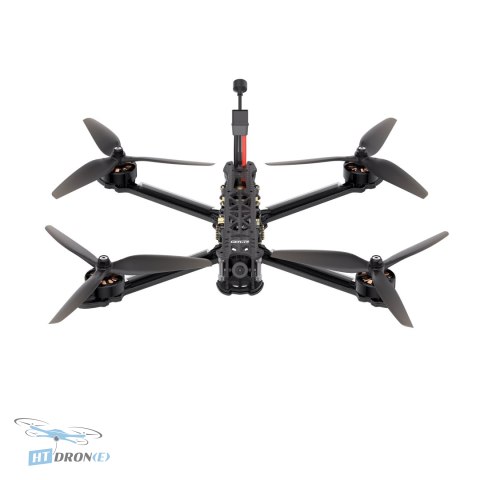

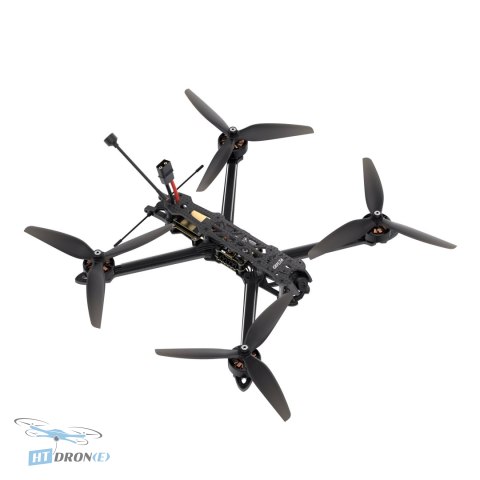

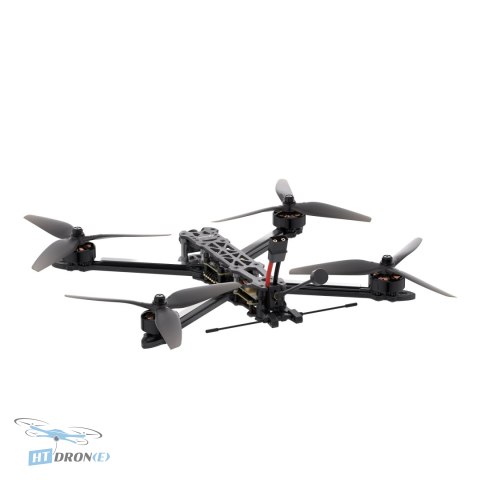

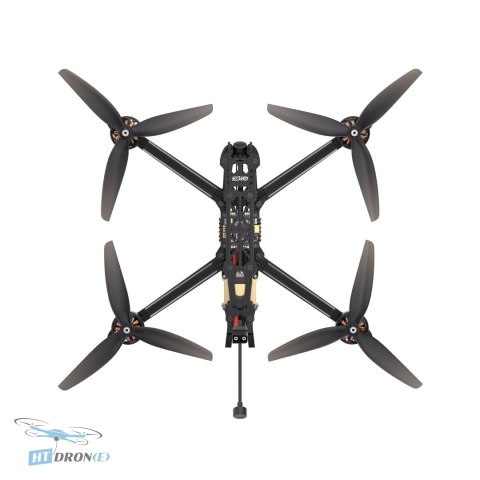

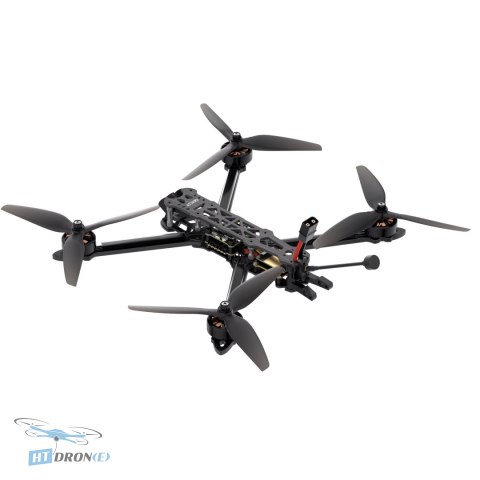

GEPRC MARK4-LR7 Analog FPV Drone with TBS Nano RX for Long Range Flights

Introduction

The GEPRC MARK4-LR7 Analog is a high-performance FPV drone engineered for exceptional long-range capabilities. This 7-inch quadcopter combines classic aesthetics with cutting-edge components, making it an ideal choice for serious FPV enthusiasts looking to push the boundaries of flight. Experience stable, reliable, and immersive FPV flights with a drone built for endurance and performance.

Key Advantages

• Classic and attractive design ensures a timeless look.
• High-power RAD 5.8G 1.6W VTX provides a stable and reliable video signal for clear FPV feeds.
• Powerful GEPRC E2806.5 1350KV motors, optimized for 6S batteries, deliver impressive thrust and speed.
• Stable flight performance is guaranteed by the F405 flight controller and a robust BLheli_S 50A ESC.
• Enjoy excellent visual clarity and an immersive flying experience with the Caddx H1 camera.
• Extended flight times of 12-30 minutes with recommended 6S LiPo batteries (2600mAh-4200mAh).
• Integrated TBS Nano RX receiver for reliable control link.
• Durable construction with 5mm thick arm plates for resilience.

Technical Specifications

• Model: MARK4 7-inch FPV
• Frame: GEP-MK4-7
• Wheelbase: 295 mm
• Top Plate: 3mm
• Bottom Plate: 3mm
• Arm Plate: 5mm
• Rail Plate: 2 mm
• FC: GEPRC F405 V2
• ESC: SPAN 50A BLHeli_S
• MCU: STM32F405RGT6
• Gyro: ICM-42688-P
• OSD: Betaflight OSD with AT7456E chip
• VTX: GEPRC RAD 5.8G 1.6W
• Camera: Caddx H1
• Antenna: Momoda 5.8G RHCP RP-SMA 120mm
• Motor: GEPRC E2806.5 1350KV
• Propeller: Gemfan 7037-3
• Weight: 455g
• Receiver: TBS NanoRX
• Recommended Battery: 6S 2600mAh-4200mAh LiPo / 6S 6000mAh Lion
• Flight Time: 12-30 minutes

Applications

This FPV drone is primarily designed for long-range exploration, aerial photography, and immersive FPV flying. Its robust build and powerful components make it suitable for extended missions where reliable signal and endurance are crucial.

Compatibility

The drone is equipped with a TBS Nano RX receiver, ensuring compatibility with TBS Crossfire control systems. It is recommended to use 6S LiPo batteries ranging from 2600mAh to 4200mAh for optimal performance and flight time.

FAQ

What is the GEPRC MARK4-LR7 Analog FPV drone best suited for?

The GEPRC MARK4-LR7 Analog drone is best suited for long-range FPV exploration and immersive flying. Its design prioritizes extended flight times and reliable performance over long distances.

What is the recommended battery for the GEPRC MARK4-LR7?

For optimal performance and flight time, it is recommended to use a 6S LiPo battery with a capacity between 2600mAh and 4200mAh, or a 6S Lion battery around 6000mAh.

Does the GEPRC MARK4-LR7 come with a receiver?

Yes, the GEPRC MARK4-LR7 Analog FPV drone comes pre-equipped with a TBS Nano RX receiver, ensuring reliable control link for your flights.

What is the flight time I can expect from the GEPRC MARK4-LR7?

With the recommended 6S batteries, you can expect flight times ranging from 12 to 30 minutes, making it ideal for extended aerial missions.

Where can I buy the GEPRC MARK4-LR7 Analog FPV Drone with fast delivery?

You can buy the GEPRC MARK4-LR7 Analog FPV Drone at HTDRONE. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.
