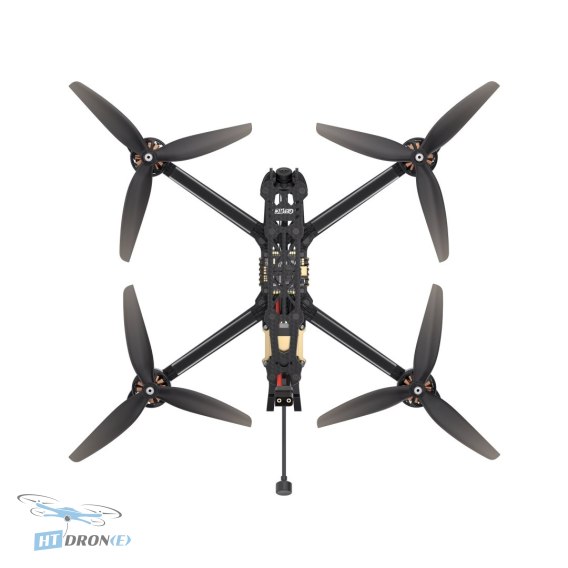

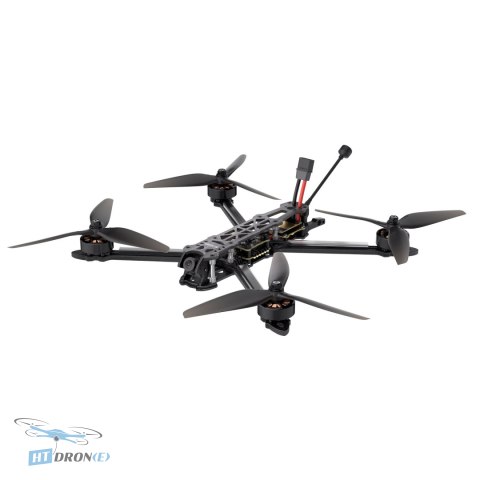

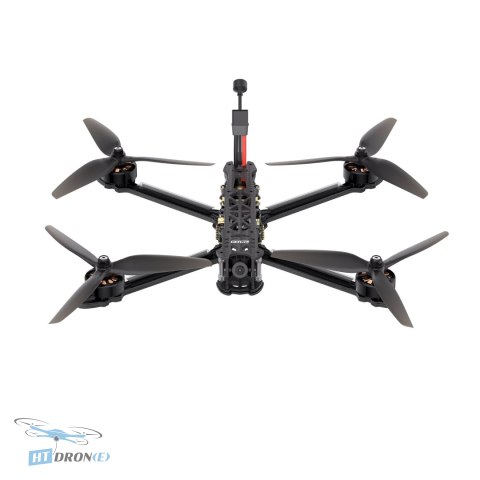

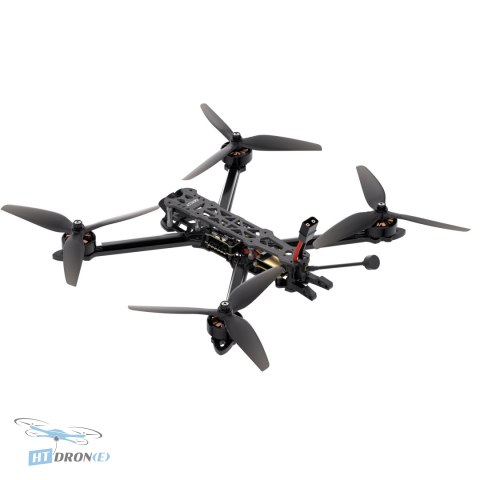

GEPRC MARK4-LR7 Analog PNP FPV Drone for Long Range Flights

Introduction

The GEPRC MARK4-LR7 Analog PNP is a state-of-the-art FPV drone engineered for enthusiasts seeking exceptional performance in long-range flying. Its classic yet striking design houses advanced components to deliver a reliable and thrilling FPV experience. This drone is perfect for pilots who want to explore further and capture breathtaking aerial footage with stability and control.

Key advantages

• Classic and attractive design that stands out.
• Powerful GEPRC RAD 5.8G 1.6W VTX for a stable and reliable video signal.
• High-output performance driven by GEPRC E2806.5 1350KV motors, ideal for 6S batteries.
• Stable flight characteristics thanks to the GEPRC F405 V2 flight controller and SPAN 50A BLHeli_S ESC.
• Comfortable flight feel and excellent overall performance.
• High-quality visuals provided by the Caddx H1 FPV camera.
• Optimized for extended flight times, offering up to 30 minutes of flight.
• PNP (Plug-N-Play) configuration for easier setup and immediate flight readiness.

Technical specifications

• Model: MARK4 7-inch FPV
• Frame: GEP-MK4-7
• Wheelbase: 295 mm
• Top Plate: 3mm
• Bottom Plate: 3mm
• Arm Plate: 5mm
• Rail Plate: 2 mm
• FC: GEPRC F405 V2
• ESC: SPAN 50A BLHeli_S
• MCU: STM32F405RGT6
• Gyro: ICM-42688-P
• OSD: Betaflight OSD with AT7456E chip
• VTX: GEPRC RAD 5.8G 1.6W
• Camera: Caddx H1
• Antenna: Momoda 5.8G RHCP RP-SMA 120mm
• Motor: GEPRC E2806.5 1350KV
• Propeller: Gemfan 7037-3
• Weight: 455g (without battery)
• Receiver: PNP
• Recommended Battery: Lipo 6S 2600mAh-4200mAh / Lion 6S 6000mAh
• Flight Time: 12-30 minutes

Applications

This drone is ideally suited for long-range FPV flights, aerial photography, cinematic FPV, and exploration missions. Its robust build and extended flight time make it a reliable choice for pilots who push the boundaries of flight distance.

Compatibility

Compatible with 6S Lipo (2600mAh-4200mAh) or 6S Lion (6000mAh) batteries for optimal power and flight duration. The PNP configuration ensures easy integration with compatible radio transmitters and receivers.

FAQ

What is the GEPRC MARK4-LR7 Analog PNP drone best suited for?

The GEPRC MARK4-LR7 Analog PNP drone is best suited for long-range FPV flights. Its design and components are optimized for extended flight times, stable flight, and reliable video transmission, making it ideal for exploration and cinematic FPV missions.

What is the maximum flight time for the GEPRC MARK4-LR7 Analog PNP?

The GEPRC MARK4-LR7 Analog PNP drone offers an impressive flight time of 12 to 30 minutes, depending on the battery used and flying conditions. It is recommended to use a 6S Lipo battery between 2600mAh and 4200mAh.

What flight controller and ESC does the GEPRC MARK4-LR7 Analog PNP use?

The GEPRC MARK4-LR7 Analog PNP utilizes the GEPRC F405 V2 flight controller with an STM32F405RGT6 MCU and a SPAN 50A BLHeli_S ESC, ensuring stable performance and comfortable flight control.

Can I buy the GEPRC MARK4-LR7 Analog PNP drone with fast delivery in Europe?

Yes, you can buy the GEPRC MARK4-LR7 Analog PNP drone from HTDRONE. We offer fast worldwide shipping via DHL, ensuring reliable delivery to your location.

What camera is included with the GEPRC MARK4-LR7 Analog PNP?

The GEPRC MARK4-LR7 Analog PNP comes equipped with the Caddx H1 camera, providing excellent visual clarity for your FPV flights.
