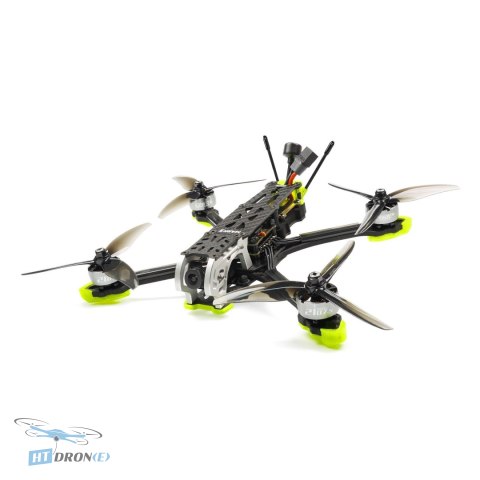

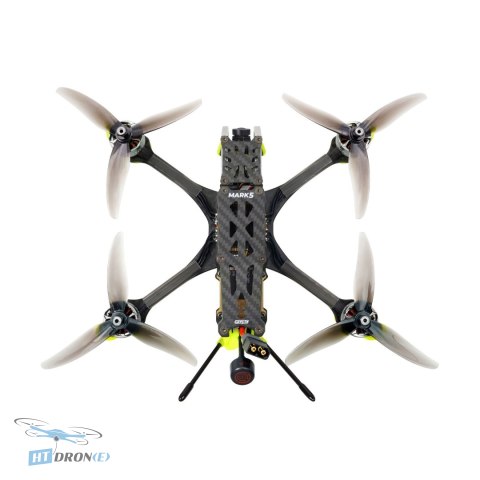

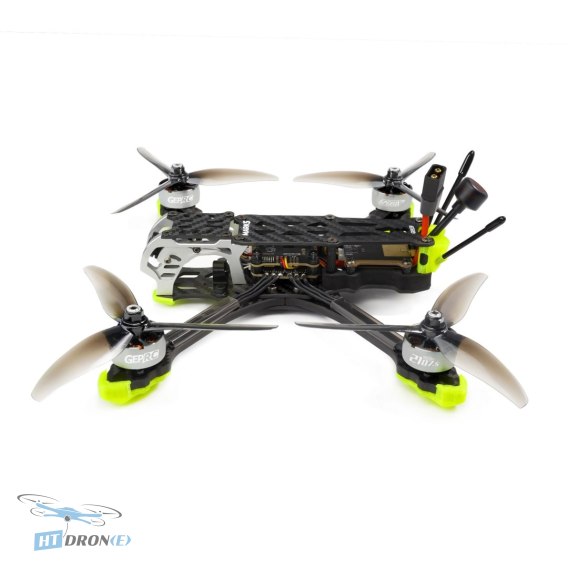

GEPRC MARK5 Analog FPV Drone 6S ELRS 2.4G Freestyle Quadcopter

Introduction

The GEPRC MARK5 Analog drone represents the new generation of freestyle FPV quadcopters, meticulously designed for the demands of advanced freestyle flying and intense bando-bashing. Its robust construction and cutting-edge electronics provide a stable, high-performance platform for pilots seeking the ultimate FPV experience. This drone is optimized for those who push the limits and require reliable, responsive equipment.

Key advantages

• Advanced X-frame design with unique shock-absorbing construction for reduced vibrations.
• Durable and lightweight aluminum alloy side plates enhance structural integrity.
• High-performance GEPRC SPAN F722-BT-HD V2 FC with Bluetooth for easy field tuning.
• Powerful SPAN G50A BLHeli_32 50A ESC paired with GEPRC SPEEDX2 2107.5 motors for explosive power.
• Smooth and stable flight characteristics thanks to HQ Ethix S5 propellers.
• Versatile camera mounting options for popular action cameras like GP 8/9/10, Insta 360 GO2, and Caddx Peanut.
• Pre-tuned for exceptional performance straight out of the box, minimizing setup time.
• Built for both aggressive freestyle maneuvers and resilient bando-bashing.

Technical specifications

• Model: MARK5 Analog Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5mm
• FC System: SPAN F722-BT-HD V2 (no barometer, more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: RAD VTX 5.8G 1.6W
• Camera: Caddx Ratel2
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5×4×3
• Antenna: GEPRC Momoda 5.8G MMCX RHCP 100mm
• Motor: SPEEDX2 2107.5-1960KV
• Weight: 385.0g (MARK5 Analog 6S TBS)
• Receiver: ELRS 2.4G
• Recommended Battery: LiPo 6S 1050mAh-1550mAh

Applications

This drone is ideal for FPV freestyle flying, cinematic FPV, competitive freestyle events, and durable bando-bashing. Its robust design also makes it suitable for capturing high-quality aerial footage when paired with compatible action cameras.

Compatibility

The GEPRC MARK5 Analog drone is designed to work with LiPo 6S batteries ranging from 1050mAh to 1550mAh, utilizing an XT60 charging connector. It supports various action cameras including GP 8/9/10, Naked GP8, Insta 360 GO2, and Caddx Peanut via included 3D printed mounts. For optimal performance, it's recommended to use the latest version 10.8.0 of Betaflight firmware, along with the corresponding FC Firmware and Factory CLI Dump.

FAQ

What is the GEPRC MARK5 Analog FPV drone best suited for?

The GEPRC MARK5 Analog FPV drone is specifically designed for advanced freestyle flying and aggressive bando-bashing. Its robust construction and high-performance components ensure it can handle demanding maneuvers and impacts.

What flight controller and ESC does the GEPRC MARK5 Analog drone use?

This drone features the GEPRC SPAN F722-BT-HD V2 FC with Bluetooth connectivity for easy tuning and the SPAN G50A BLHeli_32 4IN1 50A ESC, providing powerful and responsive control for a 6S system.

Can I mount action cameras on the GEPRC MARK5 Analog drone?

Yes, the MARK5 comes with two different 3D printed camera mounts compatible with popular action cameras like GP 8/9/10, Naked GP8, Insta 360 GO2, and Caddx Peanut, allowing you to capture stunning aerial footage.

What is the recommended battery for the GEPRC MARK5 Analog drone?

For optimal performance and flight time, a LiPo 6S battery with a capacity between 1050mAh and 1550mAh is recommended. The drone uses an XT60 connector for the battery.

Where can I buy the GEPRC MARK5 Analog FPV drone with fast delivery?

You can buy the GEPRC MARK5 Analog FPV drone at HTDRONE, an FPV specialized store based in Poland. We offer fast delivery within Poland and worldwide shipping via DHL for international orders.
