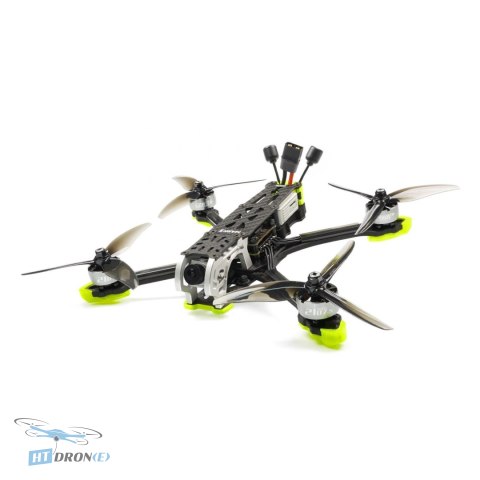

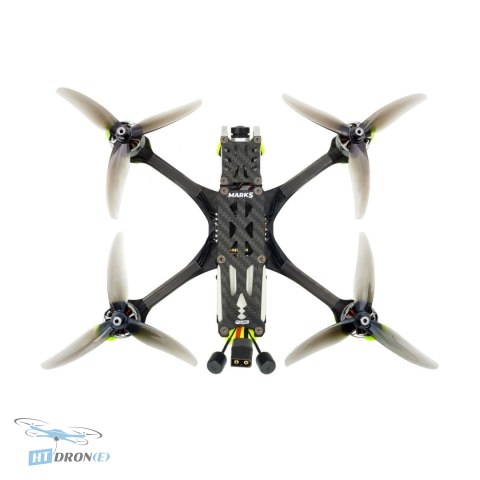

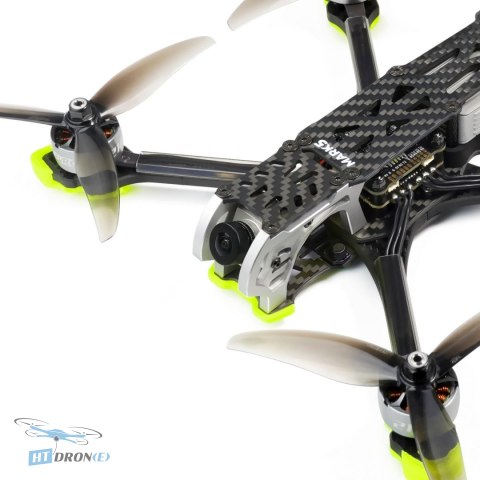

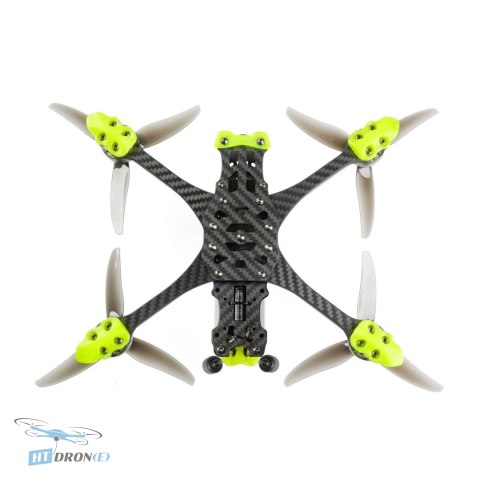

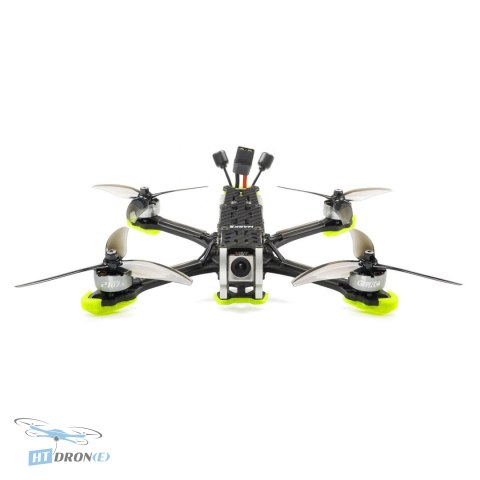

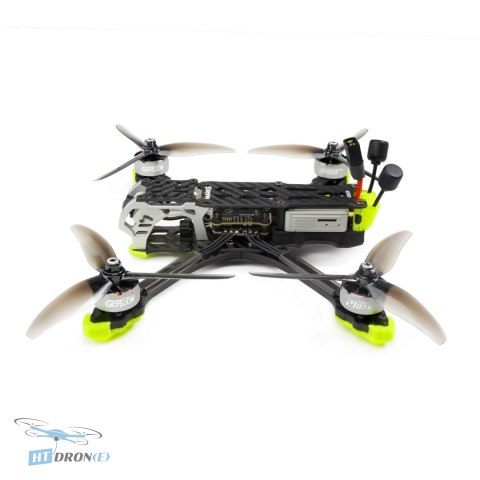

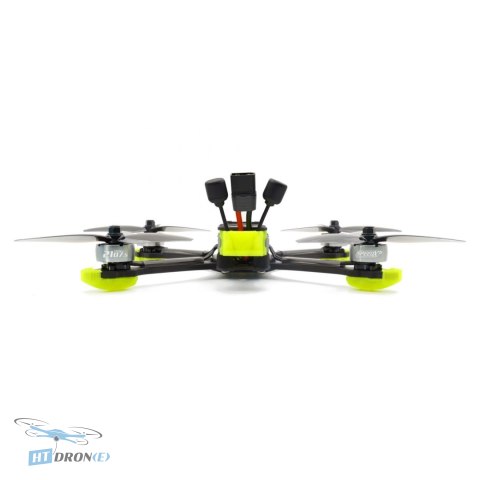

GEPRC MARK5 HD DJI Air Unit PNP 6S Freestyle FPV Drone

Introduction

The GEPRC MARK5 HD is the cutting-edge freestyle FPV drone from GEPRC, meticulously designed for FPV enthusiasts seeking peak performance. Its revolutionary crushed X-arm structure and shock-absorbing design create an incredibly stable electronic system, minimizing vibrations and resonance for smoother flights and better control. This drone is built to push the boundaries of freestyle flying.

Key advantages

• Innovative crushed X-arm design for enhanced stability and reduced vibrations.
• Durable and aesthetic side plates made from aluminum alloy, improving overall strength while reducing weight.
• Integrated wireless Bluetooth connectivity simplifies tuning processes.
• High-definition FPV experience powered by the Caddx DJI Air Unit HD system and Caddx camera.
• Upgraded SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC paired with powerful GEPRC 2107.5 motors for superior power and throttle response.
• Smooth and efficient flight characteristics provided by HQ Ethix S5 5x4x3 propellers.

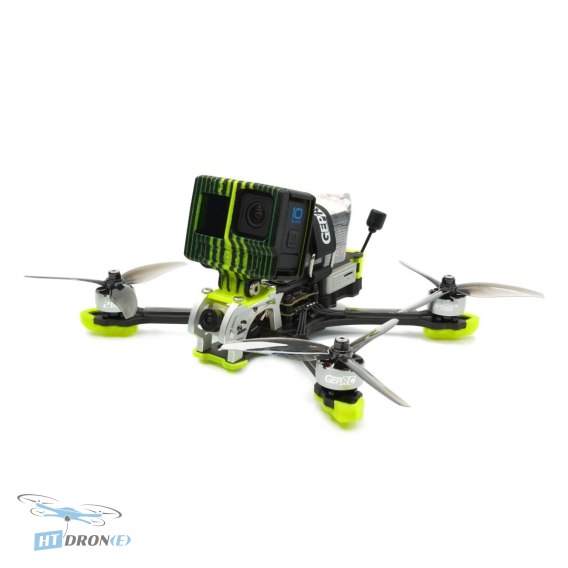

• Includes 3D printed mounts for action cameras like GoPro, Insta 360 GO2, and Caddx Peanut, enabling versatile aerial videography.
• Wide receiver compatibility, including the latest ExpressLRS Rx.

Technical specifications

• Model: MARK5 HD AIR UNIT Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5mm
• FC System: SPAN F722-BT-HD V2 (No barometer, but more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: AIR UNIT Module
• Camera: Caddx Camera
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5x4x3
• Antenna: AIR UNIT Antenna or GEPRC Momoda 5.8G LHCP MMCX Long Antenna
• Motor: SPEEDX2 2107.5-1960KV (6S version)
• Weight: 405.7 g (MARK5 HD AIR UNIT 6S PNP with 3D print)
• Receiver: PNP
• Recommended Battery: LiPo 6S 1050mAh-1550mAh (6S version)

Applications

This GEPRC MARK5 HD drone is expertly tuned for intense FPV freestyle flying. It's also capable of capturing stunning aerial footage thanks to its action camera mounting options. Ideal for pilots looking to perform advanced tricks, capture dynamic video content, and enjoy a high-performance FPV experience.

Compatibility

The drone comes as PNP (Plug and Play), ready to bind with your compatible radio transmitter. It supports a wide range of 6S LiPo batteries (1050mAh-1550mAh). The included antenna options and 3D printed mounts ensure compatibility with various FPV systems and action cameras.

FAQ

What makes the GEPRC MARK5 HD ideal for freestyle FPV pilots?

The MARK5 HD is designed with a unique crushed X-arm structure and shock-absorbing system that significantly reduces vibrations and resonance, providing a more stable flight experience crucial for complex freestyle maneuvers. Its powerful components ensure responsive control.

What FPV system does the GEPRC MARK5 HD use?

This version is equipped with the Caddx DJI Air Unit HD system and a Caddx camera, delivering high-definition digital FPV feed for an immersive flying experience. It also supports a GEPRC Momoda 5.8G antenna for extended range.

What are the key technical specifications of the GEPRC MARK5 HD?

It features a 225mm wheelbase, a robust frame with 5mm arm plates, a SPAN F722-BT-HD V2 flight controller, SPAN G50A 4-6S ESC, SPEEDX2 2107.5-1960KV motors, and HQ Ethix S5 propellers. It's designed for 6S LiPo batteries.

Can I mount an action camera on the GEPRC MARK5 HD?

Yes, the drone includes two 3D printed mounts compatible with popular action cameras such as GoPro, Naked GP8, Insta 360 GO2, and Caddx Peanut, allowing you to capture high-quality aerial footage.
