GEPRC MARK5 HD DJI Air Unit TBS NanoRX 4S FPV Freestyle Drone

Introduction

The GEPRC MARK5 HD is a state-of-the-art FPV freestyle drone designed for enthusiasts who demand peak performance and cutting-edge technology. Built with an innovative crushed X-arm structure and reinforced with aluminum alloy side plates, the MARK5 HD excels in minimizing vibrations and resonance, ensuring a stable and reliable electronic system. This drone is engineered to push the boundaries of freestyle FPV flight, offering an unparalleled flying experience.

Key advantages

• Innovative crushed X-arm design for superior shock absorption and stability.
• Durable aluminum alloy side plates enhance aesthetics, reduce weight, and increase overall strength.
• Integrated Caddx DJI Air Unit HD system provides high-definition FPV feed.
• Powerful performance driven by the SPAN G50A BLHeli_32 50A ESC and GEPRC SPEEDX2 2107.5 motors.
• Smooth and responsive flight characteristics thanks to HQ Ethix S5 propellers.
• Supports wireless Bluetooth tuning for simplified setup and adjustments.
• Versatile receiver options, including the latest ExpressLRS Rx and TBS Nano RX.

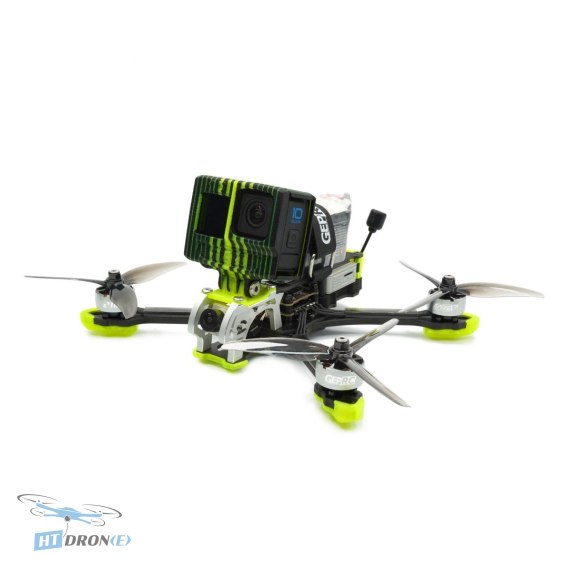

• Includes 3D printed mounts for action cameras like GoPro, Insta360 GO2, and Caddx Peanut.

Technical specifications

• Model: MARK5 HD AIR UNIT Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5 mm
• FC System: SPAN F722-BT-HD V2 (No barometer, but more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: AIR UNIT Module
• Camera: Caddx Camera
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5×4×3
• Antenna: AIR UNIT Antenna or GEPRC Momoda 5.8G LHCP MMCX Long Antenna
• Motor: SPEEDX2 2107.5-2450KV (4S version)
• Weight: 405.7 g (MARK5 HD AIR UNIT 6S PNP with 3D print)
• Receiver: TBS Nano RX
• Recommended Battery: 4S LiPo 1300mAh-1800mAh (4S version)

Applications

This FPV drone is primarily designed for freestyle aerial acrobatics and dynamic FPV flying. Its robust construction and high-performance components make it suitable for advanced pilots looking to perform complex maneuvers, capture cinematic FPV footage, and participate in drone racing events.

Compatibility

The GEPRC MARK5 HD is compatible with 4S LiPo batteries ranging from 1300mAh to 1800mAh. It supports various receivers, including ExpressLRS Rx and TBS Nano RX. The included 3D printed mounts are compatible with action cameras such as GP, Naked GP8, Insta 360 GO2, and Caddx Peanut.

FAQ

What is the GEPRC MARK5 HD FPV Drone designed for?

The GEPRC MARK5 HD is specifically engineered for advanced FPV freestyle flying. Its innovative design, powerful components, and high-definition FPV system make it ideal for performing complex aerial maneuvers and capturing dynamic footage.

What FPV video system does the GEPRC MARK5 HD use?

This HD version of the GEPRC MARK5 features the Caddx Air Unit HD system, providing a clear and high-definition video feed for an immersive FPV experience. It also supports alternative antennas like the GEPRC Momoda 5.8G LHCP MMCX Long Antenna.

What are the key advantages of the GEPRC MARK5 HD drone?

Key advantages include its unique crushed X-arm design for vibration dampening, durable aluminum side plates, powerful SPAN G50A ESC and SPEEDX2 motors, smooth HQ Ethix S5 propellers, and support for wireless Bluetooth tuning.

What batteries are recommended for the GEPRC MARK5 HD?

The recommended battery for the 4S version of the GEPRC MARK5 HD is a 4S LiPo battery with a capacity between 1300mAh and 1800mAh. This ensures optimal power and flight time for freestyle performance.

Where can I buy the GEPRC MARK5 HD FPV Drone with fast delivery?

You can buy the GEPRC MARK5 HD FPV Drone at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL. Check our shop for the best deals and place your order today.
