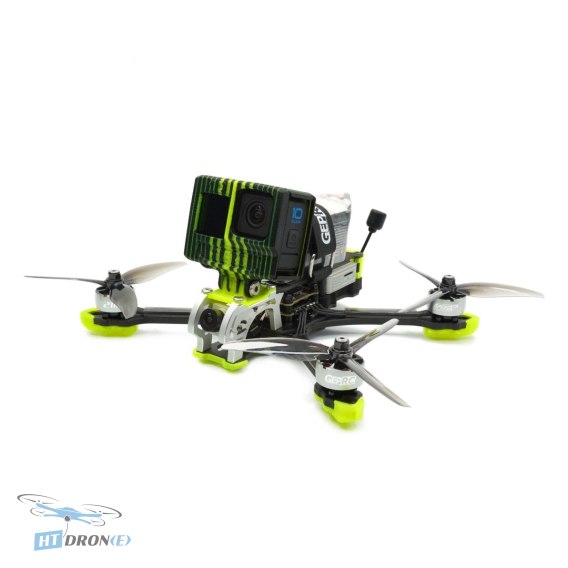

GEPRC MARK5 HD Quadcopter Drone DJI Air Unit ELRS 868/915MHz 4S Freestyle

Introduction

The GEPRC MARK5 HD is a cutting-edge freestyle FPV drone engineered for the discerning pilot. Featuring an innovative crashed X arm design, it significantly reduces vibrations and resonance, providing a stable platform for its electronic systems. This drone is built to deliver exceptional performance in freestyle maneuvers, offering a unique blend of durability, power, and agility. Whether you're a seasoned FPV pilot or looking to upgrade your setup, the MARK5 HD is designed to impress.

Key advantages

• Innovative crashed X arm design for superior shock absorption and stability.
• Integrated DJI Air Unit HD system for high-definition FPV feed.
• ExpressLRS (ELRS) receiver for reliable, long-range control.
• Durable aluminum alloy side plates enhance aesthetics and resilience.
• Powerful GEPRC 2107.5 motors and SPAN G50A BLHeli_32 ESC for dynamic flight.
• Bluetooth connectivity simplifies tuning and setup procedures.
• Includes 3D printed mounts for action cameras like GoPro, Insta 360 GO2, and Caddx Peanut.
• Optimized for freestyle flying with HQ Ethix S5 propellers for smooth performance.

Technical specifications

• Model: MARK5 HD AIR UNIT Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5 mm
• FC System: SPAN F722-BT-HD V2 (No barometer, but more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: AIR UNIT Module
• Camera: Caddx Camera
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5×4×3
• Antenna: AIR UNIT Antenna or GEPRC Momoda 5.8G LHCP MMCX long antenna
• Motor: SPEEDX2 2107.5-2450KV (4S version)
• Weight: 405.7 g (MARK5 HD AIR UNIT 6S PNP with 3D print)
• Receiver: ELRS 915
• Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S version)

Applications

This drone is ideally suited for advanced FPV freestyle flying, aerial acrobatics, and dynamic videography. Its robust construction and high-performance components make it capable of intense flight sessions and complex maneuvers. Pilots can also use it for capturing stunning aerial footage with compatible action cameras.

Compatibility

The GEPRC MARK5 HD is compatible with 4S LiPo batteries ranging from 1300mAh to 1800mAh. It utilizes an XT60 charging connector. The drone supports various action cameras via included 3D printed mounts, such as GoPro, Naked GP8, Insta 360 GO2, and Caddx Peanut. It can use the standard AIR UNIT antenna or a GEPRC Momoda 5.8G LHCP MMCX long antenna.

FAQ

What is the GEPRC MARK5 HD drone best suited for?

The GEPRC MARK5 HD drone is specifically designed for advanced FPV freestyle flying and aerial acrobatics. Its innovative design and powerful components make it ideal for pilots who demand high performance, stability, and durability during complex maneuvers.

What FPV and control systems does the GEPRC MARK5 HD drone use?

This version of the GEPRC MARK5 HD is equipped with the DJI Air Unit HD system for high-definition video transmission and a Caddx camera. For control, it features an integrated ExpressLRS (ELRS) 915MHz receiver, known for its reliable and long-range performance.

What are the key performance features of the GEPRC MARK5 HD?

Key features include a unique crashed X arm design for shock absorption, powerful SPEEDX2 2107.5 motors paired with a 50A BLHeli_32 ESC for dynamic flight, and smooth performance from HQ Ethix S5 propellers. It also supports Bluetooth for easier tuning.

What battery is recommended for the GEPRC MARK5 HD 4S version?

For the 4S version of the GEPRC MARK5 HD, a LiPo battery with a capacity between 1300mAh and 1800mAh is recommended to ensure optimal flight time and performance. It uses an XT60 connector for power.
