GEPRC MARK5 HD Wasp ELRS 2.4G 4S Freestyle FPV Drone

Introduction

The GEPRC MARK5 HD Wasp ELRS 2.4G is a cutting-edge FPV drone engineered specifically for the demands of freestyle piloting. It boasts an innovative crushed X-arm structure designed to absorb shocks and minimize vibrations, creating a stable platform for its advanced electronics. This drone is built for pilots who seek exceptional performance, durability, and a superior visual experience in their FPV adventures.

Key advantages

• Innovative crushed X-arm design for superior shock absorption and stability.
• Durable and stylish aluminum alloy side plates enhance both aesthetics and structural integrity.
• Integrated Caddx Vista HD system paired with a Nebula Pro camera for crystal-clear FPV video transmission.
• Powerful propulsion system featuring the SPAN G50A BLHeli_32 4IN1 50A ESC and GEPRC SPEEDX2 2107.5 motors for aggressive maneuvers.
• Equipped with the latest ExpressLRS (ELRS) 2.4G receiver for reliable and low-latency control.
• Smooth and efficient flight dynamics powered by HQ Ethix S5 5x4x3 propellers.

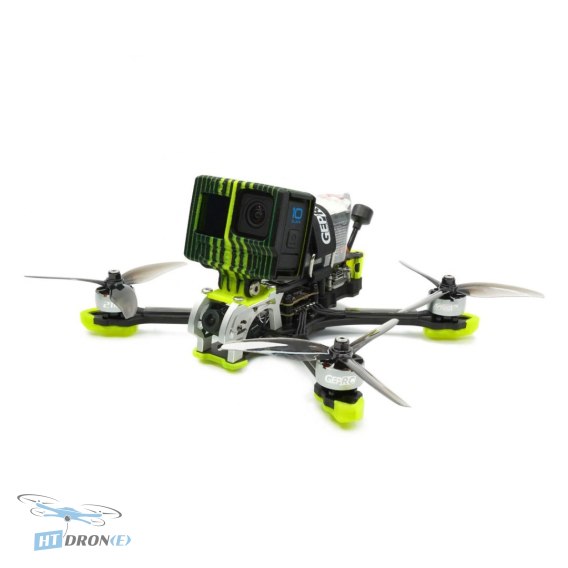

• Includes 3D printed mounts for popular action cameras like GoPro, Insta 360 GO2, and Caddx Peanut.
• Bluetooth connectivity allows for convenient tuning and adjustments directly from the field.

Technical specifications

• Model: MARK5 HD Vista Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate Thickness: 2.5 mm
• Bottom Plate Thickness: 2.5 mm
• Arm Plate Thickness: 5 mm
• FC System: SPAN F722-BT-HD V2 (no barometer, enhanced stability)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: Caddx Vista HD System
• Camera: Caddx Nebula Pro
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5x4x3
• Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
• Motor: SPEEDX2 2107.5-2450KV (4S version)
• Weight: 385.5g (MARK5 HD VISTA 6S PNP with 3D print)
• Receiver: ExpressLRS (ELRS) 2.4G
• Recommended Battery: LiPo 4S 1300mAh-1800mAh (for 4S version)

Applications

This FPV drone is ideally suited for freestyle flying, offering the performance and stability required for advanced aerial acrobatics. It's also capable of capturing high-quality aerial footage thanks to its HD video system and action camera mounting options, making it suitable for content creation and cinematic FPV experiences.

Compatibility

The drone is compatible with action cameras such as GoPro, Naked GoPro 8, Insta 360 GO2, and Caddx Peanut via included 3D printed mounts. It supports Bluetooth for tuning and requires a 4S LiPo battery (1300mAh-1800mAh recommended).

FAQ

What is the GEPRC MARK5 HD Wasp ELRS 2.4G drone best suited for?

The GEPRC MARK5 HD Wasp ELRS 2.4G is specifically designed and optimized for freestyle FPV flying. Its innovative frame design, powerful motors, and responsive ESC provide the agility and stability needed for complex tricks and maneuvers.

What FPV HD system does the GEPRC MARK5 HD Wasp drone use?

This model features the Caddx Vista HD system paired with a Caddx Nebula Pro camera. This combination delivers high-definition FPV video feed, ensuring clear and detailed visuals during flight.

What type of receiver is included with the GEPRC MARK5 HD Wasp?

The GEPRC MARK5 HD Wasp is equipped with an ExpressLRS (ELRS) 2.4G receiver. ELRS is known for its long range, low latency, and high packet rate, providing a reliable and responsive control link.

What are the recommended battery specifications for the GEPRC MARK5 HD Wasp 4S version?

For the 4S version of the GEPRC MARK5 HD Wasp, a LiPo battery with a capacity of 1300mAh to 1800mAh is recommended. This provides a good balance between flight time and power delivery for freestyle performance.

Where can I buy the GEPRC MARK5 HD Wasp ELRS 2.4G drone with fast delivery?

You can buy the GEPRC MARK5 HD Wasp ELRS 2.4G drone at HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable worldwide delivery via DHL. Check our store for the best deals!
