GEPRC MARK5 HD Wasp ELRS 2.4G 6S Freestyle FPV Drone

Introduction

The GEPRC MARK5 HD Wasp is a top-tier FPV drone meticulously engineered for the demanding world of freestyle piloting. Its unique crushed X-arm construction is a game-changer, significantly reducing vibrations and resonance to provide an ultra-stable platform for its advanced electronics. This drone is built for pilots who push the limits and demand the best performance and reliability in their FPV experience. Get ready to elevate your freestyle game with this exceptional quadcopter from GEPRC.

Key advantages

• Innovative crushed X-arm design for enhanced stability and vibration dampening.
• Durable aluminum alloy side plates improve aesthetics, reduce weight, and boost overall strength.
• Integrated Caddx Vista HD system with Nebula Pro camera for stunning, high-definition FPV footage.
• Powerful propulsion system featuring the SPAN G50A BLHeli_32 4IN1 ESC and GEPRC 2107.5 motors for aggressive performance.
• ExpressLRS (ELRS) 2.4G receiver ensures a robust and low-latency control link.
• Smooth and efficient flight powered by HQ Ethix S5 5x4x3 propellers.
• Convenient on-the-go tuning with Bluetooth connectivity for the flight controller.

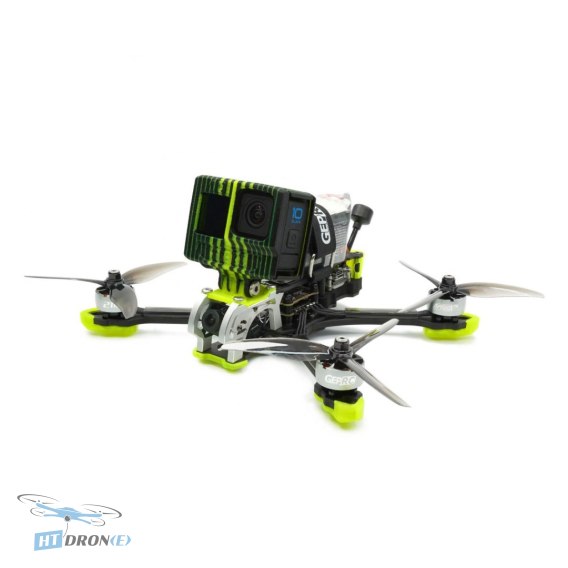

• Includes 3D printed mounts for action cameras like GoPro, Naked GoPro 8, Insta360 GO2, and Caddx Peanut.

Technical specifications

• Model: MARK5 HD Vista Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5 mm
• FC System: SPAN F722-BT-HD V2 (no barometer, but more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: Caddx Vista
• Camera: Caddx Nebula Pro
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5x4x3
• Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
• Motor: SPEEDX2 2107.5-1960KV (6S version)
• Weight: 385.5g (MARK5 HD VISTA 6S PNP with 3D print)
• Receiver: ELRS 2.4G
• Recommended Battery: LiPo 6S 1050mAh-1550mAh (6S version)

Applications

This FPV drone is purpose-built for freestyle flying, offering exceptional maneuverability and stability for dynamic aerial acrobatics. It's also suitable for capturing high-quality FPV footage and can be equipped with action cameras for cinematic aerial videography. The robust design makes it a reliable choice for intense FPV sessions.

Compatibility

The GEPRC MARK5 HD Wasp is compatible with 6S LiPo batteries (1050mAh-1550mAh recommended) and utilizes an XT60 charging connector. It supports various action cameras via included 3D printed mounts, including GoPro, Naked GoPro 8, Insta360 GO2, and Caddx Peanut. The flight controller features Bluetooth for wireless tuning.

FAQ

What is the best battery for the GEPRC MARK5 HD Wasp 6S drone?

The recommended battery for the GEPRC MARK5 HD Wasp 6S version is a 6S LiPo battery with a capacity between 1050mAh and 1550mAh. Using the correct battery ensures optimal flight performance and longevity.

Does the GEPRC MARK5 HD Wasp drone support HD video transmission?

Yes, the MARK5 HD Wasp is equipped with the Caddx Vista HD system and the Nebula Pro camera, providing high-definition FPV video transmission for an immersive flying experience.

What makes the GEPRC MARK5 HD Wasp suitable for freestyle FPV?

Its design features an innovative crushed X-arm construction that minimizes vibrations and resonance, ensuring stable flight. Combined with powerful motors and ESCs, it offers excellent responsiveness and control crucial for freestyle maneuvers.

Where can I buy the GEPRC MARK5 HD Wasp FPV drone with fast delivery?

You can buy the GEPRC MARK5 HD Wasp drone at HTDRONE. We offer fast shipping within Poland and reliable worldwide delivery via DHL, ensuring you receive your order promptly.

What receiver system does the GEPRC MARK5 HD Wasp use?

This version of the GEPRC MARK5 HD Wasp comes with the ExpressLRS (ELRS) 2.4G receiver. ELRS is known for its excellent range, reliability, and low latency, making it a preferred choice for many FPV pilots.
