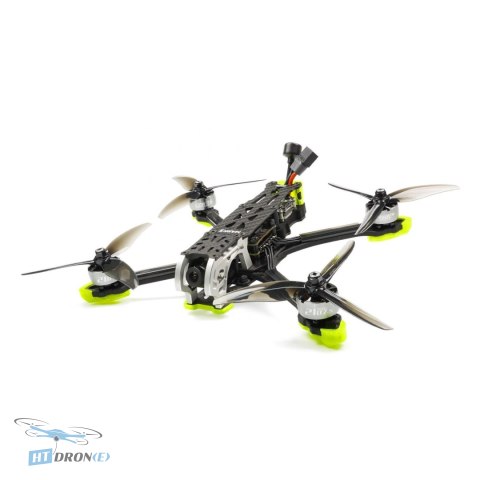

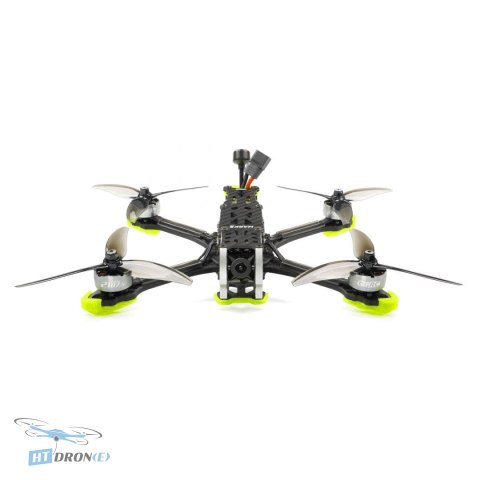

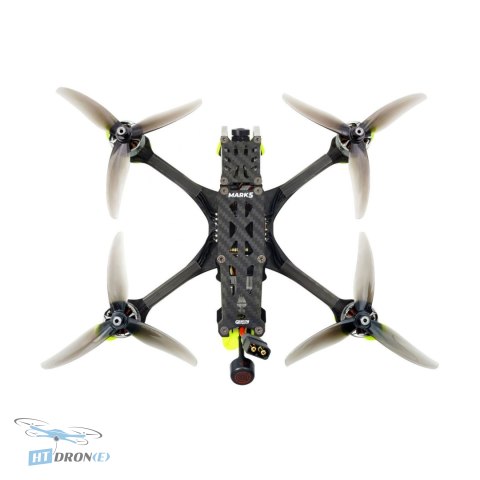

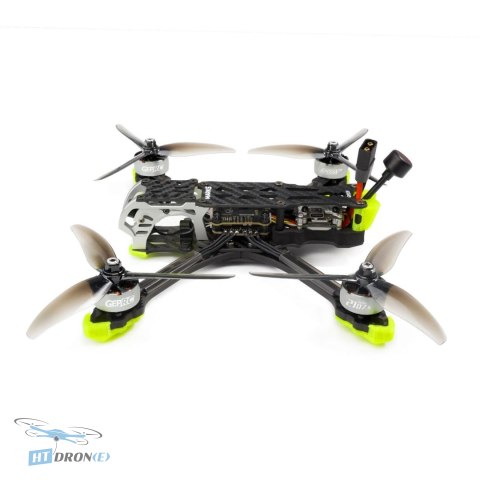

GEPRC MARK5 HD Wasp ELRS 868/915MHz 4S FPV Freestyle Drone

Introduction

The GEPRC MARK5 HD Wasp ELRS 868/915MHz 4S is a cutting-edge FPV drone meticulously engineered for the demands of freestyle flying. Its innovative crushed X-arm design provides exceptional vibration and resonance dampening, creating a stable platform for its advanced electronics. This drone is built for pilots who demand top-tier performance, durability, and an immersive FPV experience. Whether you're pushing the limits in freestyle maneuvers or exploring new flight paths, the MARK5 HD Wasp delivers.

Key advantages

• Innovative crushed X-arm design for superior shock absorption and flight stability.
• High-quality aluminum alloy side plates enhance aesthetics, strength, and reduce weight.
• Integrated Caddx Vista HD system with Nebula Pro camera for stunning high-definition FPV.
• Latest ExpressLRS (ELRS) 915MHz receiver for robust and reliable long-range control.
• Powerful GEPRC SPEEDX2 2107.5 motors paired with SPAN G50A BLHeli_32 ESC for explosive performance and quick response.
• Smooth and efficient flight thanks to HQ Ethix S5 5x4x3 propellers.
• Convenient wireless Bluetooth tuning capability for easy field adjustments.

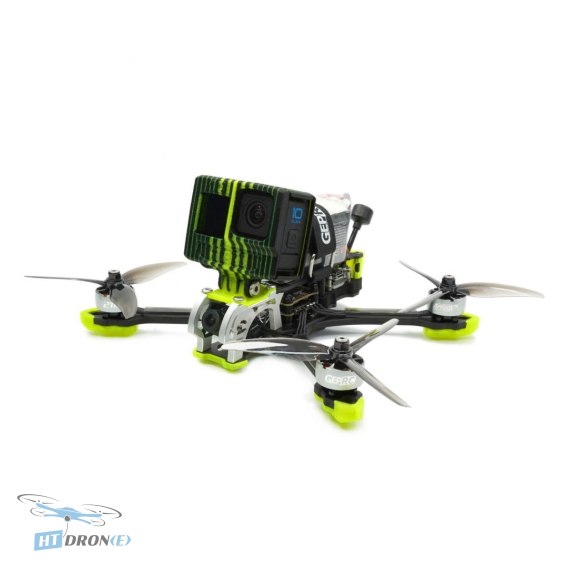

• Includes 3D printed mounts for action cameras like GoPro, Naked GoPro 8, Insta360 GO2, and Caddx Peanut.

Technical specifications

• Model: MARK5 HD Vista Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5mm
• FC System: SPAN F722-BT-HD V2 (No barometer, but more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: Caddx Vista
• Camera: Caddx Nebula Pro
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5x4x3
• Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
• Motor: SPEEDX2 2107.5-2450KV (4S version)
• Weight: 385.5g (MARK5 HD VISTA 6S PNP with 3D print)
• Receiver: ELRS 915 MHz
• Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S version)

Applications

This drone is primarily designed for freestyle FPV flying, allowing pilots to perform complex aerial acrobatics and maneuvers. It is also suitable for experienced pilots looking for a robust platform for cinematic FPV and general aerial exploration. The integrated HD system makes it ideal for capturing high-quality aerial footage.

Compatibility

The GEPRC MARK5 HD Wasp is compatible with 4S LiPo batteries ranging from 1300mAh to 1800mAh. It features a standard XT60 charging connector. The included 3D printed mounts ensure compatibility with popular action cameras.

FAQ

What is the GEPRC MARK5 HD Wasp drone best suited for?

The GEPRC MARK5 HD Wasp drone is specifically designed for freestyle FPV flying. Its innovative design and powerful components allow for aggressive maneuvers and stable flight, making it ideal for pilots who enjoy performing tricks and exploring aerial acrobatics.

What FPV system does the GEPRC MARK5 HD Wasp use?

This model features the Caddx Vista HD system paired with the Nebula Pro camera, providing pilots with a clear, high-definition FPV feed. It also includes an ExpressLRS (ELRS) 915MHz receiver for reliable and responsive control.

What are the key technical advantages of the GEPRC MARK5 HD Wasp?

Key advantages include its crushed X-arm design for shock absorption, aluminum alloy side plates for durability and aesthetics, and a powerful combination of GEPRC SPEEDX2 2107.5 motors and SPAN G50A BLHeli_32 ESC. It also supports Bluetooth tuning for convenience.

Can I mount an action camera on the GEPRC MARK5 HD Wasp?

Yes, the drone comes with two 3D printed mounts compatible with action cameras such as GoPro, Naked GoPro 8, Insta360 GO2, and Caddx Peanut, allowing you to capture high-quality aerial footage of your flights.

Where can I buy the GEPRC MARK5 HD Wasp drone with fast delivery?

You can buy the GEPRC MARK5 HD Wasp drone at HTDRONE. We are based in Poland and offer fast shipping within Poland. International customers can benefit from worldwide delivery via DHL.
