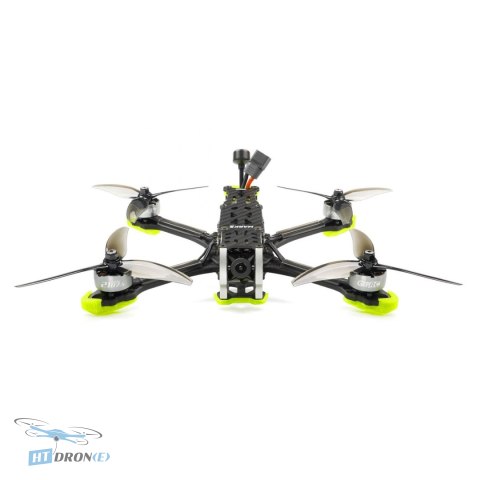

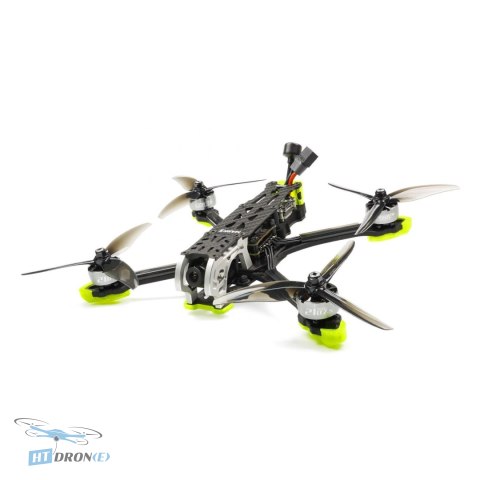

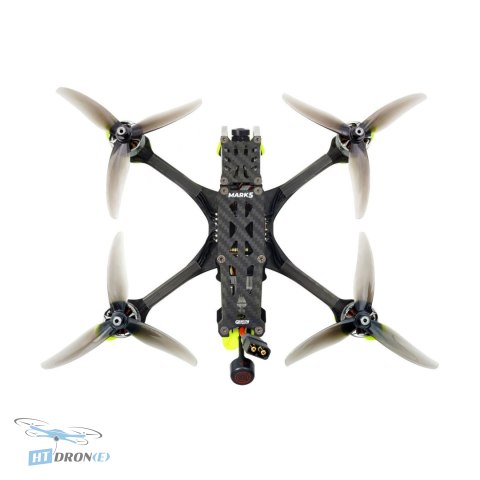

GEPRC MARK5 HD Wasp TBS NanoRX 4S Freestyle FPV Drone

Introduction

The GEPRC MARK5 HD Wasp is a cutting-edge FPV drone engineered specifically for the demands of freestyle flying. Its unique crushed X-arm structure is innovatively designed to absorb shocks, significantly minimizing vibrations and resonance. This ensures a consistently stable electronic system, allowing pilots to push their limits with confidence. Whether you're performing complex aerial maneuvers or capturing dynamic FPV footage, the MARK5 HD Wasp is built to perform.

Key Advantages

• Innovative crushed X-arm design for enhanced stability and vibration reduction.
• Premium aluminum alloy side plates offer improved aesthetics, reduced weight, and increased durability.
• Integrated Bluetooth wireless connectivity enables convenient field tuning.
• High-definition FPV experience powered by the Caddx Vista HD system and Nebula Pro camera.
• Versatile receiver options, including the advanced ExpressLRS Rx.
• Upgraded SPAN G50A BLHeli_32 4IN1 50A ESC paired with GEPRC SPEEDX2 2107.5 motors for potent performance and rapid response.
• Smooth and efficient flight characteristics provided by HQ Ethix S5 5x4x3 propellers.

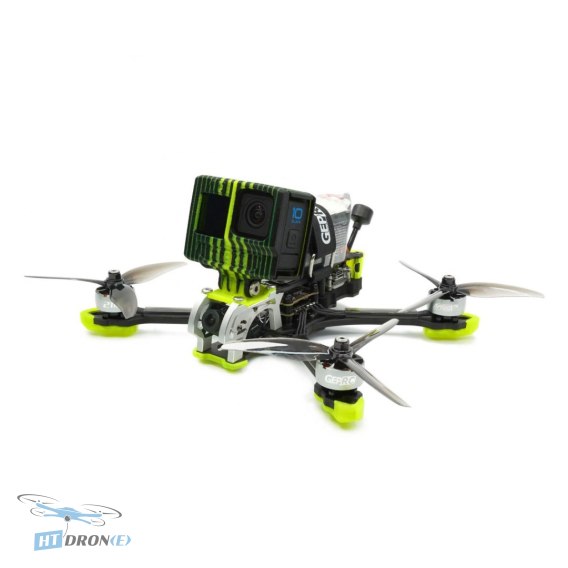

• Includes 3D printed mounts compatible with popular action cameras like GP, Naked GP8, Insta 360 GO2, and Caddx Peanut.

Technical Specifications

• Model: MARK5 HD Vista Quadcopter
• Brand: GEPRC
• Frame: GEP-MK5
• Wheelbase: 225 mm
• Top Plate: 2.5 mm
• Bottom Plate: 2.5 mm
• Arm Plate: 5mm
• FC System: SPAN F722-BT-HD V2 (No barometer, but more stable)
• MCU: STM32F722
• Gyroscope: 42688-P
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• VTX: VISTA
• Camera: Nebula Pro
• Charging Connector: XT60
• Propeller: HQ Ethix S5 5x4x3
• Antenna: GEPRC Momoda 5.8G UFL LHCP 85mm
• Motor: SPEEDX2 2107.5-2450KV (4S version)
• Weight: 385.5g (MARK5 HD VISTA 6S PNP with 3D print)
• Receiver: TBS Nano RX
• Recommended Battery: LiPo 4S 1300mAh-1800mAh (4S version)

Applications

This FPV drone is primarily designed for freestyle flying, offering incredible maneuverability and stability for advanced tricks and cinematic aerial videography. It is also suitable for general FPV quadcopter use and can be adapted for various aerial hobbyist applications where high performance and HD video transmission are desired.

Compatibility

The GEPRC MARK5 HD Wasp is compatible with LiPo 4S 1300mAh-1800mAh batteries. It supports TBS Nano RX receivers and features Bluetooth connectivity for tuning. The included 3D printed mounts are designed for action cameras such as GP, Naked GP8, Insta 360 GO2, and Caddx Peanut.

FAQ

What is the main application for the GEPRC MARK5 HD Wasp drone?

The GEPRC MARK5 HD Wasp is primarily designed for freestyle FPV flying, offering superior stability and maneuverability for performing advanced aerial tricks and capturing dynamic footage.

What FPV system does the GEPRC MARK5 HD Wasp use?

This HD version comes equipped with the Caddx Vista HD system and the Nebula Pro camera, providing a high-definition FPV experience for pilots.

What type of battery is recommended for the GEPRC MARK5 HD Wasp 4S version?

For the 4S version of the GEPRC MARK5 HD Wasp, a LiPo 4S 1300mAh-1800mAh battery is recommended to ensure optimal performance and flight time.

Does the GEPRC MARK5 HD Wasp have Bluetooth connectivity?

Yes, the GEPRC MARK5 HD Wasp supports wireless Bluetooth connectivity, which allows for convenient tuning of the drone's settings directly in the field.
