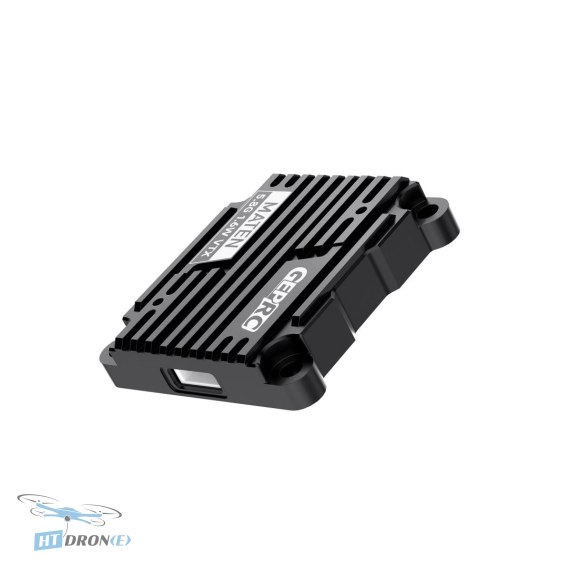

GEPRC MATEN PRO 5.8G 1.6W VTX - High Power FPV Video Transmitter

Introduction

The GEPRC MATEN PRO 5.8G 1.6W VTX is a newly developed, high-performance video transmitter engineered for FPV enthusiasts seeking exceptional range and signal stability. Designed by the GEPRC team, this VTX offers robust features and a powerful output, making it a top choice for competitive FPV flying and long-distance exploration. Its advanced design ensures reliable performance even in challenging conditions.

Key advantages

• Four adjustable power levels up to 1600mW, perfect for extended range FPV flights.

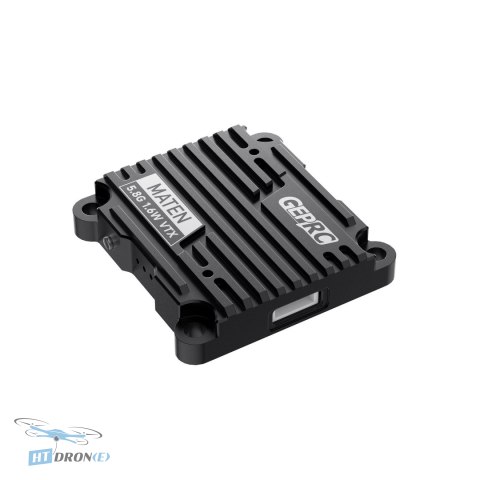

• High-strength CNC aluminum alloy shell aids in efficient heat dissipation and provides impact resistance.
• Wide input voltage range (7-36V) accommodates various battery configurations.
• Integrated temperature control protection prevents overheating and damage.
• Supports IRC Tramp protocol for convenient OSD parameter adjustments.
• Built-in microphone for real-time audio transmission from your drone.
• Easy operation with a single function button and three indicator lights.
• Robust construction with a 30.5x30.5mm mounting pattern for standard builds.

Technical specifications

• Model: MATEN 5.8G 1.6W VTX
• Dimensions: 36.4x36.4x7.9mm
• Mounting Hole: 30.5x30.5mm (M3)
• Output Power: 25mW/200mW/600mW/1600mW/pit mode
• Frequency: 5.8G
• Channels: 72CH
• Input Voltage: DC7-36V (2-8S Battery)
• 5V Output: 5V@600mA (for camera/fan)
• Protocol: IRC Tramp

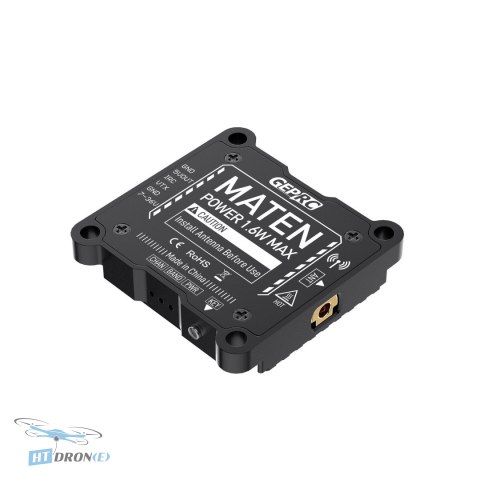

• Antenna Interface: MMCX
• Cable Interface: SH1.0 6pin
• Video Format: PAL/NTSC
• Microphone: Built-in
• Weight: 17.5g

Applications

This VTX is ideal for competitive FPV racing, freestyle flying, long-range exploration, cinematic FPV, and any application requiring a powerful and stable video transmission system. Its high output power ensures a clear signal over significant distances.

Compatibility

The GEPRC MATEN PRO 5.8G 1.6W VTX features a standard 30.5x30.5mm mounting pattern (M3) compatible with most FPV frames. It supports a wide input voltage range of 7-36V (2-8S LiPo batteries) and uses the IRC Tramp protocol for easy configuration via your FPV system's OSD. The 5V output is specifically designed for powering compatible FPV cameras or cooling fans.

FAQ

What is the maximum power output of the GEPRC MATEN PRO 5.8G 1.6W VTX?

The GEPRC MATEN PRO 5.8G 1.6W VTX offers four adjustable power levels, with a maximum output of 1600mW. This high power output is ideal for achieving long-range FPV flights and maintaining a stable video signal.

Does the GEPRC MATEN PRO 5.8G VTX support OSD control?

Yes, the MATEN PRO VTX supports the IRC Tramp protocol, which allows for easy parameter adjustments directly through your FPV system's On-Screen Display (OSD). This makes setup and tuning much more convenient.

What voltage range does the GEPRC MATEN PRO 5.8G 1.6W VTX support?

This VTX is designed for flexibility, supporting a wide input voltage range from DC 7V to 36V, which corresponds to a 2S to 8S LiPo battery. It also features a built-in temperature protection function to prevent overheating.

Where can I buy the GEPRC MATEN PRO 5.8G 1.6W VTX with fast delivery?

You can order the GEPRC MATEN PRO 5.8G 1.6W VTX from HTDRONE, your specialized FPV drone parts store. We offer fast shipping within Poland and reliable delivery to Ukraine via Nova Poshta, as well as worldwide shipping via DHL.

What is the mounting size for the GEPRC MATEN PRO VTX?

The GEPRC MATEN PRO 5.8G 1.6W VTX utilizes a standard 30.5x30.5mm mounting hole pattern, compatible with most FPV flight controller stacks and frames using M3 screws.
