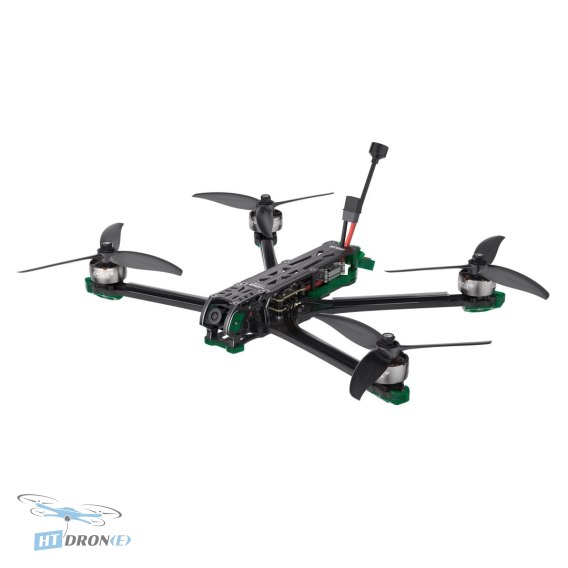

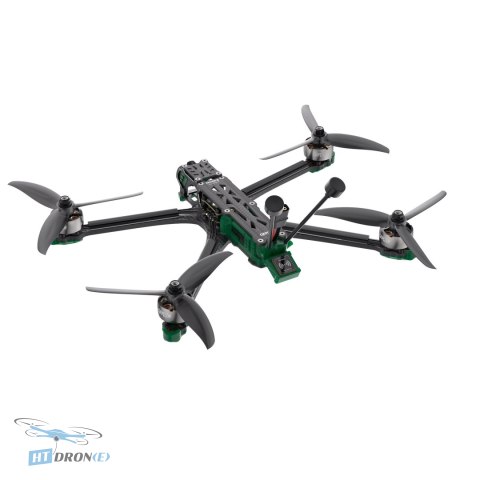

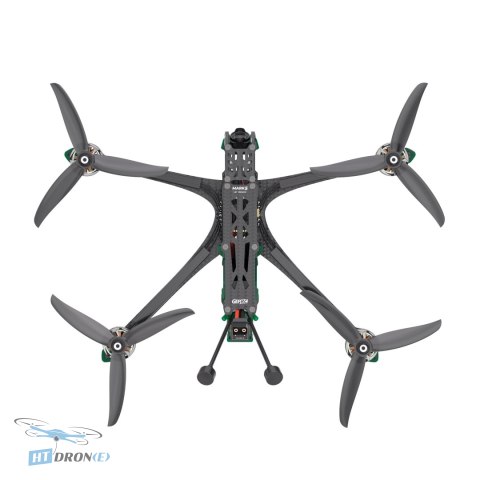

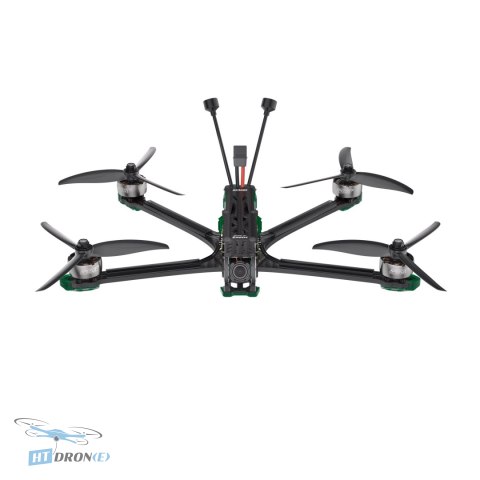

GEPRC MK5D-LR7 HD Wasp GPS ELRS 2.4G Long Range FPV Drone

Introduction

The GEPRC MK5D-LR7 HD Wasp is a significantly upgraded 7-inch FPV drone, building upon the successful MARK5 model. Designed for long-range flights and high-definition aerial recording, this drone offers a refined flying experience with enhanced durability and cutting-edge technology. It's tailored for FPV pilots who demand stability, clear video transmission, and extended flight capabilities for exploration and cinematic capture.

Key advantages

• Upgraded aluminum alloy side plates for increased durability and improved aesthetics.
• Integrated Bluetooth for convenient wireless parameter tuning via mobile phone.
• Reinforced arm strength maintains original style while enhancing resilience.
• New DJI O3 VTX provides crystal-clear HD video, stable signal, low latency, and 4K/120fps recording capabilities.
• Unique frame shock absorption design ensures a stable electronic system environment with reduced vibrations.
• Independent capacitor and buzzer compartments contribute to overall machine stability and smooth operation.
• Versatile mounting options support a wide range of cameras including full GoPro series, Naked GoPro 8, Insta 360 GO2, and Caddx Peanut for stable, clear footage.
• Extended flight times of up to 30 minutes with the GEP-VTC6-6000mAh battery, or 20 minutes with a GoPro 10.

Technical specifications

• Model: MK5D-LR7
• Brand: GEPRC
• Frame: GEP-MK5D-LR7
• Dimensions: 230mm×350mm
• Wheelbase: 335mm
• Top Plate: 2.5mm
• Bottom Plate: 2.5mm
• Arm Plate: 6.0mm
• FC System: SPAN F722-BT-HD V2
• MCU: STM32F722
• IMU: ICM 42688-P (SPI)
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• Propeller: HQ Prop 7X4X3 three-blade propeller
• Motor: SPEEDX2 2806.5 1350KV (6S version)
• GPS: GEP-M10
• Antenna: Momoda UFL LHCP Antenna
• Weight: 560.5g (MK5D-LR7 Wasp version includes 3D printed parts)
• Receiver Version: ELRS 2.4G
• Recommended Battery: LiPo 6S 6000mAh (6S version)

Applications

This drone is ideally suited for long-range FPV exploration, high-definition aerial cinematography, and advanced FPV freestyle flying. Its robust build and advanced features also make it suitable for UAV applications requiring reliable performance and stable video transmission.

Compatibility

The GEPRC MK5D-LR7 supports a variety of action cameras including the full GoPro series, Naked GoPro 8, Insta 360 GO2, and Caddx Peanut. It is designed to work with LiPo 6S 6000mAh batteries. The ELRS 2.4G receiver version ensures compatibility with ExpressLRS radio systems.

FAQ

What is the GEPRC MK5D-LR7 HD Wasp drone best suited for?

The GEPRC MK5D-LR7 HD Wasp drone is best suited for long-range FPV flights, aerial cinematography, and advanced FPV freestyle. Its robust build and high-definition video capabilities make it ideal for exploration and capturing smooth, stable footage.

What makes the DJI O3 VTX system on this drone stand out?

The integrated DJI O3 VTX system offers a crystal-clear HD video feed, a stable signal with low latency, and the ability to record footage up to 4K resolution at 120fps. This ensures excellent visual quality during flight and for recordings.

How long can the GEPRC MK5D-LR7 drone fly?

With the recommended GEP-VTC6-6000mAh LiPo 6S battery, the drone can achieve flight times of up to 30 minutes. When carrying a GoPro 10, the flight time is approximately 20 minutes.

Can I tune the drone's parameters wirelessly?

Yes, the GEPRC MK5D-LR7 features built-in Bluetooth connectivity, allowing you to wirelessly connect to your mobile phone for convenient tuning of the drone's parameters.

Where can I buy the GEPRC MK5D-LR7 HD Wasp FPV drone with fast delivery?

You can buy the GEPRC MK5D-LR7 HD Wasp FPV drone at HTDRONE. We offer fast shipping within Poland and reliable international delivery via DHL. Check our store for the best deals and pricing.
