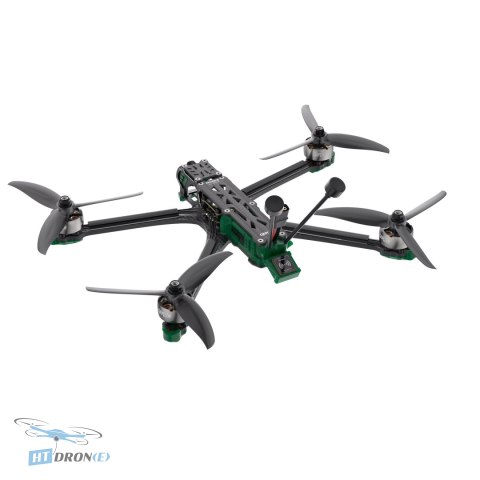

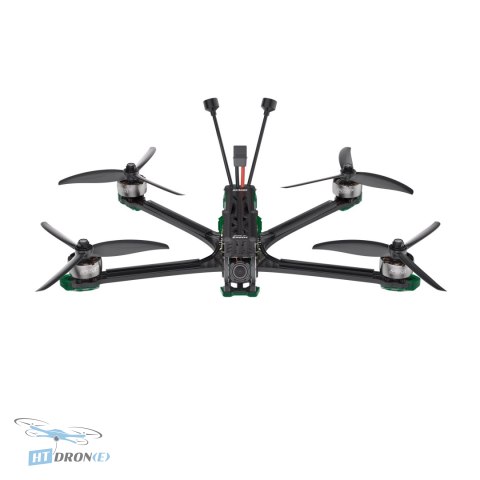

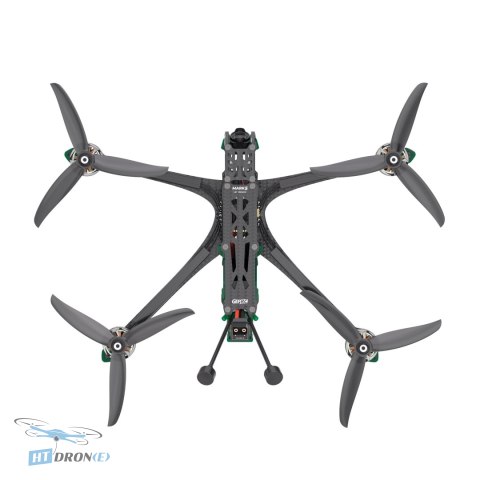

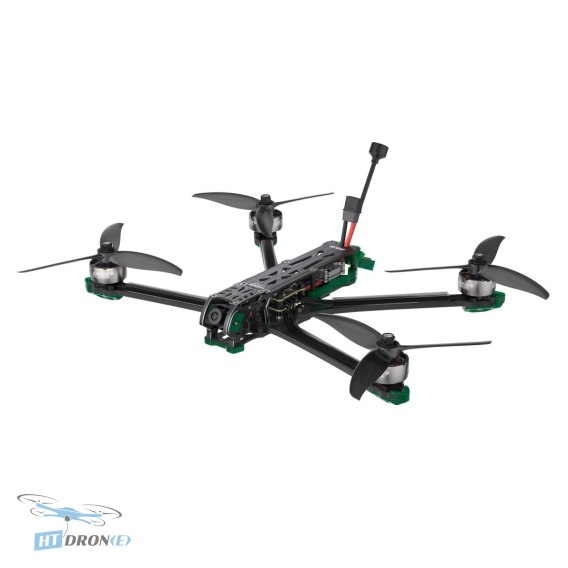

GEPRC MK5D-LR7 HD Wasp GPS TBS FPV Drone - Long Range, DJI O3 HD System

Introduction

The GEPRC MK5D-LR7 HD Wasp is an upgraded 7-inch FPV drone, evolving from the popular MARK5 model. This long-range series drone is engineered for pilots who demand superior performance, durability, and high-definition aerial imaging. It combines robust construction with cutting-edge technology, including the latest DJI O3 Air Unit, making it ideal for extended flights and professional-grade recording.

Key advantages

• Enhanced durability with an upgraded aluminum alloy side plate and strengthened arm design.
• Integrated Bluetooth enables convenient wireless parameter tuning via mobile phone.
• Experience stunning visuals with the new DJI O3 HD VTX, offering clear images, stable signals, low latency, and 4K/120fps recording capabilities.
• Unique frame shock absorption design minimizes vibrations for a stable electronic system environment.
• Versatile mounting options support a wide range of cameras including GoPro, Naked GoPro 8, Insta 360 GO2, and Caddx Peanut for stable, clear recording.
• Extended flight times: up to 30 minutes with a 6S 6000mAh battery, and 20 minutes with a GoPro 10.
• Independent capacitor and buzzer compartments ensure a stable operating environment.
• Optimized for long-range FPV flights with reliable TBS Crossfire integration.

Technical specifications

• Model: MK5D-LR7
• Brand: GEPRC
• Frame: GEP-MK5D-LR7
• Dimensions: 230mm×350mm
• Wheelbase: 335mm
• Top Plate: 2.5mm
• Bottom Plate: 2.5mm
• Arm Plate: 6.0mm
• FC System: SPAN F722-BT-HD V2
• MCU: STM32F722
• IMU: ICM：42688-P (SPI)
• OSD: BetaFlight OSD with AT7456E chip
• ESC: SPAN G50A BLHeli_32 4IN1 50A 4-6S ESC
• Propeller: HQ Prop 7X4X3 Tri-Blade
• Motor: SPEEDX2 2806.5 1350KV (6S Version)
• GPS: GEP-M10
• Antenna: Momoda Antenna UFL LHCP
• Weight: 560.5g (MK5D-LR7 Wasp version includes 3D printed parts)
• Receiver Version: TBS NanoRX
• Recommended Battery: LiPo 6S 6000mAh (6S version)

Applications

This GEPRC MK5D-LR7 HD drone is designed for advanced FPV pilots engaged in long-range exploration, cinematic aerial videography, and capturing high-quality footage. Its robust build and advanced features make it suitable for capturing stable, clear video with action cameras like GoPro and for immersive FPV flights over extended distances.

Compatibility

Compatible with GoPro cameras (including Naked GoPro 8), Insta 360 GO2, and Caddx Peanut via included mounting options. Supports 6S LiPo batteries. Features TBS NanoRX for reliable radio control link.

FAQ

What makes the GEPRC MK5D-LR7 HD Wasp suitable for long-range FPV flights?

The GEPRC MK5D-LR7 HD Wasp is designed for long-range FPV with its stable airframe, efficient SPEEDX2 2806.5 1350KV motors, and reliable TBS NanoRX receiver. It also boasts extended flight times, up to 30 minutes with a 6S 6000mAh battery, allowing for greater exploration.

Can I record high-quality video with the GEPRC MK5D-LR7 HD Wasp?

Yes, the MK5D-LR7 HD Wasp features the new DJI O3 Air Unit, which provides a clear FPV feed and supports recording up to 4K resolution at 120fps. Its unique shock absorption design further ensures stable and clear footage, especially when mounting cameras like GoPro.

What cameras are compatible with the GEPRC MK5D-LR7 HD Wasp?

This drone offers versatile mounting options for various cameras, including the full range of GoPro cameras, Naked GoPro 8, Insta 360 GO2, and Caddx Peanut. This allows for flexible aerial videography setups.

Does the GEPRC MK5D-LR7 HD Wasp have wireless tuning capabilities?

Yes, the MK5D-LR7 features built-in Bluetooth connectivity, allowing you to wirelessly connect to your mobile phone for convenient parameter tuning without needing to connect directly via USB.

Where can I buy the GEPRC MK5D-LR7 HD Wasp FPV drone with fast delivery?

You can order the GEPRC MK5D-LR7 HD Wasp FPV drone directly from HTDRONE. We are based in Poland and offer fast shipping within Poland and reliable worldwide delivery via DHL to ensure you receive your order quickly.
