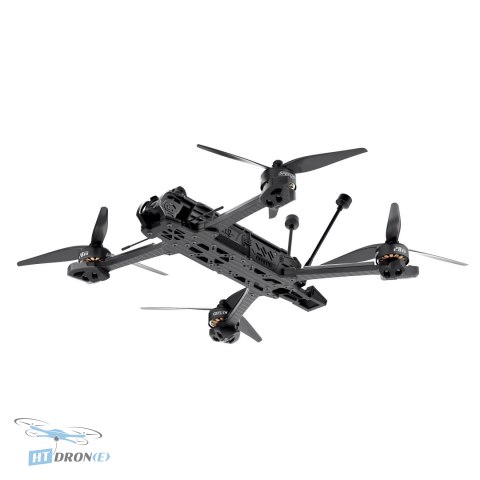

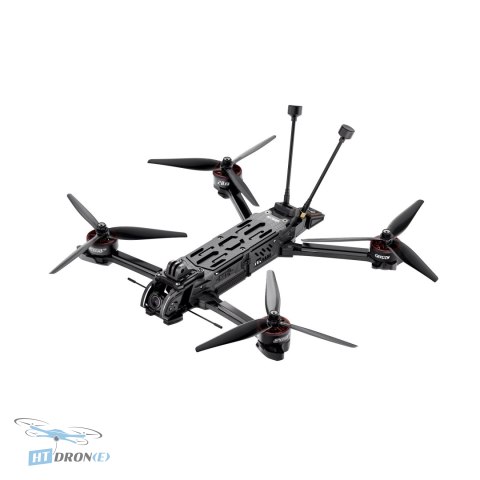

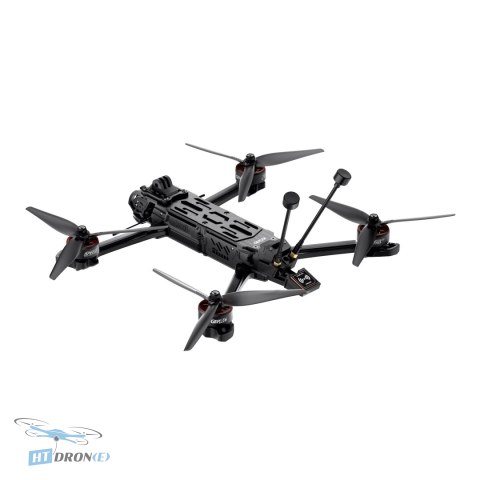

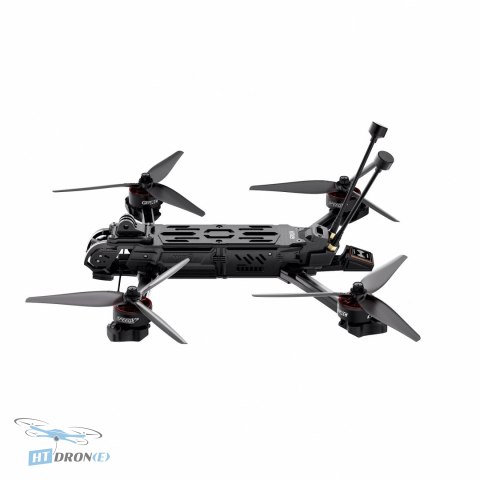

GEPRC MOZ7 RAD 1.6W GPS ELRS 2.4G Long Range FPV Drone

Introduction

The GEPRC MOZ7 is a high-performance FPV drone designed for serious long-range exploration and flight. Built on the robust GEP-MOZ7 frame, this drone is optimized for stability, power, and extended flight times, making it an ideal choice for pilots who demand reliability and endurance in their FPV adventures. It offers compatibility with various VTX systems and custom cooling solutions, ensuring peak performance even during demanding flights.

Key Advantages

• Exceptional flight endurance with up to 30 minutes using the GEP-VTC6-6000mAh battery.
• Powerful propulsion system featuring 2809-1280KV motors and HQ7.5*3.7*3 propellers.
• Integrated GEP-M10-DQ GPS for enhanced navigation and flight safety during long-range missions.
• Versatile camera mounting system supporting both 19mm and 20mm camera sizes.
• Advanced SPAN F722-BT-HD V2 flight controller with Bluetooth parameter tuning.
• High-power GEPRC RAD 5.8G 1.6W VTX for a clear video feed.
• Reliable ELRS 2.4G receiver with a strategically placed antenna to prevent signal blockage.
• Durable construction with 6mm arm plates and 3mm top/bottom plates for resilience.

Technical Specifications

• Model: MOZ7
• Frame: GEP-MOZ7
• Dimensions: 280mm x 310mm
• Wheelbase: 320mm
• Top Plate: 3.0mm
• Bottom Plate: 3.0mm
• Arm Plate: 6.0mm
• Rail Plate: 3.0mm
• Camera Mount: 2.0mm
• VTX Cover: 1.5mm
• FC: SPAN F722-HD-BT V2
• MCU: STM32F722
• Gyro: 42688-P (SPI)
• VTX: GEPRC RAD 5.8G & 1.6W
• ESC: GEP-BLheli32-50A
• Propeller: HQ7.5*3.7*3
• Antenna: Momoda 5.8G RP-SMA RHCP 120MM
• Motor: 2809-1280KV (6S version)
• GPS: GEP-M10
• Camera: Caddx Ratel2
• Weight: 675.5g
• Receiver: ELRS 2.4G
• Recommended Battery: VTC6 6S 6000mAh / LiPo 6s 3300mAh

Applications

This FPV drone is perfectly suited for long-range flights, aerial photography, cinematic FPV, and extended exploration missions. Its robust build and advanced features also make it suitable for advanced freestyle piloting who require a stable and powerful platform.

Compatibility

The MOZ7 supports a maximum 30.5mm x 30.5mm stack installation and is compatible with various VTX systems. Its innovative camera mounting allows switching between 19mm and 20mm sizes. It is recommended to use a VTC6 6S 6000mAh or LiPo 6s 3300mAh battery for optimal performance.

FAQ

What is the maximum flight time of the GEPRC MOZ7 drone?

The GEPRC MOZ7 drone can achieve up to 30 minutes of flight time when equipped with the recommended GEP-VTC6-6000mAh battery. This extended duration makes it ideal for long-range exploration.

What FPV system does the GEPRC MOZ7 drone use?

The GEPRC MOZ7 drone features the GEPRC RAD 5.8G 1.6W VTX for a powerful video transmission system and an ELRS 2.4G receiver for reliable control link.

Does the GEPRC MOZ7 drone include GPS?

Yes, the GEPRC MOZ7 drone is equipped with a GEP-M10-DQ GPS module, which is crucial for navigation and safety during long-range flights.

What are the key advantages of the GEPRC MOZ7 over other long-range drones?

Key advantages include its powerful 2809 motors, extended flight time up to 30 minutes, integrated GPS for navigation, and a versatile camera mounting system. Its robust frame design also ensures durability.

Where can I buy the GEPRC MOZ7 FPV drone in Europe?

You can buy the GEPRC MOZ7 FPV drone at HTDRONE, an FPV and UAV drone parts store based in Poland. We offer fast shipping within Poland and worldwide delivery via DHL.
